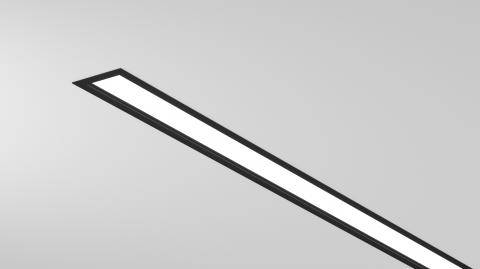

Block Slim™
Product Overview

With a lens only 2” in width, BLOCK SLIM is our narrowest linear recessed yet.  BLOCK SLIM Recessed offers a slimline aesthetic that does not compromise on performance and delivers up to 135 lumens per watt.  Standalone lengths up to 12’ are available, as well as continuous runs up to 50’ on a single circuit. Use a combination of lengths to create digital-age design effects on the ceiling or long lines of light for ambient illumination or wayfinding.

Features

Body

Aluminum.

Finish

Powder coated.

Diffuser

Opal acrylic.

Drivers

HPF electronic drivers for 120-277V, 347V (EU-240V).

Reported L70 @25°C (77°F)

>108000 hrs @1400 lms/ft (4600 lm/m)

PoE

Can be integrated into your data network via Power over Ethernet (PoE) connectivity.

Estimated L70 @25°C (77°F)

>196000 hrs @1400 lms/ft (4600 lm/m)

Delivered lumens

Delivered lumens & LPW based on 4000K CRI 80+

Remote emergency

Emergency option provides a 1.5 hour (3hours for EU) emergency lighting facility. The remote system includes the inverter module, NiCad batteries and a remote wall/ceiling LED charge indicator and test switch. Maximum distance between wall/ceiling plate and luminaire is 15' (4.5m). Test switch fits a single gang box (not supplied).

Approvals

Damp Location (Indoor use only).

Design

US Design Patent Pending.

Mounting and Optics

Icon for Recessed Recessed
Icon for Direct DD4 Direct DD4
Icon for PoE PoE

Downloads

Approvals

  • ETL
  • CE
  • Grounding
  • Damp Location (Indoor Use)
  • Mounting Suited On Flammable Surfaces
  • IP 20
