Kurl™

General Specification

Product Overview:

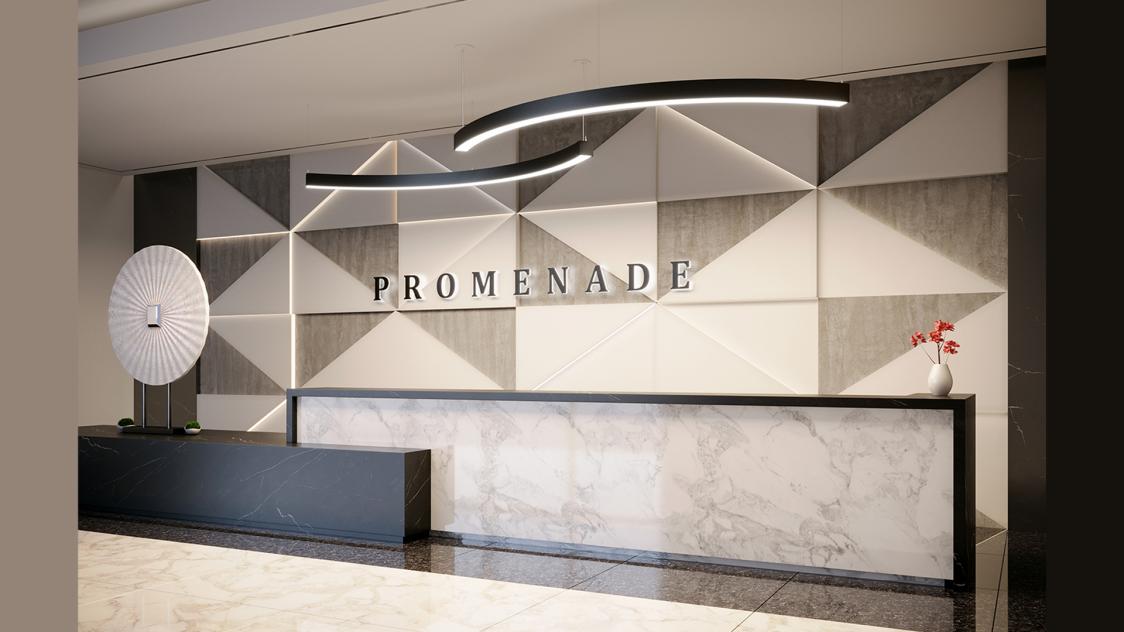

KURL deviates from the classic geometries of straight lines and circles. Available in 4 radii ranging from 42” to 72”, with either a 90° or 120° curve, the interrupted ring brings subtle whimsy to linear lighting, especially when staggered at different angles.

Body and trim: Steel and aluminum.

Finish: Powder coated for standard finishes (black, Silver Metallic & white).  For wood grain finishes, canopy will be white.

Suspension: Steel cables. Recommended minimum mounting heights from ceiling: 305mm/12" for White LEDs and 610mm/24" for Colored LEDs (Only for Direct/Indirect version).

Power cable: Silver braided.

Diffusers: Opal polycarbonate direct/Clear polycarbonate indirect.

Drivers: Integral, HPF electronic drivers for 120-277V (EU-240V).

PoE: Kurl can integrate into your data network via Power over Ethernet (PoE) connectivity.

Mechanical: Luminaires mount directly over J box (by others - North America only).

Integral Emergency system: Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The self contained system includes the inverter module, NiCad batteries, LED charge indicator and test switch (NA only). Not available with a 347V supply.

L70 @25oC: > 50,000 hrs.

Delivered Lumens: Delivered lumens & LPW based on 4000K (min 80 CRI) for White LEDs only.

Approvals: Damp Location (Indoor use only).

For RGBW inquires - consult factory

Mounting and Optics

Icon for Suspended Direct Suspended Direct
Icon for Suspended Direct/Indirect Suspended Direct/Indirect
Icon for Direct Direct
Icon for Direct-indirect Direct-indirect
Icon for PoE PoE

Downloads

Approvals

  • ETL
  • CE
  • Grounding
  • Damp Location (Indoor Use)
  • Mounting Suited On Flammable Surfaces
  • IP 20

Share this fixture

Configurator

You selected

Finish

Note:  The canopy will be white for fixtures with the wood grain finishes Z1 or Z2

Optional Low Voltage
