Micro Ring DE™

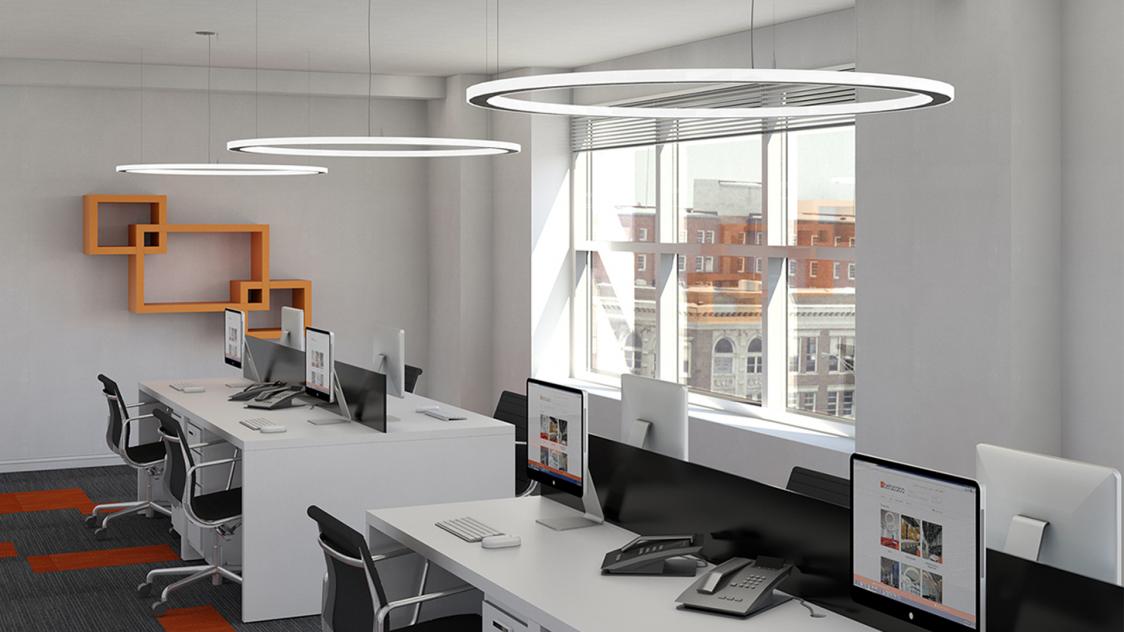

With a super slim profile and 6 diameters ranging from 2’ to 12’, MICRO RING DE is ideal for creating sizable multi-tiered circular arrangements. The ring emits light from the inside and the outside of the frame and can be coordinated with 5 other emission options in the MICRO RING family for creating multiple layers of light. Buoyant and energetic, MICRO RING DE is just as impactful as a single standalone piece, especially when illuminated with red, green, or blue color options. MICRO RING DE is available with an acoustic panel up to 8’ in diameter. With light emission coming from the inner ring, the acoustic panel is illuminated, creating another decorative dimension. Acoustic panels are designed to absorb echo and reverberation associated with open-concept spaces, exposed concrete, open ceilings, and large windows.

Features

Body

Aluminum.

Finish

Powder coated.

Suspension

Stainless steel cables.

Power cable

Silver braided.

Remote Emergency

Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The remote system includes the inverter module, NiCad batteries and a remote wall/ceiling LED charge indicator and test switch (NA only) Maximum distance between wall/ceiling plate and luminaire is 4.5m/15’. Test switch fits a single gang box (not supplied).

Remote Mounting Of Drivers

Wire size 18 AWG - max distance (from fixture to drivers) 40', wire size 16 AWG - max distance 60', wire size 14 AWG - max distance 90'. Drivers must be accessible after installation.

Drivers

HPF electronic drivers for 120-277V (EU-240V).

Diffuser

Protruding Lens (2.1mm/0.08").

PoE

Micro Ring DE can integrate into your data network via Power over Ethernet (PoE) connectivity.

Mechanical

Luminaires attached directly to the J box (by others - North America only).

L70 @25°C

> 60,000 hrs.

Delivered Lumens

Delivered lumens & LPW based on 4000K (min 80 CRI) for White LEDs only.

Acoustic Panels NRC Rating

0.80.

Acoustic Panels Class A Fire Rating

ASTM E-84 material.

Acoustic Panels Material

100% recycled polyester fiber (PET).

Acoustic Panels Thickness

12mm (0.5").

Approvals

Damp Location (Indoor use only).

Mounting and Optics

Icon for Suspended Inside/Outside Suspended Inside/Outside
Icon for Acoustic Acoustic
Icon for General Diffuse General Diffuse
Icon for PoE PoE

Downloads

Approvals

  • ETL
  • CE
  • Grounding
  • Damp Location (Indoor Use)
  • Mounting Suited On Flammable Surfaces
  • IP 20
