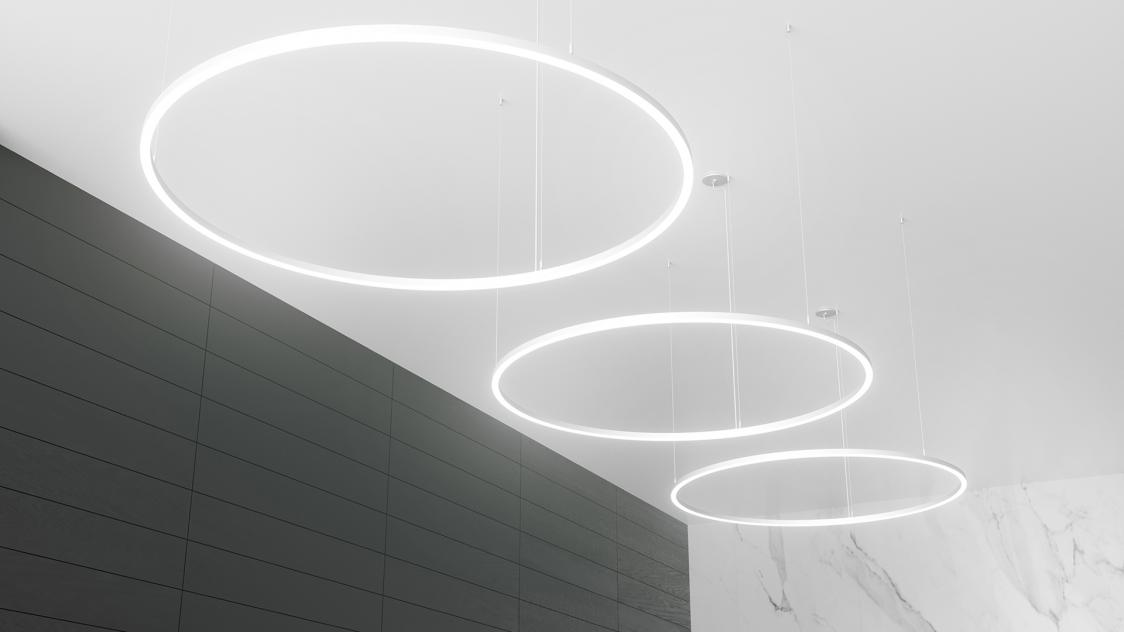

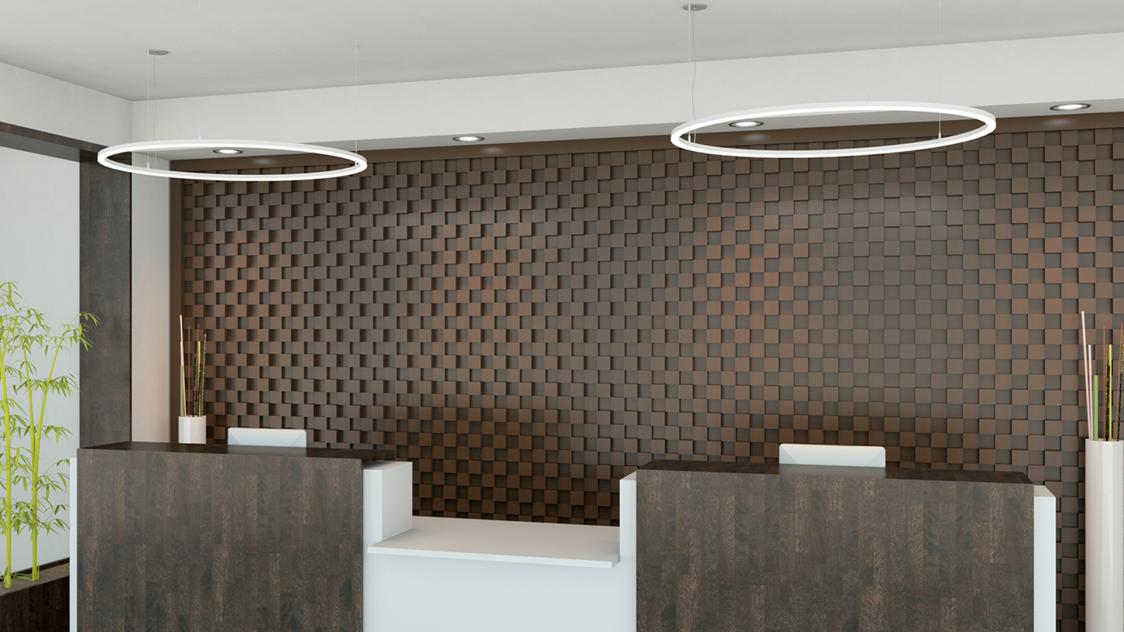

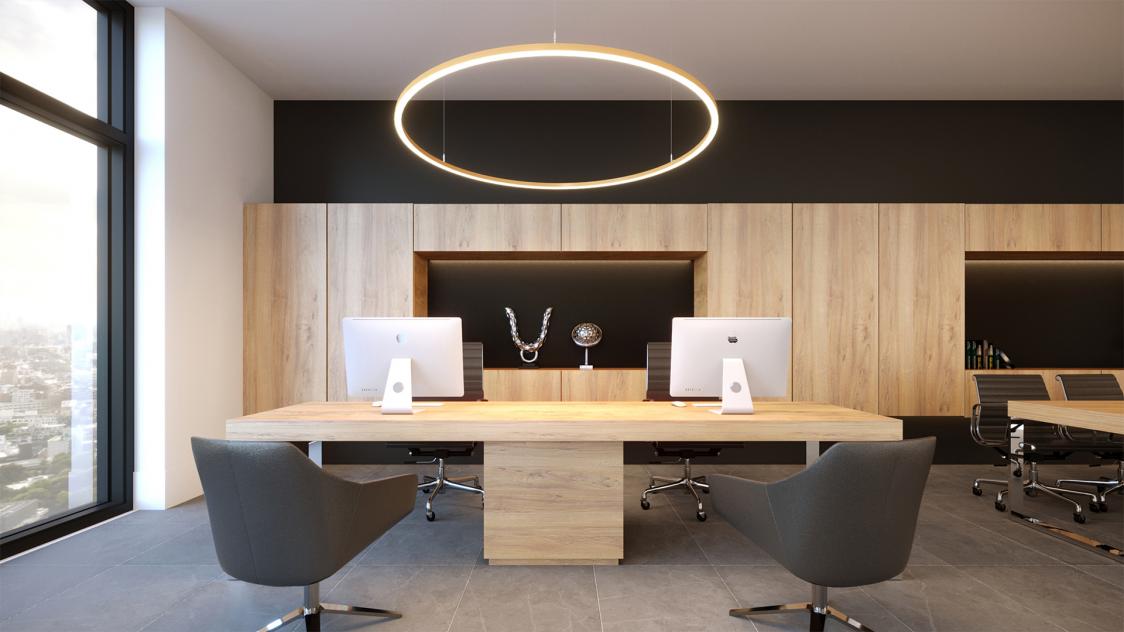

With a super slim profile and 6 diameters ranging from 2’ to 7’, MICRO RING DIRECT is ideal for creating sizable multi-tiered circular arrangements. The ring emits direct light only and can be coordinated with 5 other emission options in the MICRO RING family for creating light layers. Buoyant and energetic, MICRO RING DIRECT is just as impactful as a single standalone piece. For sound comfort, MICRO RING DIRECT is available with an acoustic panel designed to absorb echo and reverberation associated with open-concept spaces, exposed concrete, open ceilings, and large windows. For a whimsical style, combine MICRO RING with MICRO TRIANGLE or MICRO QUAD.
Aluminum.
Powder coated.
Steel cables.
Silver braided.
Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The remote system includes the inverter module, NiCad batteries and a remote wall/ceiling LED charge indicator and test switch (NA only) Maximum distance between wall/ceiling plate and luminaire is 15' (4.5m). Test switch fits a single gang box (not supplied).
Remote, HPF electronic drivers for 120-277V (EU-240V) dimming. Wire size 18 AWG - max distance (from fixture to drivers) 40' (12.2m), wire size 16 AWG - max distance 60' (18.3m), wire size 14 AWG - max distance 90' (27.4m). Drivers must be accessible after installation. Drivers are either remote mounted or integral to the canopy depending on the size of the fixture.
Luminaires mount directly over J box (by others - North America only).
Integrates into your data network via Power over Ethernet (PoE) connectivity.
Protruding Lens 0.08" (2.1mm).
ASTM E-84 material.
0.80
100% recycled polyester fiber (PET).
12mm (0.5")
> 60,000 hrs.
Delivered lumens & LPW based on 4000K (min 80 CRI).
Damp Rated.
Suspended Direct
Declare
PoE
