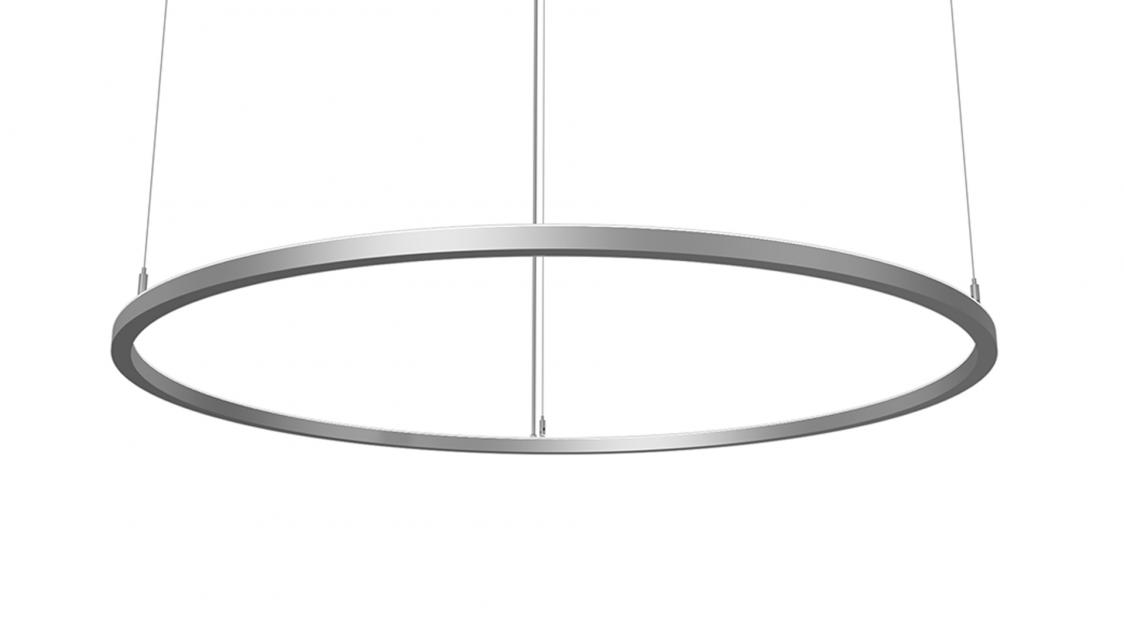

Micro Ring Indirect™
Suspended

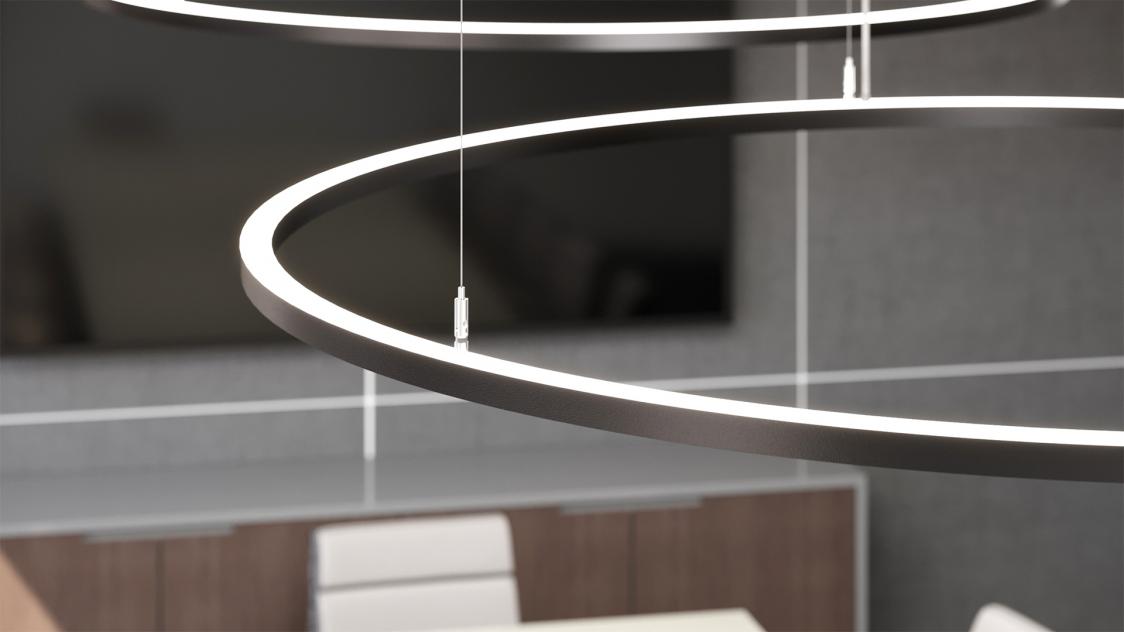

With a super slim profile and 6 diameters ranging from 2’ to 7’, MICRO RING INDIRECT is ideal for creating sizable multi-tiered circular arrangements. The ring emits indirect light only and can be coordinated with 5 other emission options in the MICRO RING family for creating light layers. Buoyant and energetic, MICRO RING INDIRECT is just as impactful as a single standalone piece, especially with the halo effect created from the uplight. For sound comfort, MICRO RING INDIRECT is available with an acoustic panel designed to absorb echo and reverberation associated with open-concept spaces, exposed concrete, open ceilings, and large windows.

Features

Body and trim

Aluminum.

Finish

Powder coated.

Suspension

Stainless steel cables.

Power cable

Silver braided.

Remote Emergency

Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The remote system includes the inverter module, NiCad batteries and a remote wall/ceiling LED charge indicator and test switch (NA only) Maximum distance between wall/ceiling plate and luminaire is 4.5m/15’. Test switch fits a single gang box (not supplied).

Remote Mounting Of Drivers

Wire size 18 AWG - max distance (from fixture to drivers) 40', wire size 16 AWG - max distance 60', wire size 14 AWG - max distance 90'. Drivers must be accessible after installation. .

PoE

Micro Ring Indirect can integrate into your data network via Power over Ethernet (PoE) connectivity.

Mechanical

Luminaires mount directly over J box (by others - North America only).

Diffuser

Protruding Lens (2.1mm/0.08").

Drivers

HPF electronic drivers for 120-277V. Drivers are either remote mounted or integral to the canopy depending on the size of the fixture.

L70 @25°C (77°F)

> 60,000 hrs.

Delivered Lumens

Delivered lumens & LPW based on 4000K (min 80 CRI) for White LEDs only.

CRI

Fixture supplied at 80 CRI, 90 CRI available upon request.

Approvals

Damp Rated.

Mounting and Optics

Icon for Suspended Indirect Suspended Indirect
Icon for Acoustic Acoustic
Icon for Indirect Indirect
Icon for Declare Declare
Icon for PoE PoE

Downloads

Approvals

  • ETL
  • CE
  • Grounding
  • Damp Location (Indoor Use)
  • Mounting Suited On Flammable Surfaces
  • IP 20
