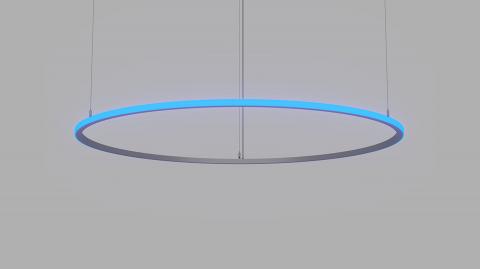

Micro Ring™ SE

Outside

WEB PIN™225

General Specification

Body: Aluminum.

Finish: Powder coated.

Suspension: Stainless steel cables.

Power cable: Silver braided.

Diffuser: Protruding Lens (2.1mm/0.08").

Drivers: HPF electronic drivers for 120-277V (EU-240V), 0-10V, 1% dimming.

Remote Mounting Of Drivers: Wire Size 18 AWG - Max distance (from canopy to drivers) 9.5', Wire size 16 AWG - Max distance 19.5', Wire size 14 AWG - Max distance 29.5'. Drivers must be accessible after installation.

Remote Emergency: Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The remote system includes the inverter module, NiCad batteries and a remote wall/ceiling LED charge indicator and test switch (NA only) Maximum distance between wall/ceiling plate and luminaire is 4.5m/15’. Test switch fits a single gang box (not supplied).

Mechanical: Luminaires mount directly over J box (by others - North America only).

L70 @25oC: > 50,000 hrs.

Delivered Lumens: Delivered lumens & LPW based on 3000K (min 80 CRI) for White LEDs only.

Approvals: Damp Location (Indoor use only).

See Approvals

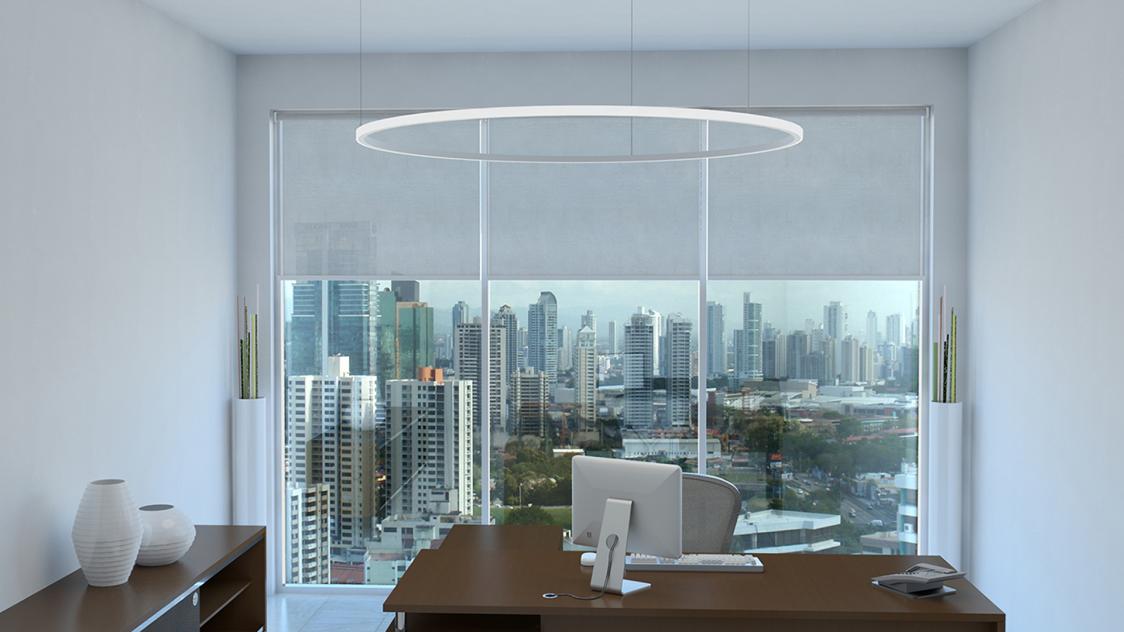

Interior - Suspended-Outside

specify luminaire

Code: Diameter (A): Power (LED): Delivered lms: LPW: Suspension Points:
660mm/26" 28W 1680 60 3
914mm/36" 36W 2160 60 3
1219mm/48" 50W 3000 60 3
1524mm/60" 61W 3660 60 3
1829mm/72" 75W 4501 60 6
2134mm/84" 90W 5399 60 6

Specify CCT/Color

Specify Suspension

Specify Finish

Specify Lumen & Wattage Reduction

Note: Custom Reduction Percentages Available Upon Request.
