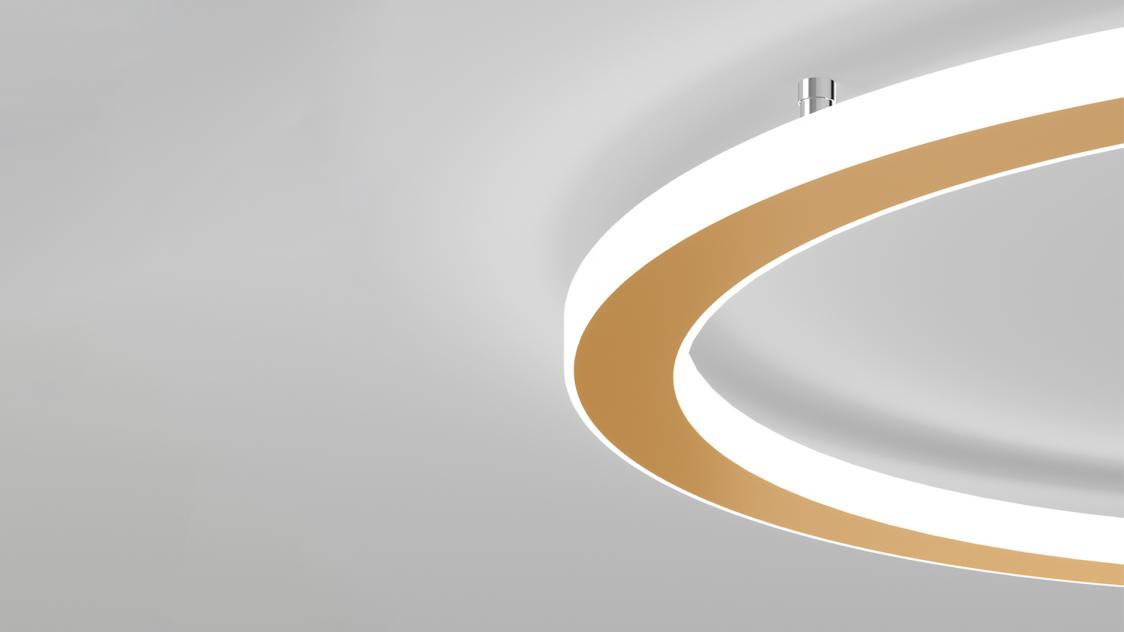

Micro Ring DE™

Inside/Outside

General Specification

Body and trim: Aluminium.

Finish: Powder coated.

Diffuser: Protruding Lens (2.1mm/0.08").

Drivers: Remote, HPF electronic drivers for 120-277V (EU-240V), Wire size 18 AWG - max distance (from fixture to drivers)40', wire size 16 AWG - max distance 60', wire size 14 AWG - max distance 90'. Drivers must be accessible after installation.

Remote Emergency: Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The remote system includes the inverter module, NiCad batteries and a remote wall/ceiling LED charge indicator and test switch (NA only) Maximum distance between wall/ceiling plate and luminaire is 4.5m/15’. Test switch fits a single gang box (not supplied).

PoE:  Micro Ring DE can integrate into your data network via Power over Ethernet (PoE) connectivity.

L70 @25oC: > 60,000 hrs.

Delivered Lumens: Delivered lumens & LPW based on 4000K (min 80 CRI) for White LEDs only.

See Approvals

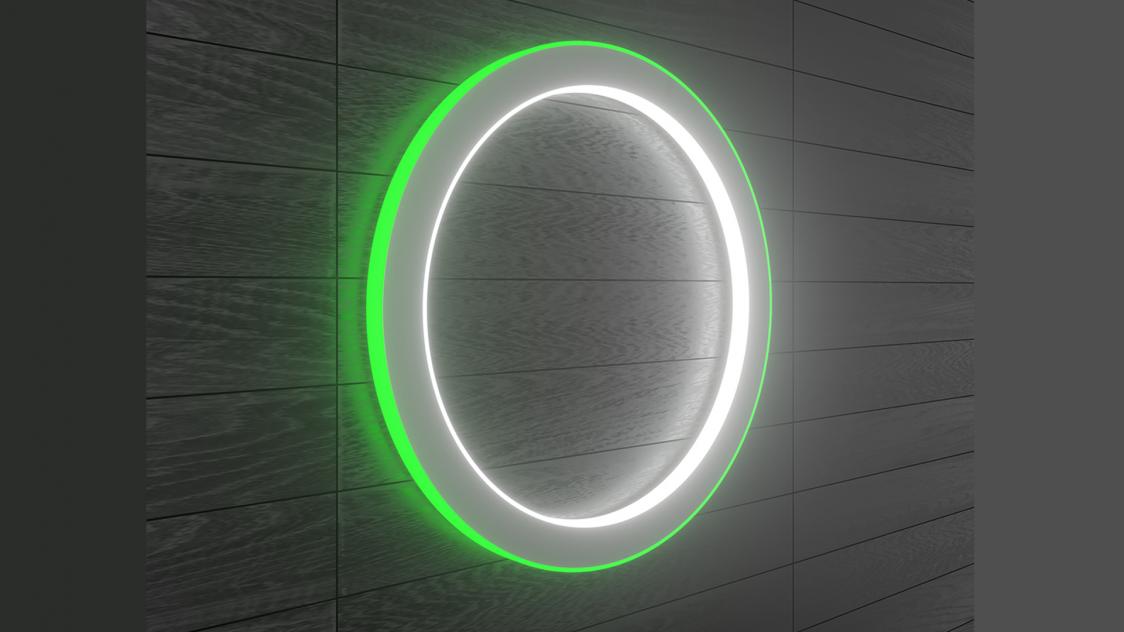

Ceiling Inside/Outside Wall Inside/Outside General Diffuse PoE

Specify Luminaire

Luminaire
Code Diameter (A) Power (LED) Delivered lms LPW Mounting Points
26" 46W 2801 61 3
36" 66W 4019 61 3
48" 87W 5297 61 3
60" 111W 6759 61 3
72" 137W 8373 61 4

Specify CCT/Color (Outside)

CCT/Color (Outside)
3000K (min 80 CRI)
3500K (min 80 CRI)
4000K (min 80 CRI)
Red
Green
Blue

Specify CCT/Color (Inside)

CCT/Color (Inside)
3000K (min 80 CRI)
3500K (min 80 CRI)
4000K (min 80 CRI)
Red
Green
Blue

Specify Dimming (Remote Only)

Dimming
0-10V Dimming 1.0%
DALI Dimming 0.1%
DALI Dimming 1.0%
PoE

Specify Finish

Finish
Black
Silver Metallic
White

Specify Lumen & Wattage Reduction

Note: Custom Reduction Percentages Available Upon Request.

Lumen Reduction
Lumen & Wattage Reduction to approximately 25% of standard output
Lumen & Wattage Reduction to approximately 50% of standard output
Lumen & Wattage Reduction to approximately 75% of standard output

Specify Options

Specify Surface Mounting Kits

Note:  BJ2 & BJ3 are standard, BK2 & BK3, optional

Surface Mounting Kits
Surface mounting kit 1.25" extension c/w 3 spacers
Surface mounting kit 2.75" extension c/w 3 spacers
Surface mounting kit 1.25" extension c/w 4 spacers
Surface mounting kit 2.75" extension c/w 4 spacers
