Micro Ring™

General Specification

Body and trim: Aluminium.

Finish: Powder coated.

Diffusers: Protruding Lens (2.1mm/0.08").

Drivers: Remote, HPF electronic drivers for 120-277V (EU-240V). Wire size 18 AWG - max distance (from fixture to drivers)40', wire size 16 AWG - max distance 60', wire size 14 AWG - max distance 90'. Drivers must be accessible after installation.

PoE: Micro Ring can integrate into your data network via Power over Ethernet (PoE) connectivity.

Remote Emergency: Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The remote system includes the inverter module, NiCad batteries and a remote wall/ceiling LED charge indicator and test switch (NA only) Maximum distance between wall/ceiling plate and luminaire is 4.5m/15’. Test switch fits a single gang box (not supplied).

L70 @25oC: > 60,000 hrs.

Delivered Lumens: Delivered lumens & LPW based on 4000K (min 80 CRI), White LEDs only.

See Approvals
Ceiling Direct Wall Direct Direct PoE

Specify Luminaire

Luminaire
Code Diameter (A) Power (LED) Delivered lms (Direct) LPW (Direct)
24" 19W 1982 104
36" 26W 2737 104
48" 35W 3650 104
60" 45W 4645 104
72" 53W 5550 104

Specify CCT/Color (Direct)

CCT/Color
3000K (min 80 CRI)
3500K (min 80 CRI)
4000K (min 80 CRI)

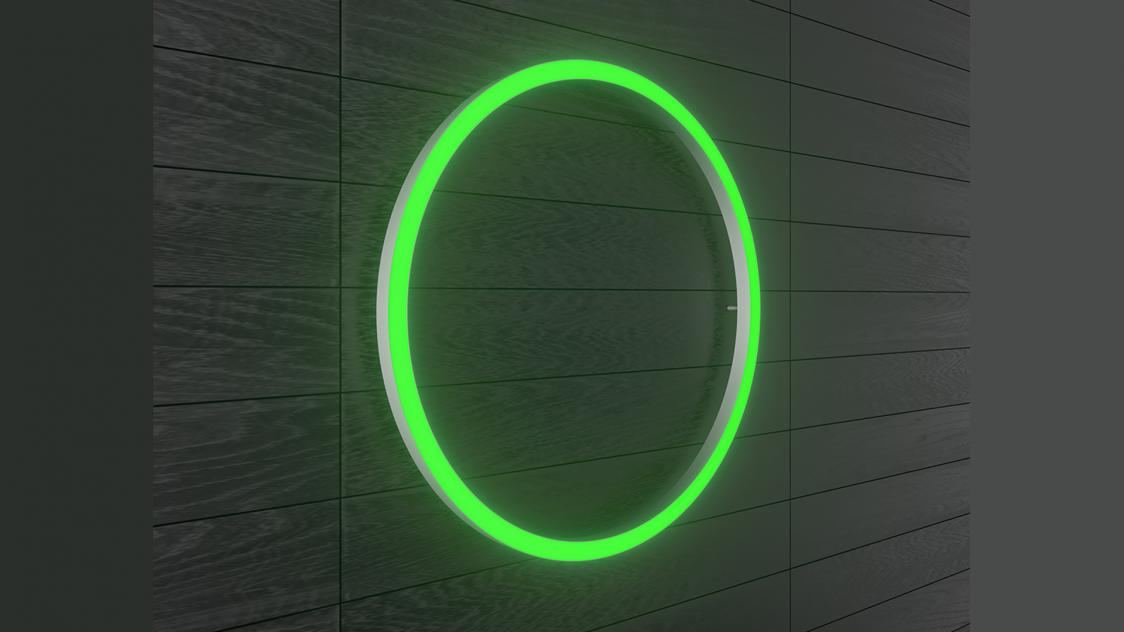

Red
Green
Blue

Specify Dimming (Remote Only)

Dimming
0-10V Dimming 1.0%
DALI Dimming 0.1%
DALI Dimming 1.0%
PoE

Specify Finish

Finish
Black
Silver Metallic
White

Specify Lumen & Wattage Reduction

PR0 is not available with 954205.  Custom reduction percentages available upon request.

Lumen Reduction
Lumen & Wattage Reduction to approximately 25% of standard output
Lumen & Wattage Reduction to approximately 50% of standard output
Lumen & Wattage Reduction to approximately 75% of standard output

Specify Options

Optional Low Voltage
