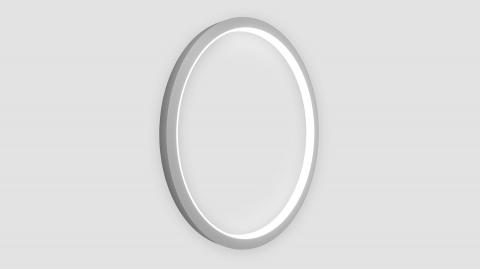

Micro Ring SE™

General Specification

Body and trim: Aluminium.

Finish: Powder coated.

Diffuser: Protruding Lens (2.1mm/0.08").

Drivers: Remote, HPF electronic drivers for 120-277V (EU-240V). Wire size 18 AWG - max distance (from fixture to drivers)40', wire size 16 AWG - max distance 60', wire size 14 AWG - max distance 90'. Drivers must be accessible after installation.

PoE: Micro Ring SE can integrate into your data network via Power over Ethernet (PoE) connectivity.

Remote Emergency: Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The remote system includes the inverter module, NiCad batteries and a remote wall/ceiling LED charge indicator and test switch (NA only) Maximum distance between wall/ceiling plate and luminaire is 4.5m/15’. Test switch fits a single gang box (not supplied).

L70 @25oC: > 60,000 hrs.

Delivered Lumens: Delivered lumens & LPW based on 4000K (min 80 CRI) for White LEDs only.

See Approvals
Ceiling Inside Ceiling Outside Wall Inside Wall Outside PoE

Specify Luminaire

Luminaire
Code Diameter (A) Power (LED) Light Distribution Delivered lms LPW Mounting Points
26" 24W Outside 1512 63 3
36" 33W Outside 2079 63 3
48" 44W Outside 2772 63 3
60" 57W Outside 3591 63 3
72" 69W Outside 4346 63 6
26" 24W Inside 1411 59 3
36" 33W Inside 1941 59 3
48" 44W Inside 2587 59 3
60" 57W Inside 3352 59 3
72" 69W Inside 4058 59 6

Specify CCT/Colour (Outside)

CCT/Color (Outside)
3000K (min 80 CRI)
3500K (min 80 CRI)
4000K (min 80 CRI)
Red
Green
Blue

Specify CCT/Color (Inside)

CCT/Color (Inside)
3000K (min 80 CRI)
3500K (min 80 CRI)
4000K (min 80 CRI)
Red
Green
Blue

Specify Dimming (Remote Only)

Dimming
0-10V Dimming 1.0%
DALI Dimming 0.1%
DALI Dimming 1.0%
PoE

Specify Finish

Finish
Black
Silver Metallic
White

Specify Lumen & Wattage Reduction

PR0 is not available with 955105 & 955205.  Custom reduction percentages available upon request.

Lumen Reduction
Lumen & Wattage Reduction to approximately 25% of standard output
Lumen & Wattage Reduction to approximately 50% of standard output
Lumen & Wattage Reduction to approximately 75% of standard output

Specify Emergency

Specify Surface Mounting Kit

Note:  BJ2 & BJ4 are standard, BK2 & BK4, optional

Surface Mounting Kit
Surface mounting kit1.25" extension c/w 3 spacers
Surface mounting kit 2.75" extension c/w 3 spacers
Surface mounting kit 1.25" extension c/w 6 spacers
Surface mounting kit 2.75" extension c/w 6 spacers 69.85mm/

Optional Low Voltage
