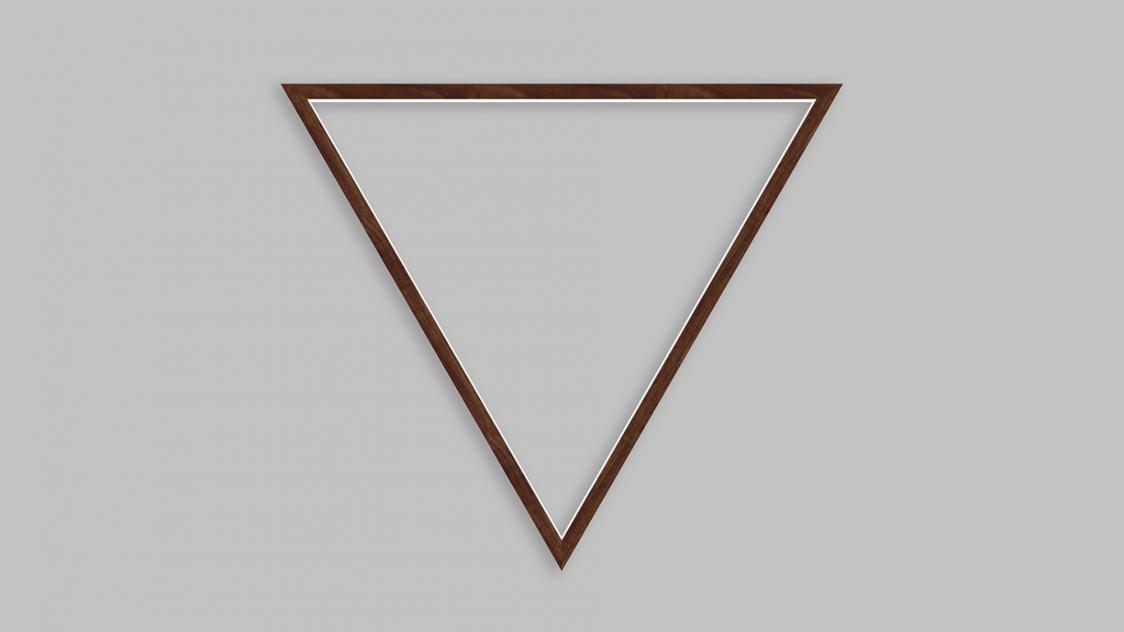

Micro Triangle SE™

WEB PIN™616

General Specification

Body: Aluminium, Equilateral Triangle

Finish: Powder coated.

Diffusers: Frosted acrylic.

Drivers: Remote, HPF electronic drivers for 120-277V (EU-240V), 0-10V, 1% dimming standard. Wire size 18 AWG - max distance (from fixture to drivers)40', wire size 16 AWG - max distance 60', wire size 14 AWG - max distance 90'. Drivers must be accessible after installation.

L70 @25oC: > 50,000 hrs.

Delivered Lumens: Delivered lumens & LPW based on 4000K (min 80 CRI) for White LEDs only.

See Approvals

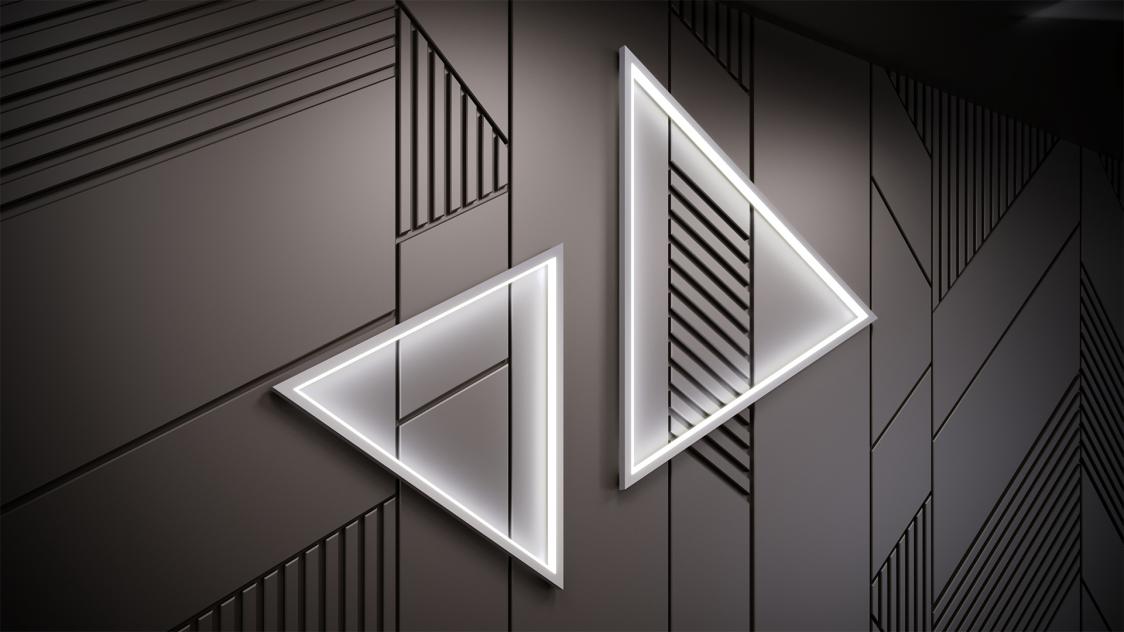

Ceiling Inside Ceiling Inside Wall Inside Wall Inside General Diffuse General Diffuse

Specify Luminaire

Code Length Power (LED) Light Direction Delivered lms LPW Mounting Points
610mm/24" 16W Inside 1856 116 3
915mm/36" 24W Inside 2907 121 3
1219mm/48" 32W Inside 3839 120 3

Specify CCT/Color

Specify Finish

Note:  The canopy will be white for fixtures with the wood grain finishes Z1 & Z2.

Specify Lumen & Wattage Reduction

PR0 not available for 984310 & 984320.  Note: Custom reduction percentages available upon request.

Specify Surface Mounting Kit

Note:  BJ2 is standard, BK2 is optional

You selected

BJ2
Micro Triangle SE™

Product Info

Select all
  • specification sheet
  • ies files
  • ldt files
  • BIM FILES
  • dimensional diagrams
  • product images
  • brochures
