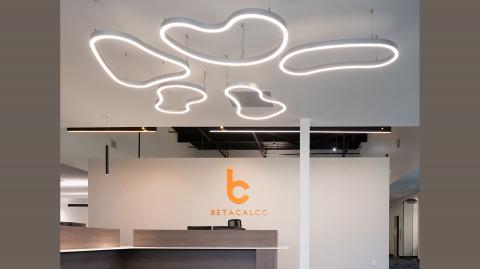

Buoyant and cheerful, PUZZLE is a collection of curvilinear pendants consisting of 5 organic shapes each with 3 sizes. What these shapes are is an enigma left open to the individual’s imagination and designed for creating remarkable configurations that complement a variety of design themes.
Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The remote system includes the inverter module, NiCad batteries and a remote wall/ceiling LED charge indicator and test switch (NA only) Maximum distance between wall/ceiling plate and luminaire is 15'/4.5m. Test switch fits a single gang box (not supplied).
Wire Size 18 AWG - Max distance (from fixture to drivers) 40' (12.2m), Wire size 16 AWG - Max distance 60' (18.3m), Wire size 14 AWG - Max distance 90 (27.4m). Drivers must be accessible after installation.
HPF electronic drivers for 120-277V, 37V (EU-240V).
Protruding Lens (0.9"/2.1mm).
Luminaires mount directly over J box (by others - North America only).
Delivered lumens & LPW based on 4000K (min 80 CRI).
> 50,000 hrs.
D827909, D827187, D827908, D828611, D827907.
