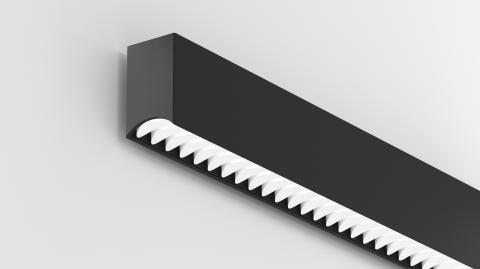

OOOOH dazzles up traditional linear lighting concepts with an innovative louver system. An array of ellipses is incurved to conform to a tunnel-shaped profile creating a subtle aesthetic and sublime lighting effect. The louver system not only tempers the starkness of the commonly exposed diffuser and adds an enchanting decorative feature, but also offers visual comfort by minimizing glare. The injection-molded louvers come in 5 finishes: Black for the highest glare control, White for higher reflectance and performance, and for an interior design enhancement, satinized finishes Satin Chrome, Satin Gold, and Satin Champagne. Ooooh presents a simple way to transform a functional light into a luxurious design feature.
Tech Specs
Body
Finish
Powder coated.
Diffuser
Opal acrylic.
Mechanical
Luminaires mount directly over J box (by others).
PoE
Can be integrated into your data network via Power over Ethernet (PoE) connectivity.
BIOS
For circadian lighting, consult factory.
Drivers
HPF electronic drivers for 120-277V, 347V (EU-240V). The driver is integral to the fixture housing.
Delivered lumens
Delivered lumens & LPW based on 4000K CRI 80+
Integral Emergency system
Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The self contained system includes the inverter module, NiCad batteries, LED charge indicator and test switch (NA only). Not available with a 347V supply.
Sensors
Compatible with Avi-On, Casambi, Enlighted, Lutron Vive, nLight, NX Lighting Controls, Osram, Philips, and others. Consult factory.
Reported L70 @25°C (77°F)
> 60,000 hrs @ 2000 lumens/ft (6000 lumens/m)
Estimated L70 @25°C (77°F)
> 165,000 hrs @ 2000 lumens/ft (6000 lumens/m)
Tunable White
Tunable white available, consult factory.
Approvals
Damp Rated.
Designed by
Serge Cornelissen.
Design
US Pat. No. D969,395.
Approvals
Mounting & Optics
Wall - up/down
Direct DD1
Direct DD4
Indirect UD2
Indirect UD3
Bios
Declare
PoE
