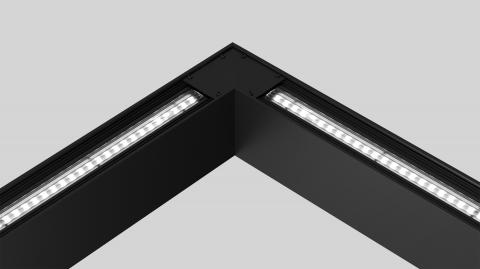

TUNNEL revives the classic functional form into a charming new style with an incurved enhancement. With this design flair comes great functionality. TUNNEL exceeds the typical levels of output and efficacy, and delivers on specification capabilities. Alternatives are provided for nearly every component, allowing designers to configure a luminaire designed precisely to the needs of the space. TUNNEL’s luxurious finishes and smooth lines create a stylish luminaire that does not compromise on performance. Design a cleaner lighting layout that follows the architecture and interior design with the new Systems option.
Tech Specs
Body
Finish
Powder coated
Suspension
Steel cables.
Power cable
Silver braided.
PoE
Can be integrated into your data network via Power over Ethernet (PoE) connectivity.
BIOS
For circadian lighting, consult factory.
Drivers
HPF electronic drivers for 120-277V, 347V (EU-240V). The driver is integral to the fixture housing.
Diffuser
Opal acrylic.
Integral Emergency system
Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The self contained system includes the inverter module, NiCad batteries, LED charge indicator and test switch (NA only). Not available with a 347V supply.
Sensors
Compatible with Avi-On, Casambi, Enlighted, Lutron Vive, nLight, NX Lighting Controls, Osram, Philips, and others. Consult factory.
Tunable White
Tunable white available, consult factory.
Mechanical
Luminaires mount directly over J box (by others).
Reported L70 @25°C (77°F)
> 60,000 hrs @ 2000 lumens/ft (6000 lumens/m)
Estimated L70 @25°C (77°F)
> 165,000 hrs @ 2000 lumens/ft (6000 lumens/m)
Delivered lumens
Delivered lumens & LPW based on 4000K CRI 80+
Approvals
Damp Rated.
Designed by
Serge Cornelissen.
Design
US Design Patent Pending.
Approvals
Mounting & Optics
Suspended Direct
Suspended Direct/Indirect
Direct DD1
Direct DD2
Direct DD3
Indirect UD1
Indirect UD3
Bios
Declare
PoE
