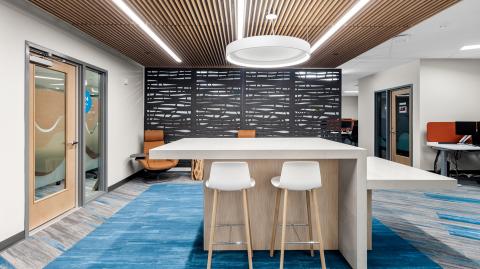

Cerchio II epitomizes contemporary design with elegant clean lines and a floating inner ring that evokes an impression of levity. The outer and inner rings can each have their own finish to make Cerchio II more complementary to surrounding color themes. Cerchio II is also available with an acoustic panel in 6 finishes which adds another decorative dimension while offering sound-absorbing functionality.
Stainless steel cables.
Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The remote system includes the inverter module, NiCad batteries and a remote wall/ceiling LED charge indicator and test switch (NA only) Maximum distance between wall/ceiling plate and luminaire is 4.5m/15’. Test switch fits a single gang box (not supplied).
Wire Size 18 AWG - Max distance (from canopy to drivers) 9.5', Wire size 16 AWG - Max distance 19.5', Wire size 14 AWG - Max distance 29.5'. Drivers must be accessible after installation. 5ft(1524mm) and above c/w 2 remote driver boxes and 2 power cords.
HPF electronic drivers for 120-277V, 347V (EU-240V). Depending on options selected, driver can be either integral in the canopy or remoted mounted.
Luminaires mount directly over J box (by others - North America only).
ASTM E-84 material.
100% recycled polyester fiber (PET).
Cerchio II can integrate into your data network via Power over Ethernet (PoE) connectivity.
Consult factory regarding sensor compatibility.
Delivered lumens & LPW based on 4000K (min 80 CRI).
