Midi Arc V™

General Specification

Product overview:

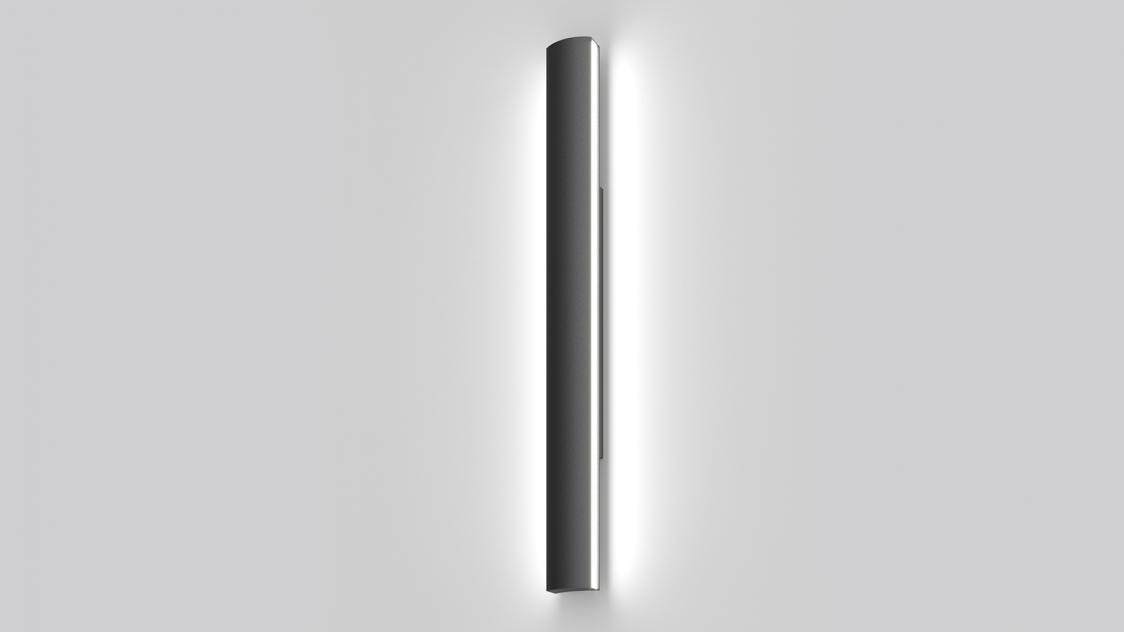

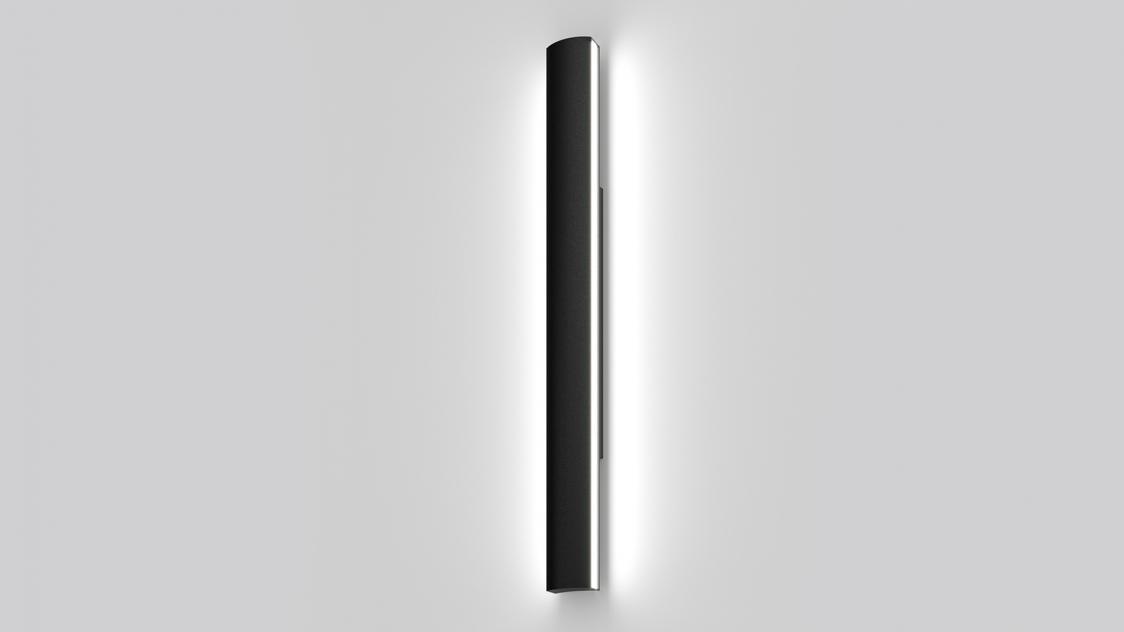

Midi Arc V's curved edge design brings a softer architectural profile to the space. Featuring two new signature finishes; White Gloss and Polished Aluminum mirrored.

Body: Aluminum.

Finish: Powder coated for standard finishes.

Diffuser: Frosted acrylic

Drivers: HPF electronic drivers for 120-277V (EU 240V).

Remote emergency: Emergency option provides a 1.5 hour (3hours for EU) emergency lighting facility. The remote system includes the inverter module, NiCad batteries and a remote wall/ceiling LED charge indicator and test switch. Maximum distance between wall/ceiling plate and luminaire is 4.5m/15’. Test switch fits a single gang box (not supplied).

Mechanical: Luminaires mount directly over 2"x3" switch box (by others).

L70 @25oC: > 60,000 hrs.

Delivered lumens: Delivered lumens & LPW based on 4000K CRI 80+.

Approvals: Damp Location (Indoor use only).



See Approvals
Front View Wall Mount (Midi Arc V) General Diffuse

Specify Luminaire

Luminaire
Code Length (A) Wattage Delivered lms LPW Length (B)
12" 9W 1000 117 14"
24" 17W 2000 117 18"
36" 26W 3000 117 24"
47" 34W 4000 117 29"
70" 51W 6000 117 42"

Specify Lumens

Lumens
1000 lm
1500 lm
2000 lm
2500 lm
3000 lm
3500 lm
4000 lm
6000 lm

SPECIFY CCT/CRI

CCT
3000K CRI 80+
3500K CRI 80+
4000K CRI 80+

Specify Voltage

Voltage
120/277V
240V ¹

Specify Dimming

Specify Finish

Finish
Silver Metallic
Gold Metallic
Polished Aluminum - Mirror finish
Midnight Blue Metallic - Textured
Copper Metallic
Charcoal Metallic - Textured
Bronze Metallic - Textured
Black Metallic - Textured
Champagne Metallic
Red Metallic - Textured
White - Gloss

Specify Emergency

Emergency
Emergency system not required
Emergency system - Integral ¹
Emergency system - Remote
