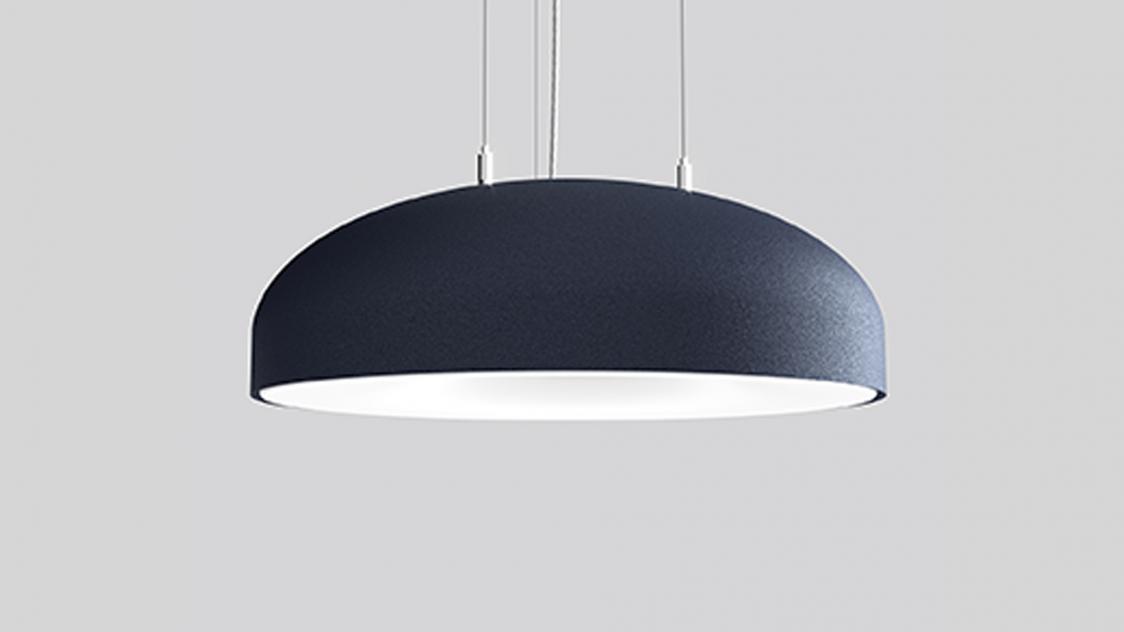

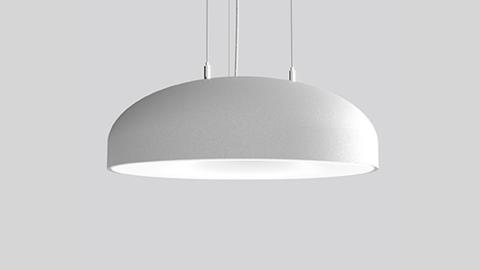

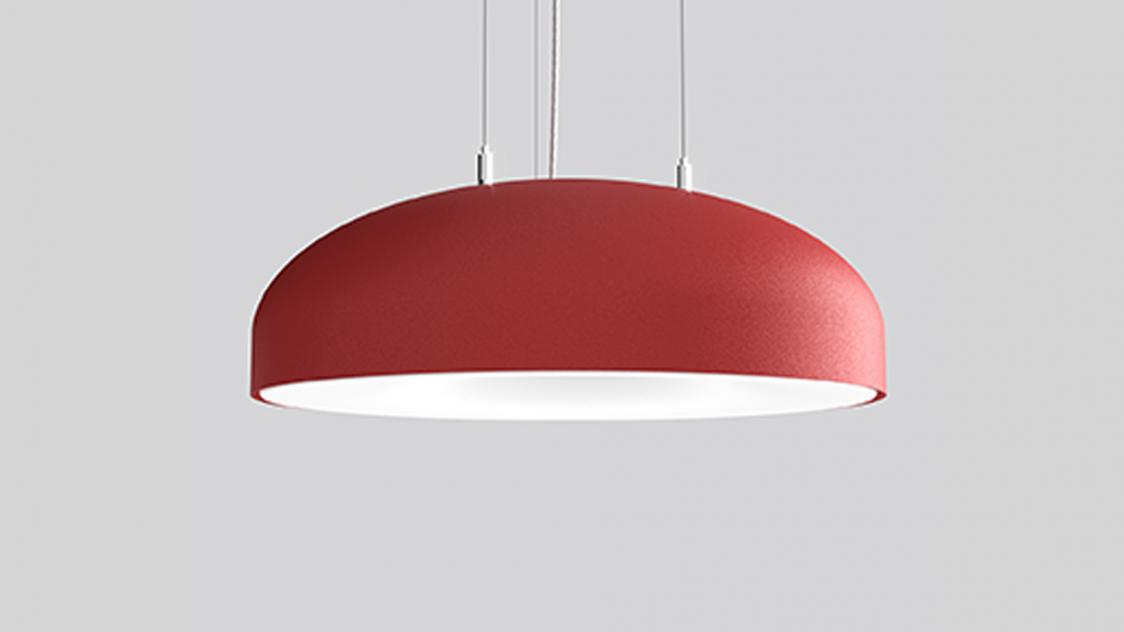

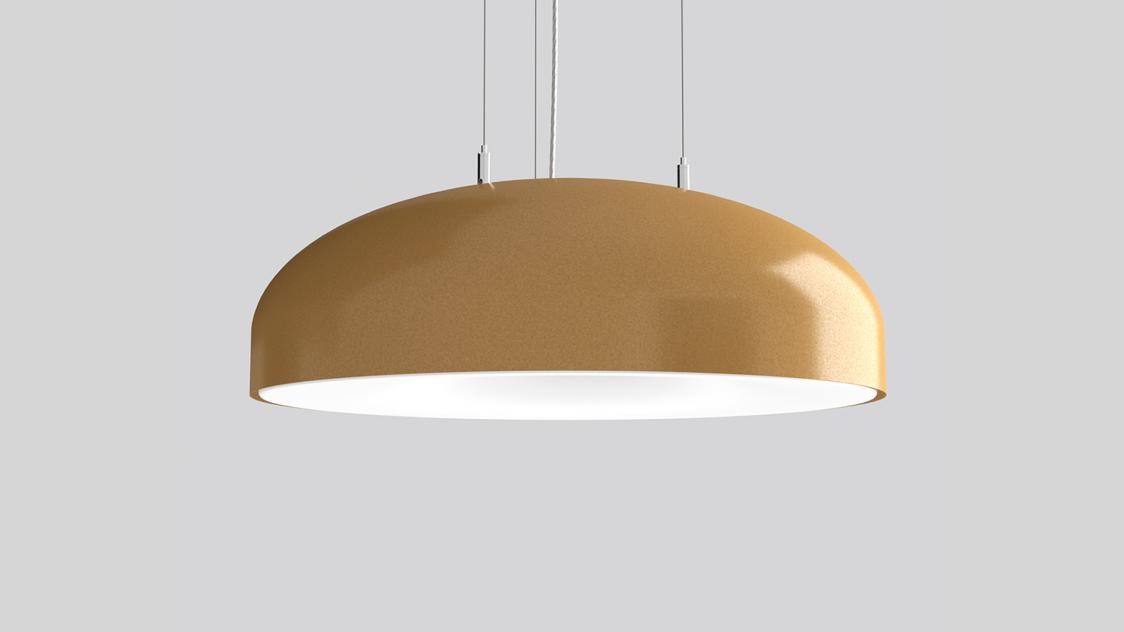

Warp Hemi™
Product Overview

Our dual circuit luminaire delivers high efficiency diffused, spot and direct light, allowing you to transition from general ambient to mood lighting. Available in two sizes 18" & 24", the Warp family offers two styles of pendant plus a ceiling mounted version. The color temperature of each light source can be individually selected to deliver an effect best suited to the application. New to the Warp are a wide array of contemporary decorative colors to accent your architectural scene.

Features

Body

Aluminum and steel.

Canopy finish

Powder coated.

Suspension

Steel cables.

Power cable

Silver braided.

Drivers

HPF electronic drivers for 120-277V, 347V, (EU-240V)

Diffuser

Acrylic.

Mechanical

Luminaires mount directly to a J box (by others - North America only).

L70 @25°C

> 50,000 hrs.

Integral emergency system

Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The self contained system includes the inverter module, NiCad batteries, LED charge indicator and test switch (NA only). Integral emergency EU luminaires have a 10.5" (270mm) DIA x 2" (48mm) height canopy with LED charge indicator. Not available with a 347V supply.

Remote emergency

Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The remote system includes the inverter module, NiCad batteries and a remote wall/ceiling LED charge indicator and test switch (NA only) Maximum distance between wall/ceiling plate and luminaire is 15' (4.5m). Test switch fits a single gang box (not supplied).

Delivered lumens

Delivered lumens & LPW based on 4000K (min 80 CRI).

Approvals

Damp Location (Indoor use only).

Design

US Design Patent Pending.

Designed by

Serge Cornelissen.

Mounting and Optics

Icon for Suspended Direct Suspended Direct

Downloads

Approvals

  • ETL
  • CE
  • Grounding
  • Damp Location (Indoor Use)
  • Mounting Suited On Flammable Surfaces
  • IP 20
