Xacara™ CL-R

WEB PIN™613

General Specification

Housing: Die cast aluminium.

Reflectors: Medium and wide beam. Highly reflective, specular finish, vacuum plated.

Protective lens: Clear glass.

Finish: Powder coated, as specified.

Drivers: HPF electronic for 120-277V (EU-240V). 0-10V dimming (10%).

Mounting: Luminaire mounts to a Jbox (not included, installed by others). Driver mounts to the inside of the Jbox (by others). Mounting hardware included.

L70 @25oC (77oF): > 60,000 hrs.

Delivered Lumens: Delivered lumens & LPW based on 3000K (min 80 CRI).

Approvals: Damp Location (Indoor use only).

Note: Photometric testing performed using LM79 procedures.



See Approvals

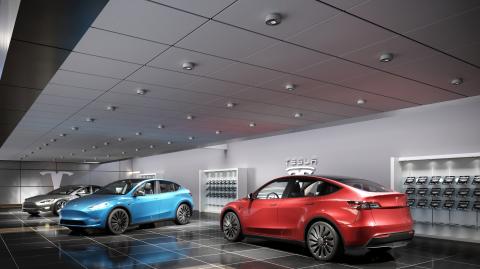

Interior - Ceiling

specify luminaire

Code: Power (LED): Delivered lms: LPW:
50 1012 26W 2085 80

SPECIFY CCT/CRI

SPECIFY REFLECTORS

SPECIFY FINISH
