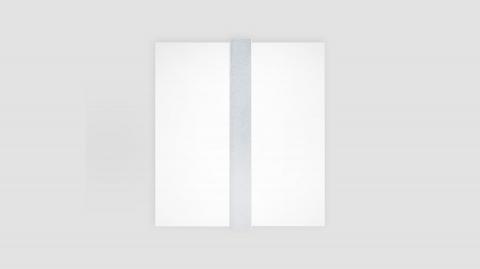

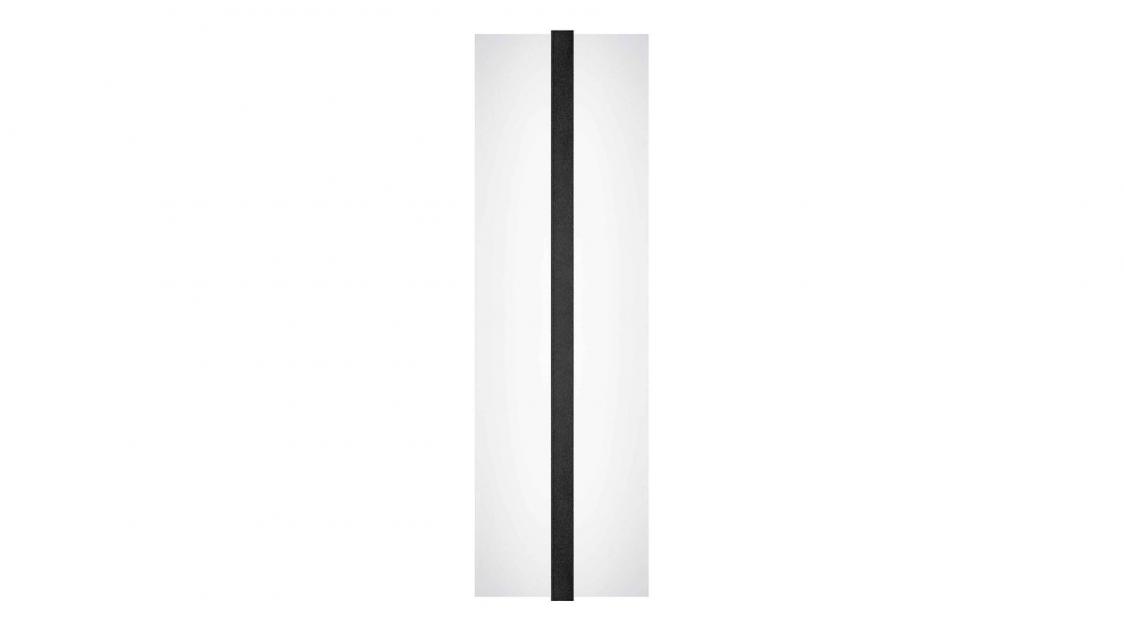

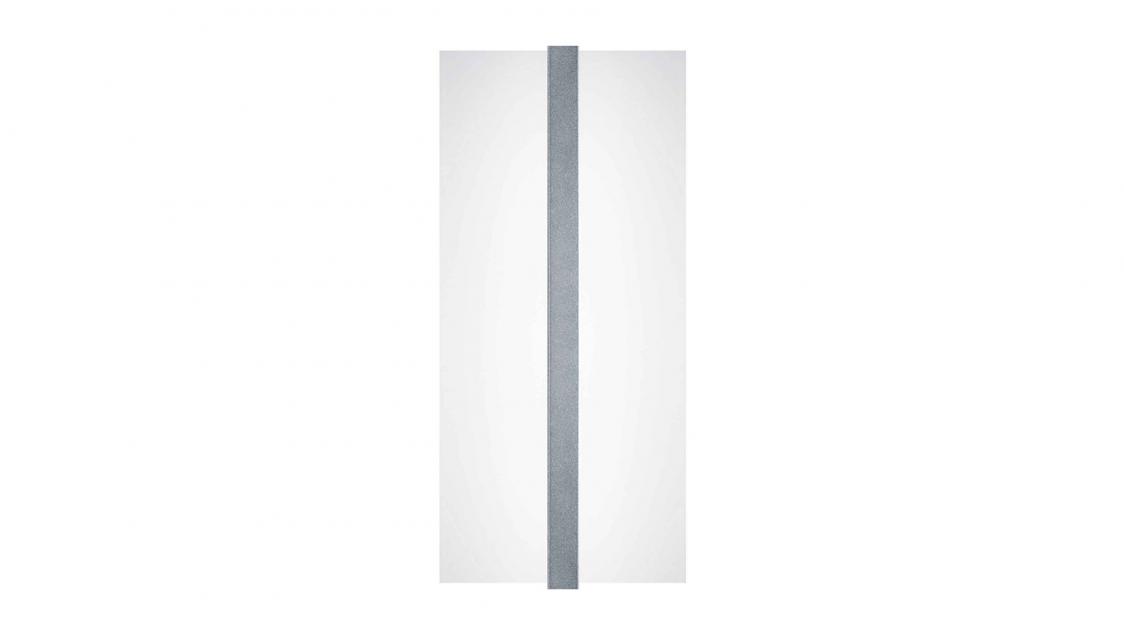

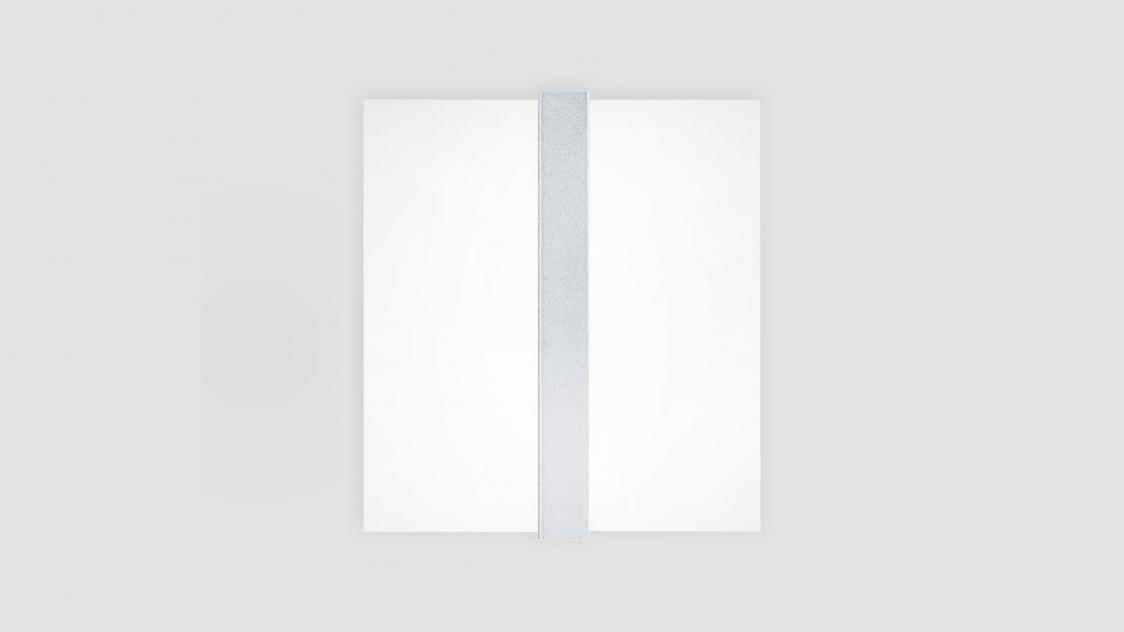

Arko™ II

WEB PIN™539

General Specification

Body and trim: Aluminium and steel.

Finish: Powder coated.

Diffuser: Extruded, high impact opal acrylic.

Drivers: HPF, electronic for 120-277V (EU-240V). LED 0-10V dimming standard (10%).

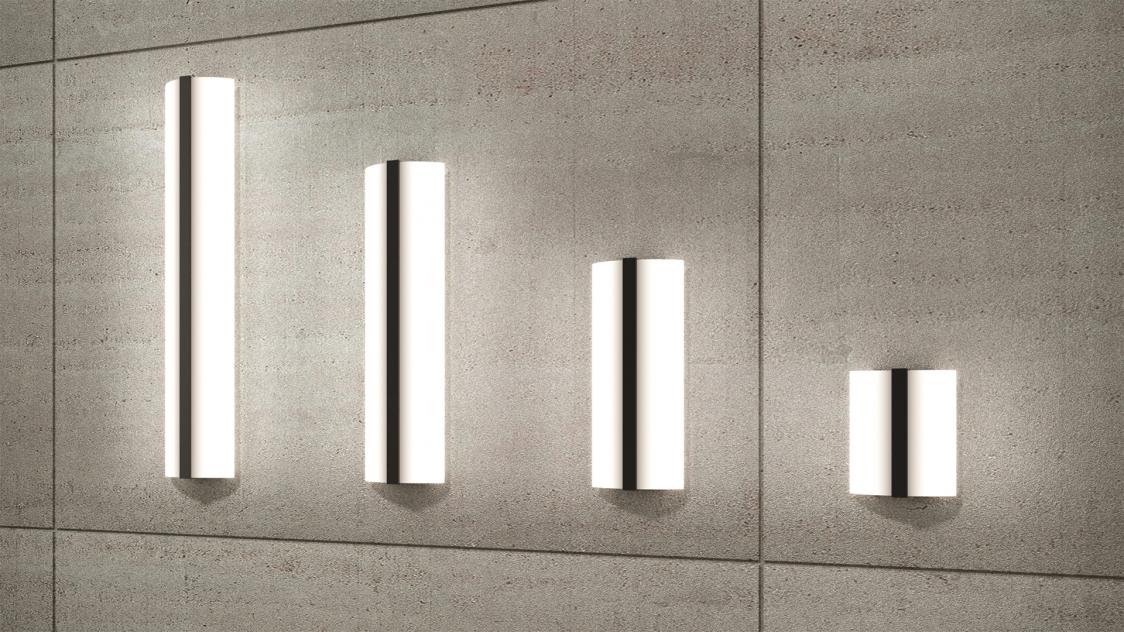

Luminaire orientation: Wall mounted.

L70 @25oC (77oF): > 50,000 hrs.

Delivered Lumens: Delivered lumens & LPW based on 3000K (min 80 CRI).

See Approvals
Interior - Wall

specify luminaire

Code: Power (LED): Delivered lms: LPW: Height (A):
10W 550 50 305mm/12"
20W 1100 50 305mm/12"
20W 1100 50 610mm/24"
40W 2200 50 610mm/24"
30W 1650 50 915mm/36"
40W 2200 50 1220mm/48"

SPECIFY CCT

SPECIFY FINISH
