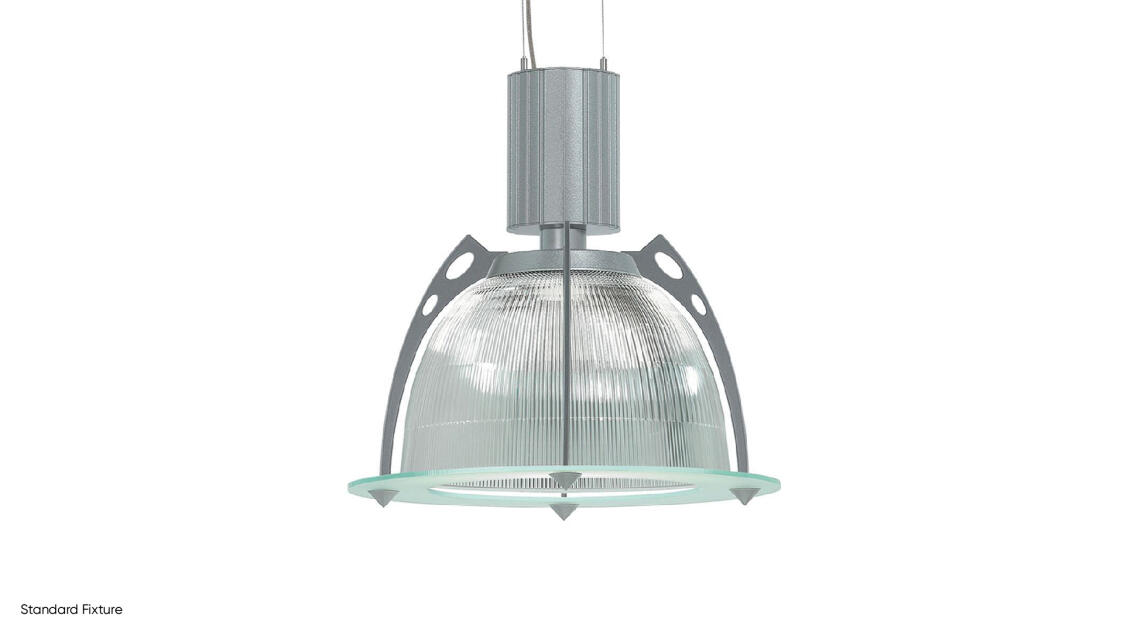

The industrial-style dome is a workhorse equipped with a clear prismatic diffuser that maximizes the pendant’s efficacy, delivering high light outputs suitable for the high ceilings of warehouses and superstores. An optional White refractor is available.
Tech Specs
Body and trim
: Steel and aluminum.
Finish
Powder coated Silver Metallic.
Suspension
Twin aircraft cables.
Power cable
Silver braided.

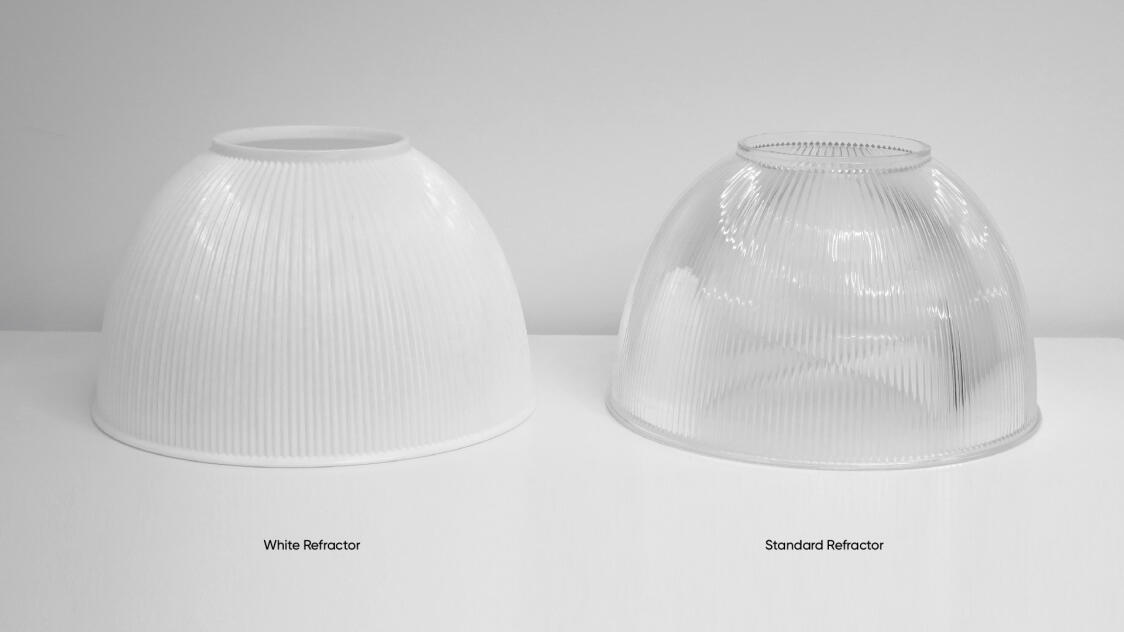

Refractor
High temperature clear prismatic acrylic.
Mechanical
Luminaires mount to a junction box (by others - North America only).

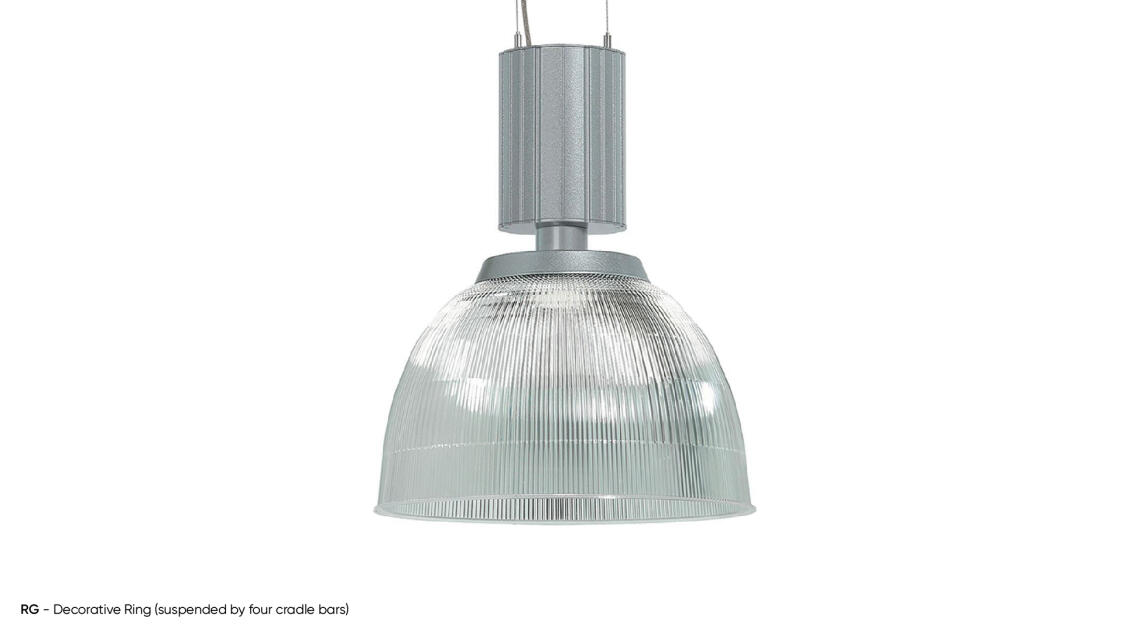

Decorative ring
6mm/0.25" green tint, acrylic (faux glass) with a polished edge and a sandblasted finish.

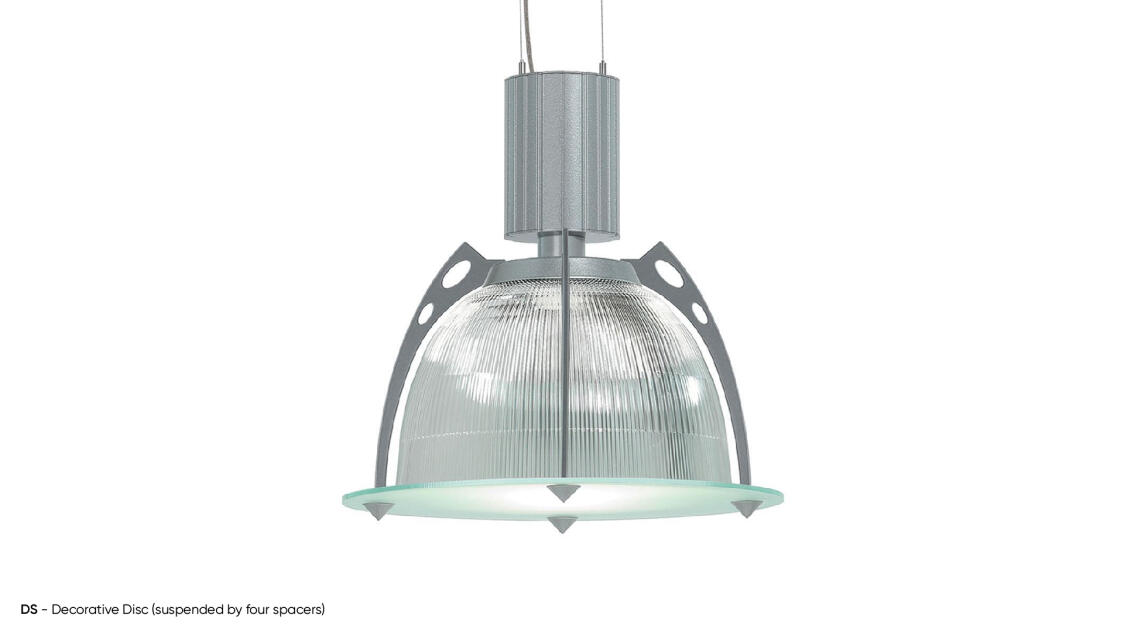

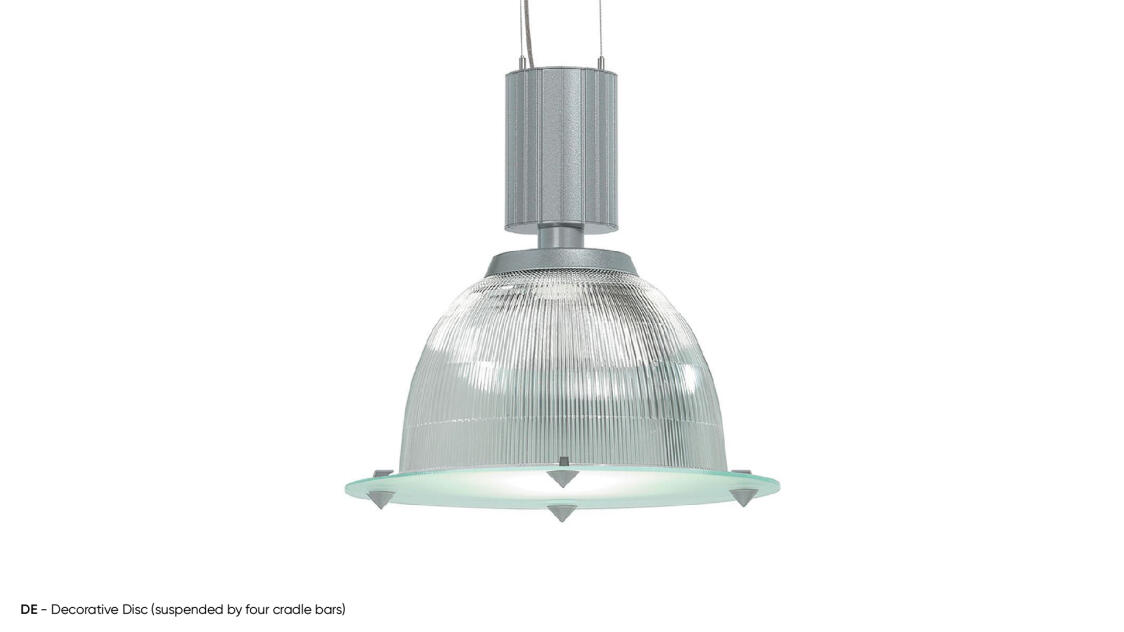

Decorative disc
6mm/0.25" glass with a polished edge and a sandblasted finish.
Remote Emergency
Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The remote system includes the inverter module, NiCad batteries and a remote wall/ceiling LED charge indicator and test switch (NA only) Maximum distance between wall/ceiling plate and luminaire is 4.5m/15’. Test switch fits a single gang box (not supplied).
Drivers
HPF electronic, 120/277V (EU-240V). 0-10V, 1% dimming standard. The driver is integral to the fixture housing.
Sensors
Consult factory regarding sensor compatibility.
Delivered Lumens
Delivered lumens & LPW based on 3000K (min 80 CRI).
Reported L70 @25°C (77°F)
> 50,000 hrs.
Approvals
Damp location, (Indoor use only).
Approvals
Mounting & Optics
Suspended Direct
Direct
Declare
