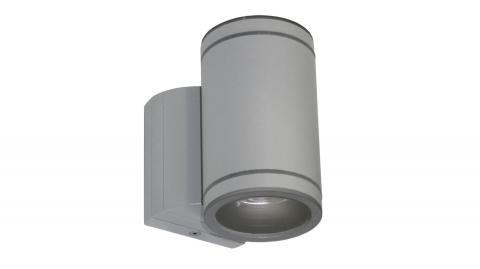

One4Two™

Medium

WEB PIN™737

General Specification

Housing: Die-cast and extruded aluminium.

External Screws: Stainless steel.

Lens: Clear glass.

Gaskets: One piece silicone.

Reflector: High purity aluminium, silver anodised.

Finish: Silver powder coated light gray or black coated as standard.

Drivers: HPF, electronic for 120-277V (EU-240V).

Minimum Starting Temperature: -20°C.

Weight: Maximum 8.8lb.

Delivered Lumens: Delivered lumens & LPW based on 3000K (min 80 CRI).

See Approvals

Ext-Wall Downlight

Ext-Wall Downlight

Ext-Wall Up/Down

Ext-Wall Up/Down 10°

10°

10°

35°

35°

Specify Luminaire

	Code	Power (LED)	Delivered lms	Distibution
	26 7033	2 x 14W	2098	10° up + 35° down
	26 7013	2 x 14W	2098	10° up + 10° down
	26 7023	2 x 14W	2098	35° up + 35° down
	26 7113	14W	1049	10° down
	26 7123	14W	1049	35° down

Specify CCT

30 3000K (min 80 CRI)

40 4000K (min 80 CRI)

Specify Finish

BL Black

GR Light Gray

Specify Dimming

DB Dimming (0-10V, 10%)

You selected

Create

Clear Selections

Save

One4Two™

Product Info

Select all

specification sheet
ies files
ldt files
BIM FILES
dimensional diagrams
product images

Dimensional Diagrams
