Step™

General Specification

Product Overview:

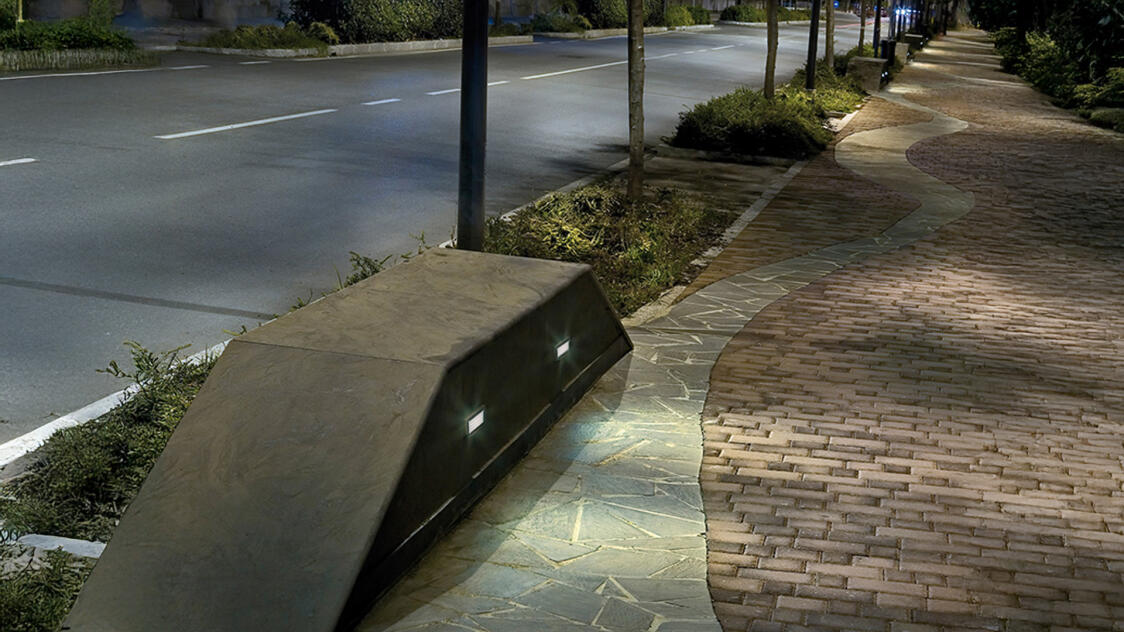

STEP is designed to blend into the architecture while illuminating steps and pathways. With asymmetric light distribution, Step makes efficient use of the light output directing it to exactly where it is required. Available in 3 polyester-based finishes, as well as Turtle-friendly, amber LED.

Housing: Low copper, die-cast aluminum highly resistant to oxidation.

Diffuser: 4mm/0.2" tempered glass.

Gasket: Silicone.

Finish: Powder coated.

Reflectors: High purity aluminum.

External screws: A4 stainless steel treated with highly antioxidant water-repellent lubricating solution to ensure easy opening.

Cable entry: Double silicon gland for DIA 10-14mm/0.4-0.5" cables.

Drivers: HPF, electronic 120-277V.

Rough-in housing: Thermoplastic.

Mechanical: For wall installation in poured concrete/brick.

Delivered Lumens: Delivered lumens & LPW based on 3000K (min 80 CRI).

Mounting and Optics

Icon for Ext-Wall Recessed Uplight Ext-Wall Recessed Uplight
Icon for Ext-Wall Recessed Downlight Ext-Wall Recessed Downlight

Downloads

Approvals

  • ETL
  • CE
  • Grounding
  • Wet Location
  • IP 66
