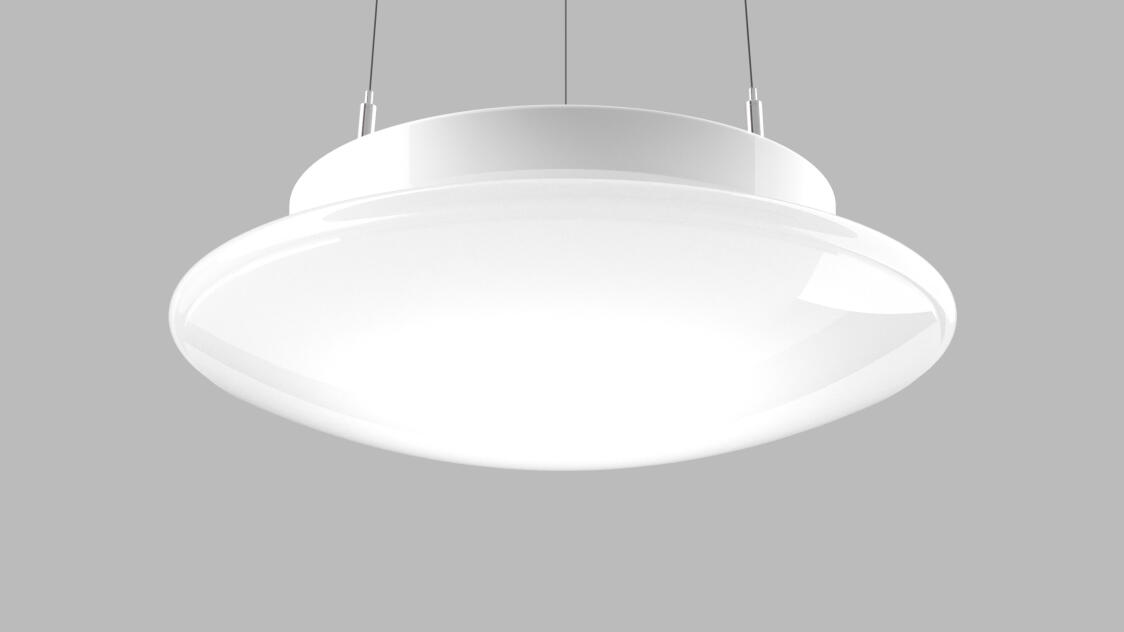

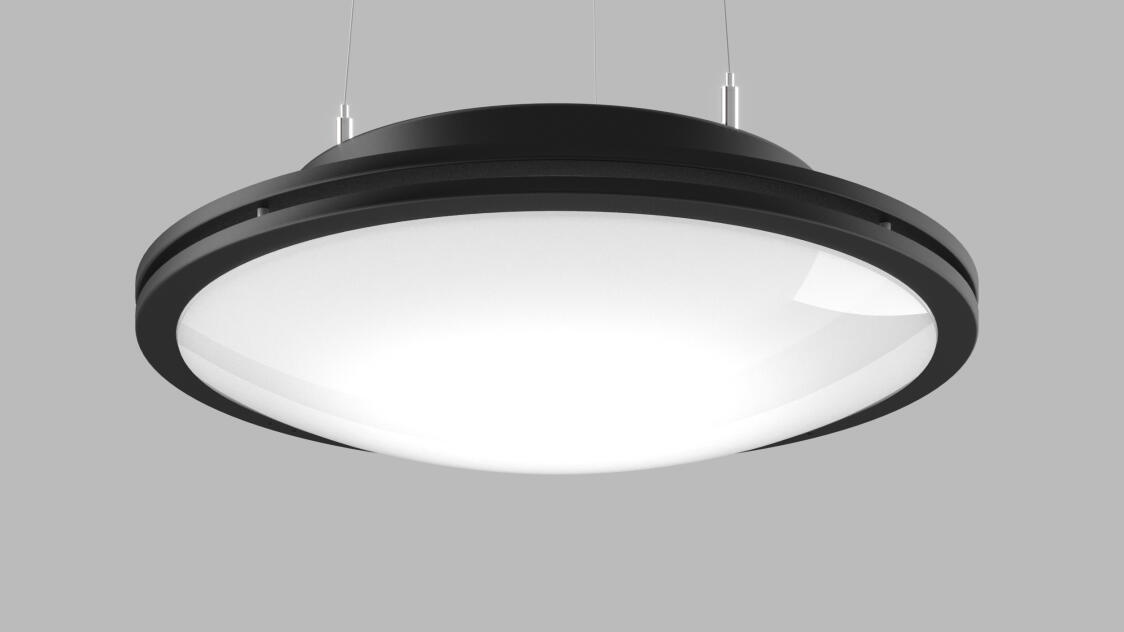

Trilogy™

General Specification

Body and trim: Steel and aluminum.

Finish: Back plate, powder coated gloss white.

Diffuser: Three ply satin opal glass.

Drivers: HPF electronic, 120/277V (EU-240V). 0-10V, 1% dimming standard.

Luminaire orientation: Ceiling or wall mounted.

Mechanical: Mounts directly to a junction box (by others - North America only).

Delivered Lumens: Delivered lumens & LPW based on 3000K (min 80 CRI).

Approvals: Damp Location (Indoor use only).

See Approvals
Ceiling Direct/Indirect Direct-indirect

Specify Luminaire

Code Power (LED) Delivered lms LPW Weight
63 5220 21W 1240 59 14lb

Specify CCT

CCT
3000K (min 80 CRI)
3500K (min 80 CRI)
4000K (min 80 CRI)

You selected

Add to Quote
Create
Add to existing quote:
Trilogy™

Product Info

Select all
  • Specification Sheet Imperial
  • Specification Sheet Metric
  • ies files
  • ldt files
  • dimensional diagrams
  • product images
Download

Dimensional Diagrams
