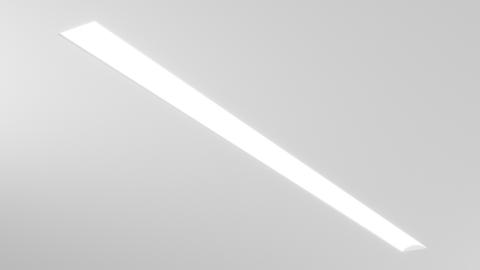

Tunnel™ Continuous Recessed

TUNNEL revives the classic functional form into a charming new style with an incurved enhancement. With this design flair comes great functionality. TUNNEL exceeds the typical levels of output and efficacy, and delivers on specification capabilities. Alternatives are provided for nearly every component, allowing designers to configure a luminaire designed precisely to the needs of the space. TUNNEL’s luxurious finishes and smooth lines create a stylish luminaire that doesn’t compromise on performance.

DOWNLOAD SPEC SHEET

Imperial
Imperial Metric

Downloads

Tech Specs

Body

Aluminum.

Finish

Powder coated.

Drivers

HPF electronic drivers for 120-277V, 347V (EU-240V). The driver is integral to the fixture housing.

Diffuser

Opal acrylic. 2.4" width

PoE

Can be integrated into your data network via Power over Ethernet (PoE) connectivity.

BIOS

For circadian lighting, consult factory.

Tunable White

Tunable White range from 2700K to 6500K is available; contact the factory for details.

RGBW

RGBW available, consult factory.

Mechanical

Luminaires mount directly over J box (by others).

Remote emergency

Emergency option provides a 1.5 hour (3hours for EU) emergency lighting facility. The remote system includes the inverter module, NiCad batteries and a remote wall/ceiling LED charge indicator and test switch. Maximum distance between wall/ceiling plate and luminaire is 15' (4.5m). Test switch fits a single gang box (not supplied).

Reported L70 @25°C (77°F)

> 60,000 hrs @ 1400 lumens/ft (4600 lumens/m)

Estimated L70 @25°C (77°F)
> 165,000 hrs @ 1400 lumens/ft (4600 lumens/m)

Delivered lumens

Delivered lumens & LPW based on 4000K CRI 80+

Approvals

Damp Rated.

Designed by

Seeerge Cornelissen.

Design

US Design Patent Pending.

Approvals

  • ETL
  • CE
  • Grounding
  • Damp Location (Indoor Use)
  • Mounting Suited On Flammable Surfaces
  • IP 20

Mounting & Optics

Icon for Recessed Recessed
Icon for Direct DD1 Direct DD1
Icon for Direct DD2 Direct DD2
Icon for Direct DD4 Direct DD4
Icon for Bios Bios
Icon for Declare Declare
Icon for PoE PoE

Product Configurator

TLCR1R

Luminaire

Length of Run

Max Length Per Section

Lm/ft

CRI

CCT

Diffuser

Voltage

Dimming

Ceiling Type & Trim

Emergency

Chicago Plenum
