Blade Systems

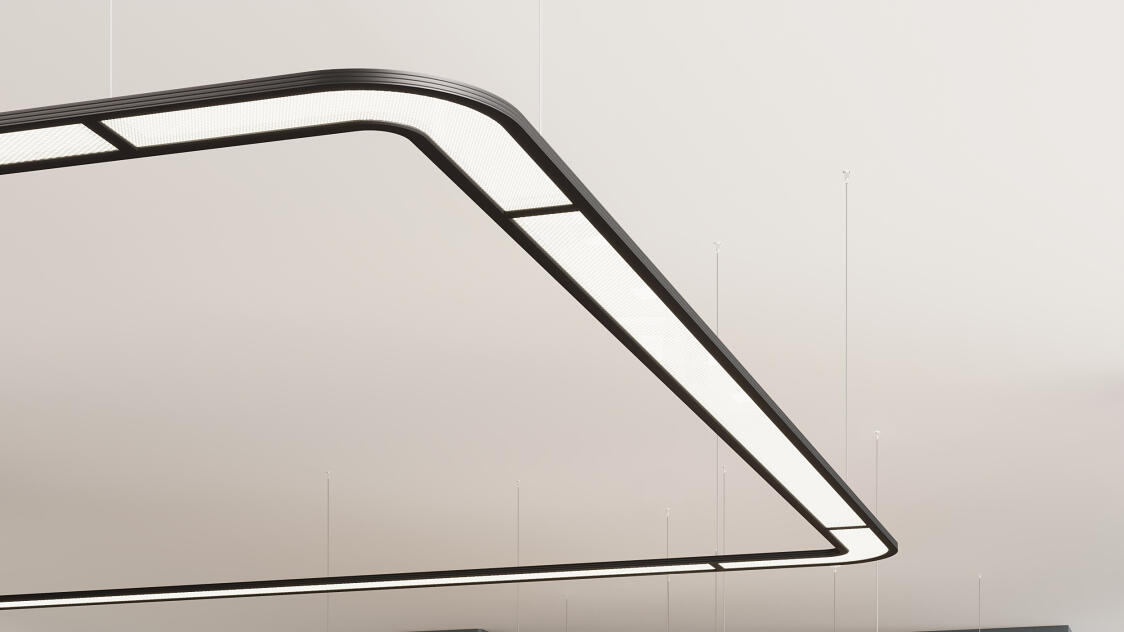

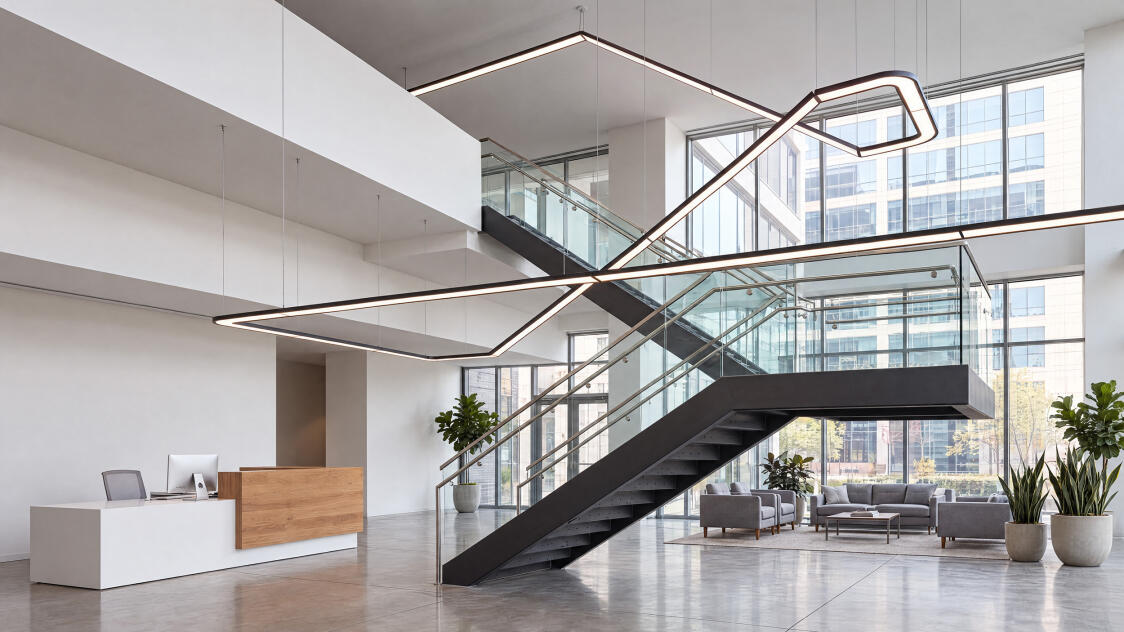

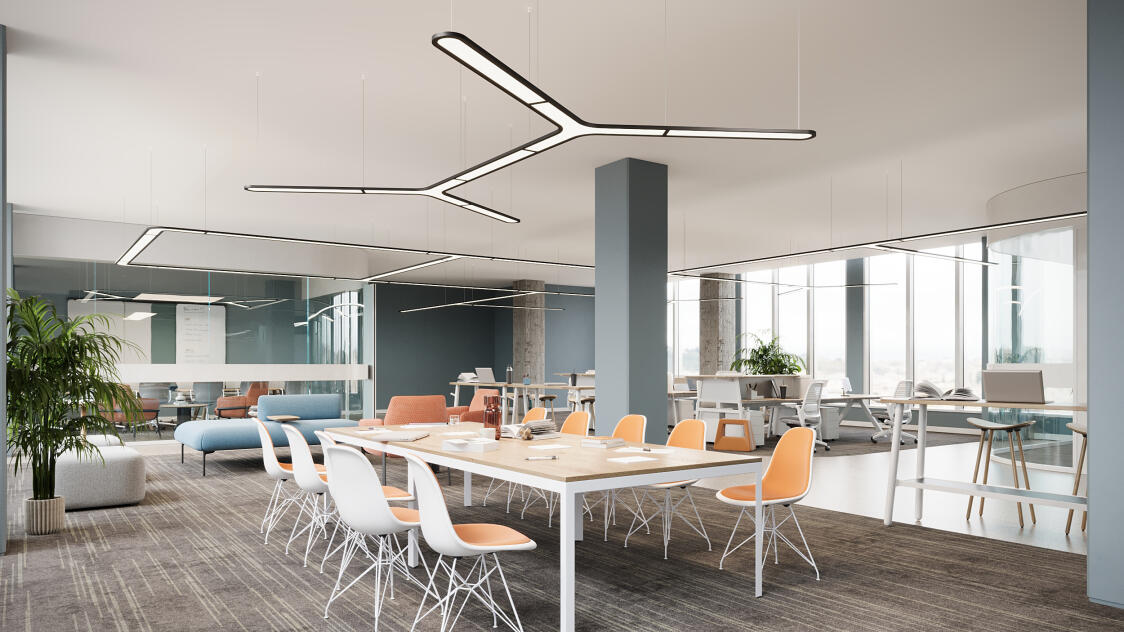

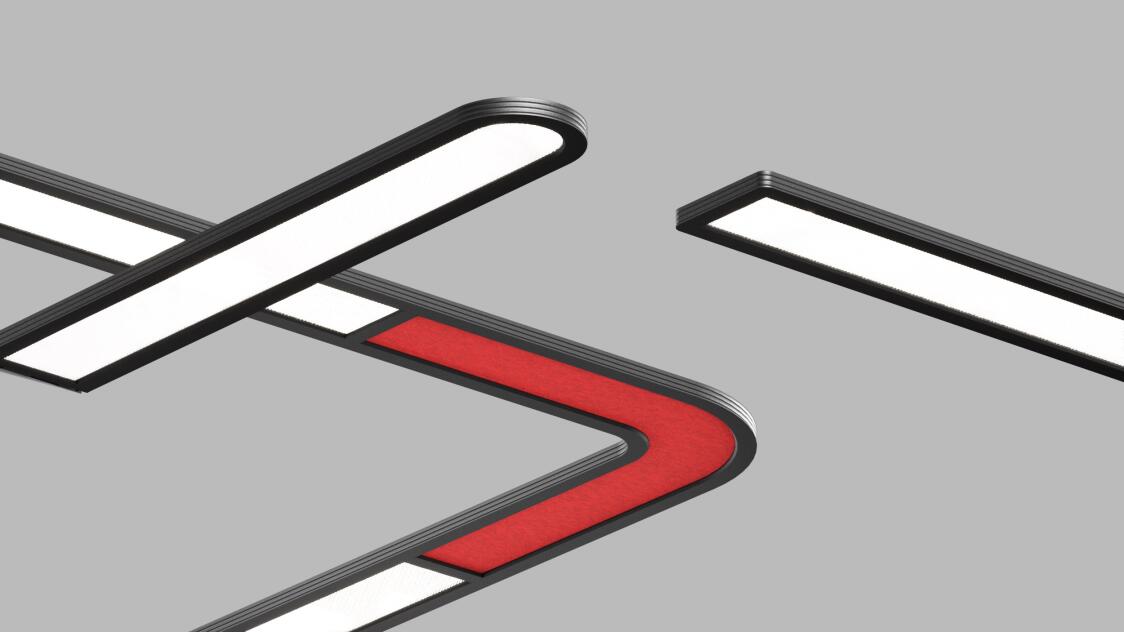

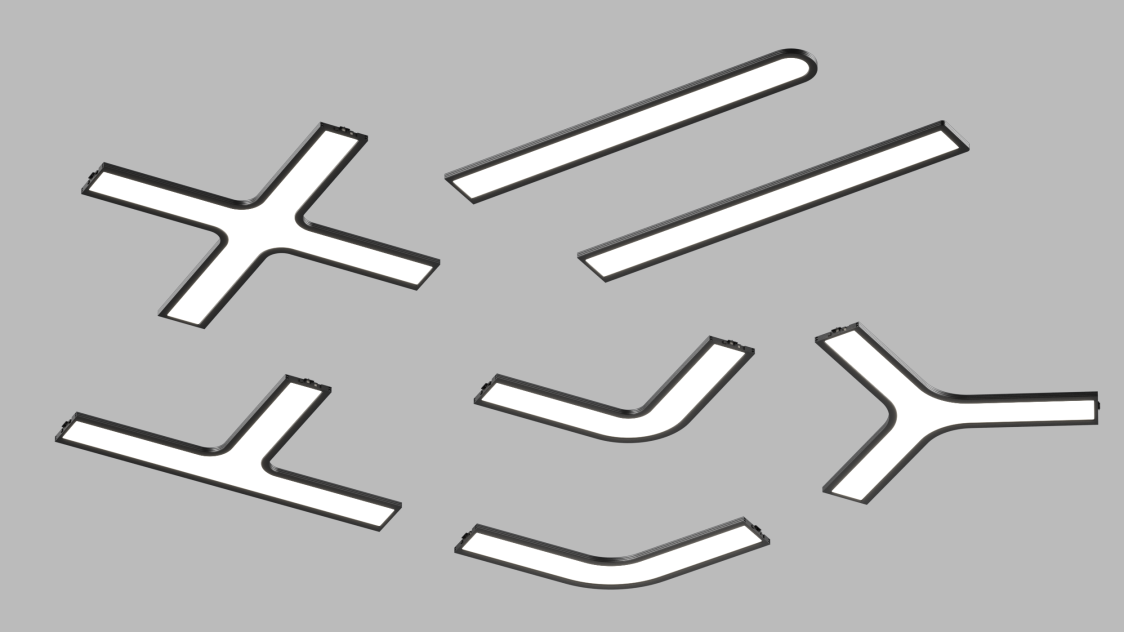

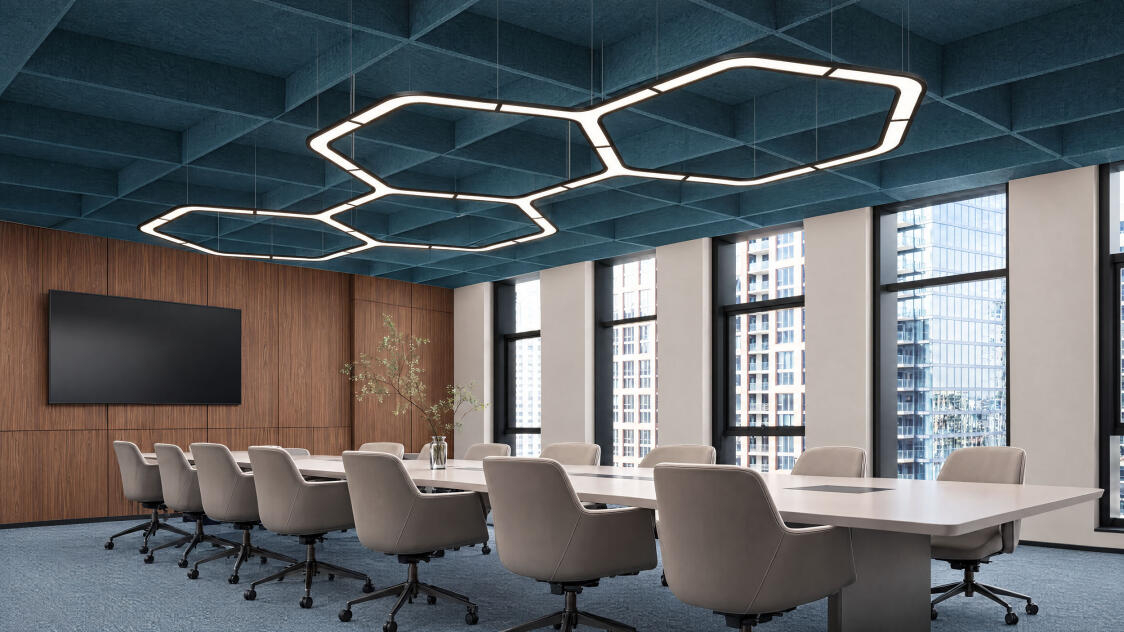

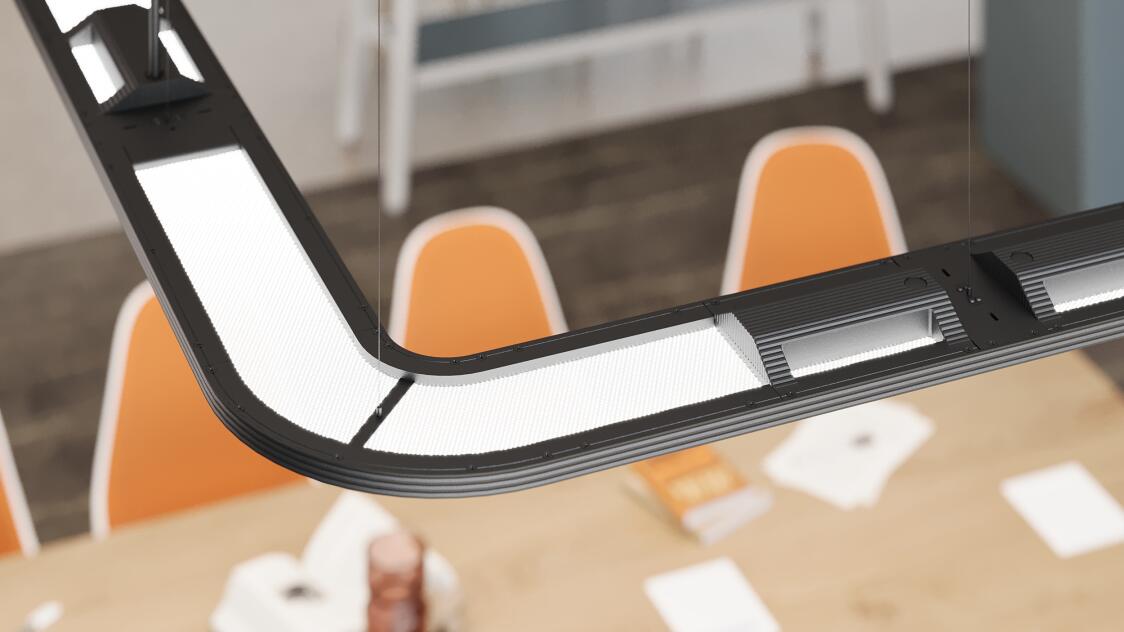

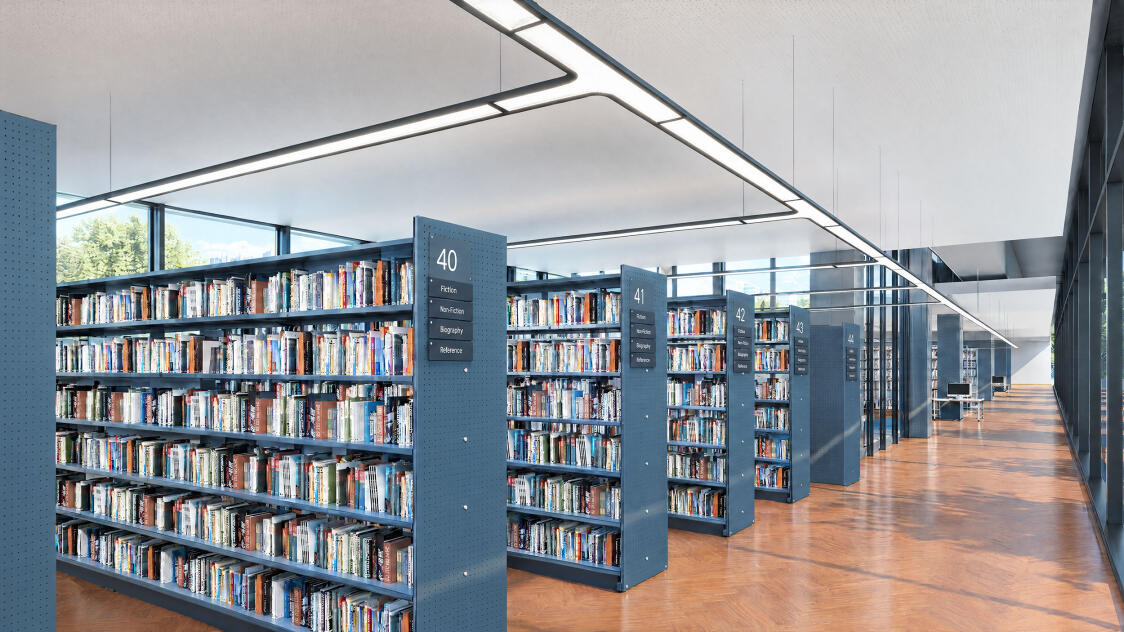

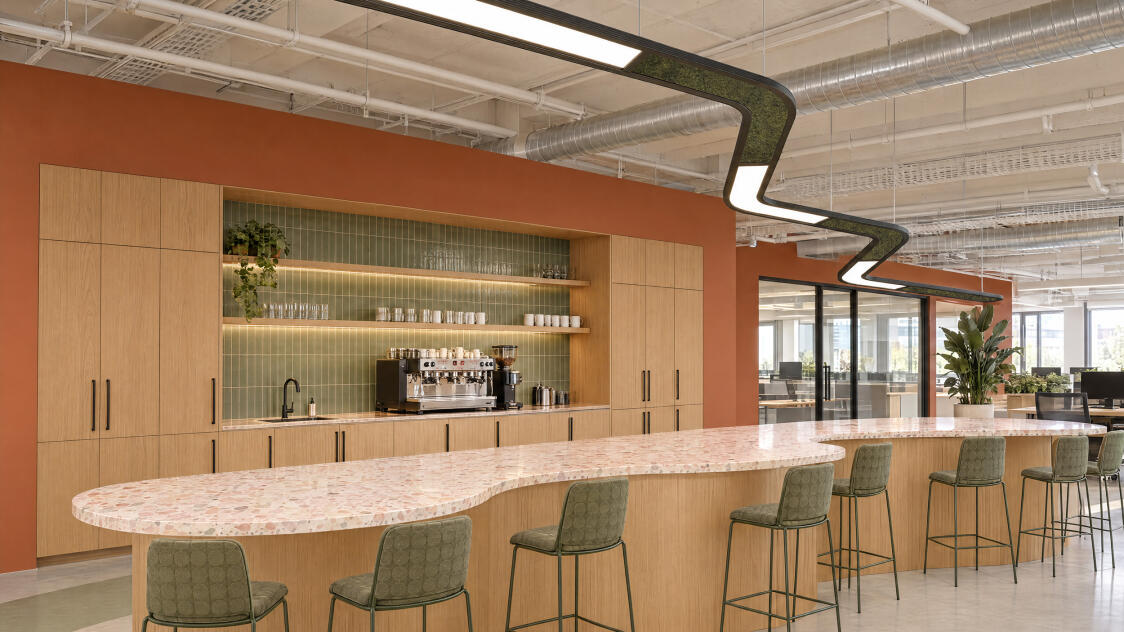

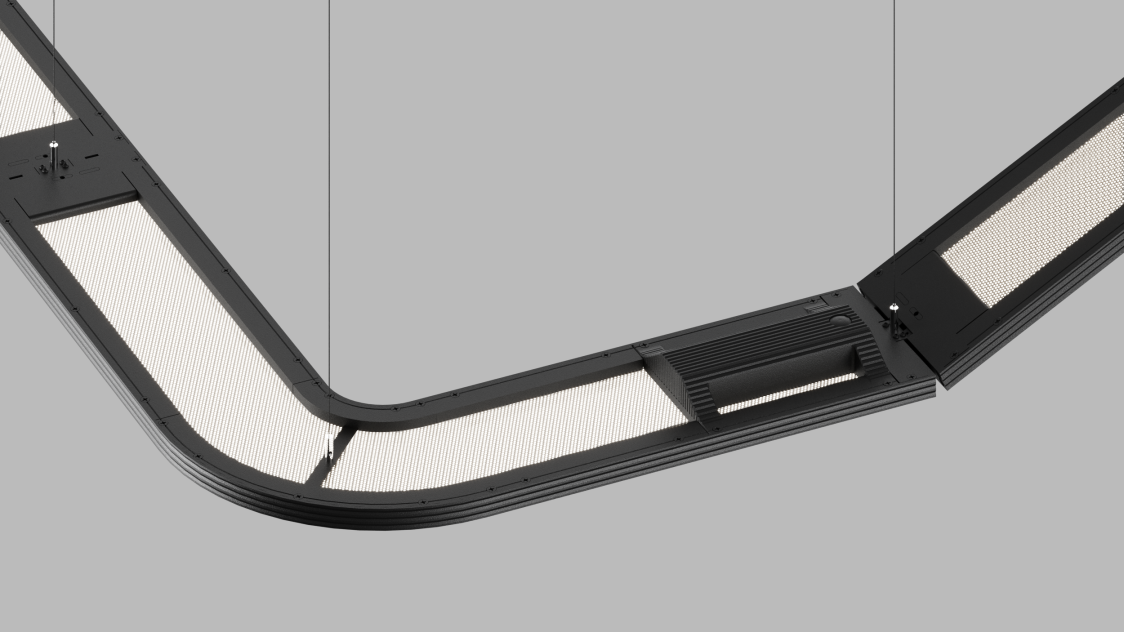

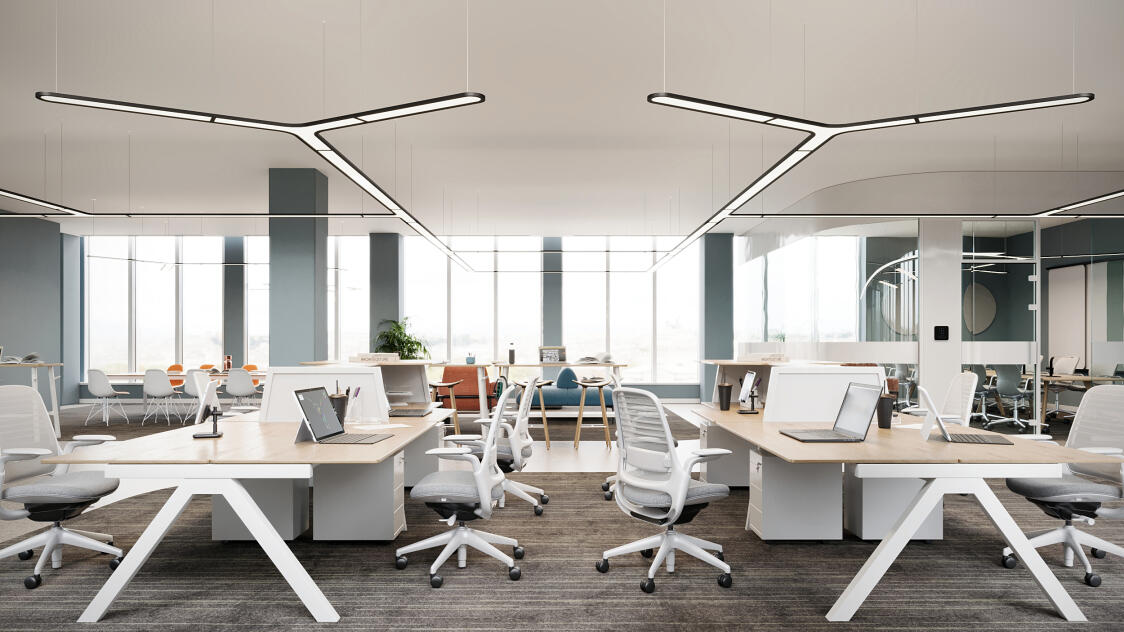

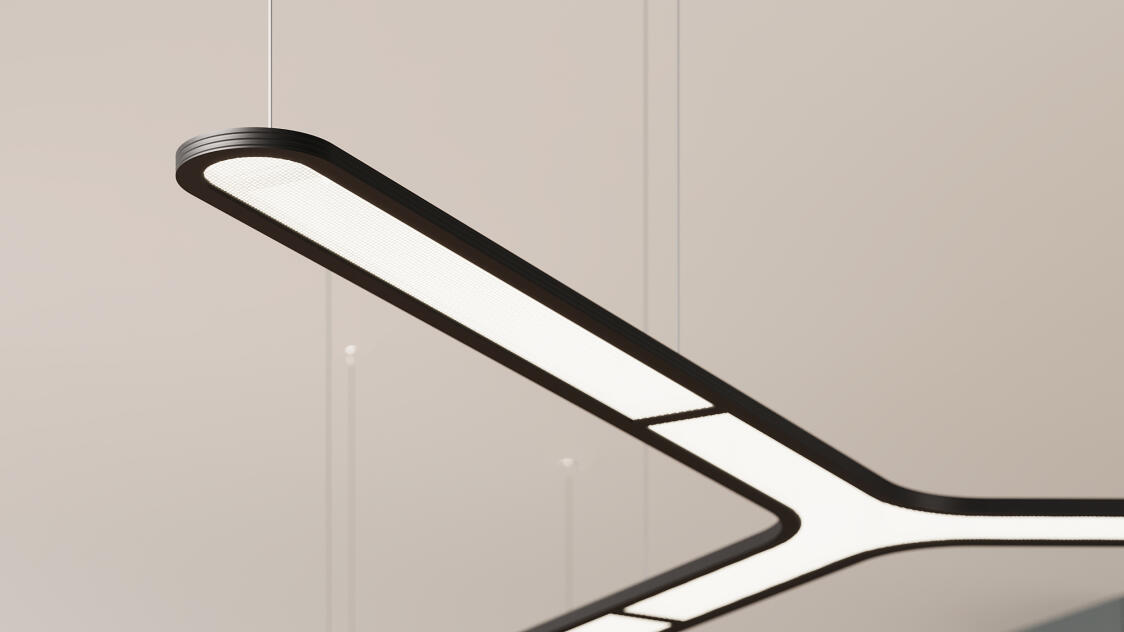

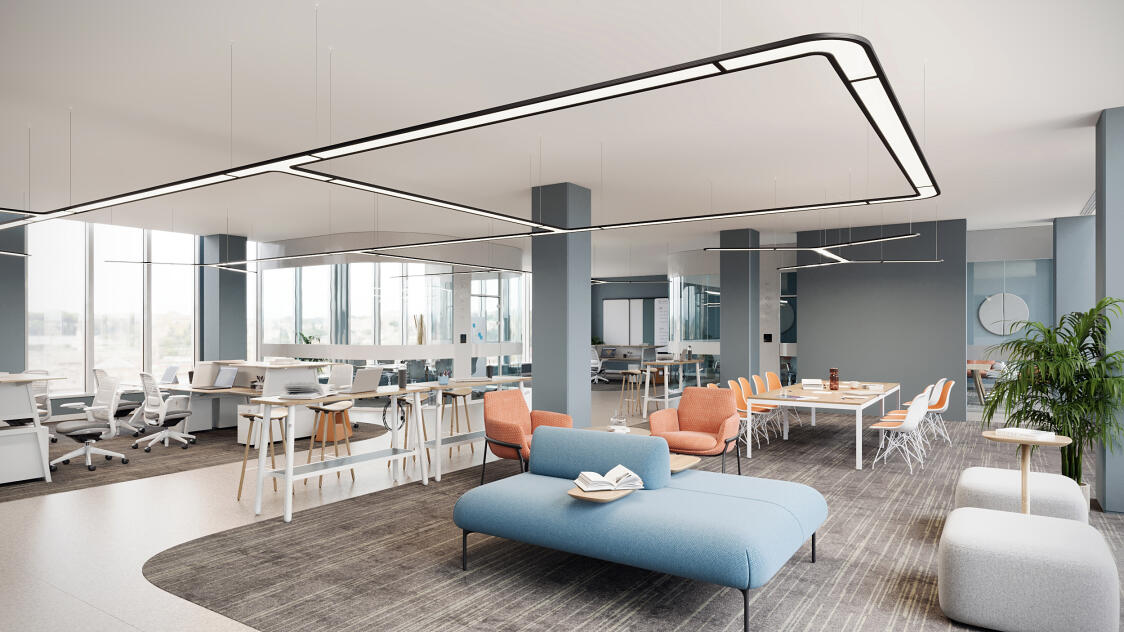

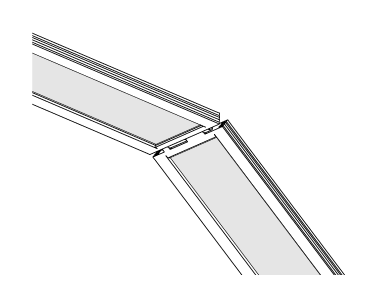

BLADE SYSTEMS brings the Light Guide Plate optics behind the BLADE circular family to linear lighting, in the same ultra-slim 3/4" profile. A micro-dot pattern engraved into optical-grade acrylic converts edge-mounted LED light into smooth, uniform illumination with low glare, achieving UGR below 19 in direct/indirect configurations. Built as a true system, straight runs join with curves and X, Y, and L sections into continuous layouts that follow the architecture, from a single run over a workstation to a hexagonal pattern spanning a board room or open office. The result is comfortable, even light in whatever geometry the space calls for.



FULL SPECIFICATION SHEET

Imperial
Imperial Metric

Downloads

Tech Specs

Body and trim

Steel and aluminum.

Finish

Powder coated.

Suspension

Steel cables.

Lens

Optical grade clear polymethyl methacrylate.

Remote Emergency system

Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The remote system includes the inverter module, NiCad batteries and a remote wall/ceiling LED charge indicator and test switch (NA only) Maximum distance between wall/ceiling plate and luminaire is 15' (4.5m). Test switch fits a single gang box (not supplied).

Drivers

HPF electronic drivers for 120-277V. The driver is integral to the fixture housing.



Acoustic Panels NRC Rating

0.80

Acoustic Panels Fire Rating

ASTM E84-2018 Class A.

Acoustic Panels Material

100% recycled polyester fiber (PET).

Acoustic Panels Thickness

12mm (0.5")

Mechanical

Luminaires mount directly over J box (by others - North America only).

Delivered Lumens

Delivered lumens & LPW based on 4000K (min 90 CRI).

Reported L70 @25°C (77°F)

> 102,000 hrs.

Approvals

Damp Location (Indoor use only).

Design

US Design Patent Pending.

Seismic Bracing

Seismic bracing kits are available to meet compliance requirements. Consult the factory for details.

Acoustic Panel Maintenance

Durable and easy to maintain. Dust regularly and clean marks with mild detergent, rinse, and blot.

Approvals

  • ETL
  • CE
  • Grounding
  • Damp Location (Indoor Use)
  • Mounting Suited On Flammable Surfaces
  • IP 20

Optics & Features

Icon for Suspended Direct Suspended Direct
Icon for Suspended Direct/Indirect Suspended Direct/Indirect
Icon for DR1 DR1
Icon for DR2 DR2
Icon for DR3 DR3
Icon for DR4 DR4
Icon for DR5 DR5
Icon for DR6 DR6
Icon for DR7 DR7
Icon for Declare Declare
