Bend-It™ Suspended Continuous Configurator

Name: Bend-It™ Suspended Continuous
Brand: Beta-Calco

Bend-It™ Suspended Continuous

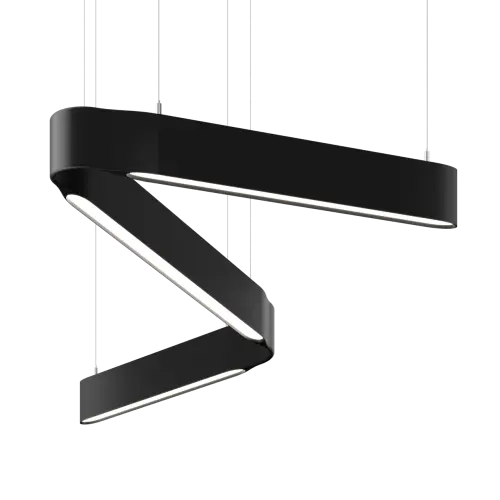

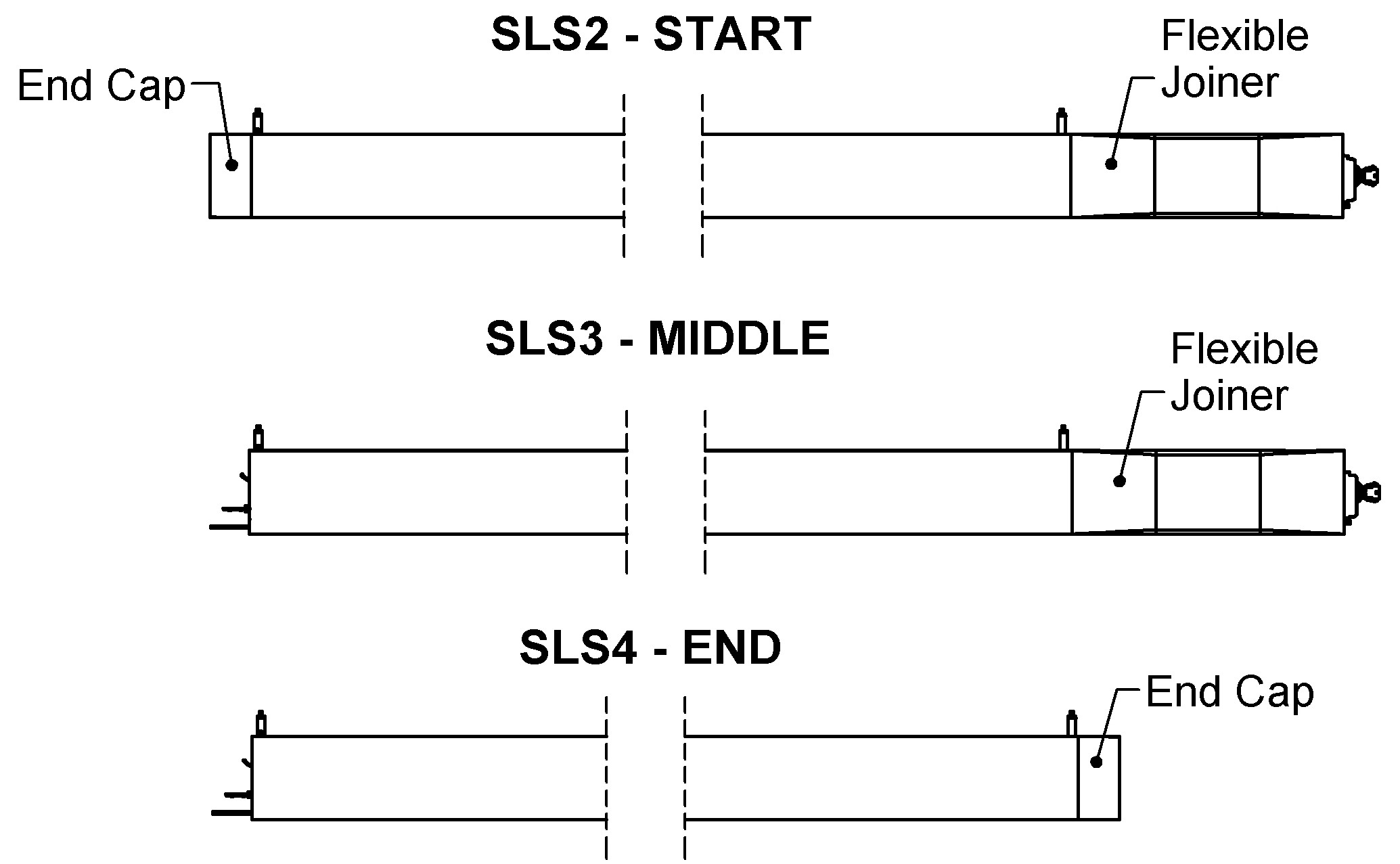

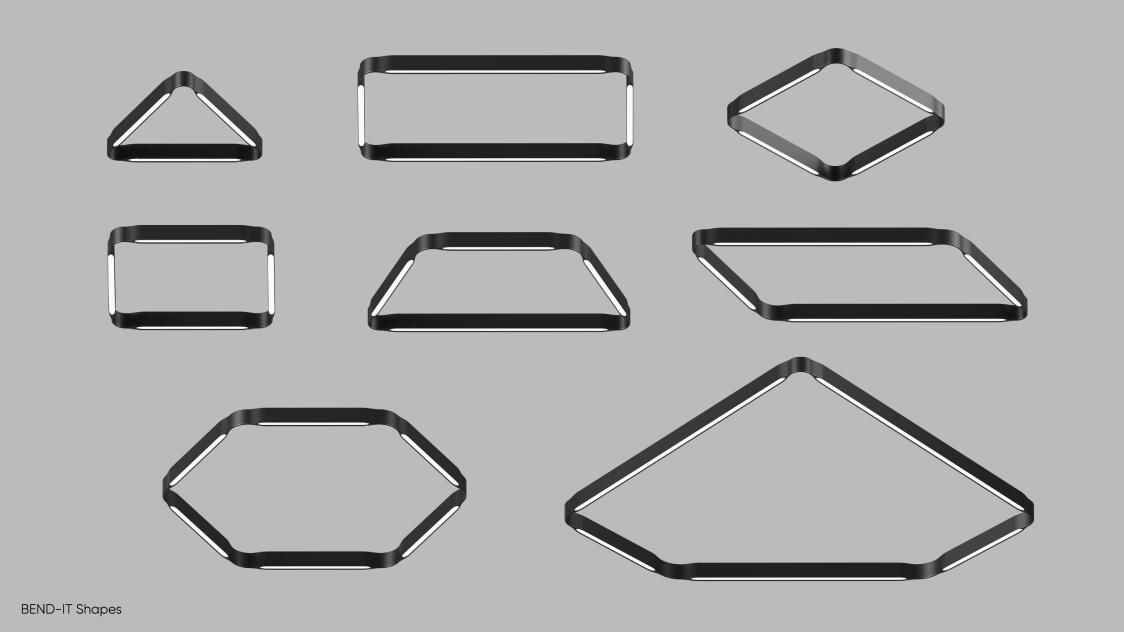

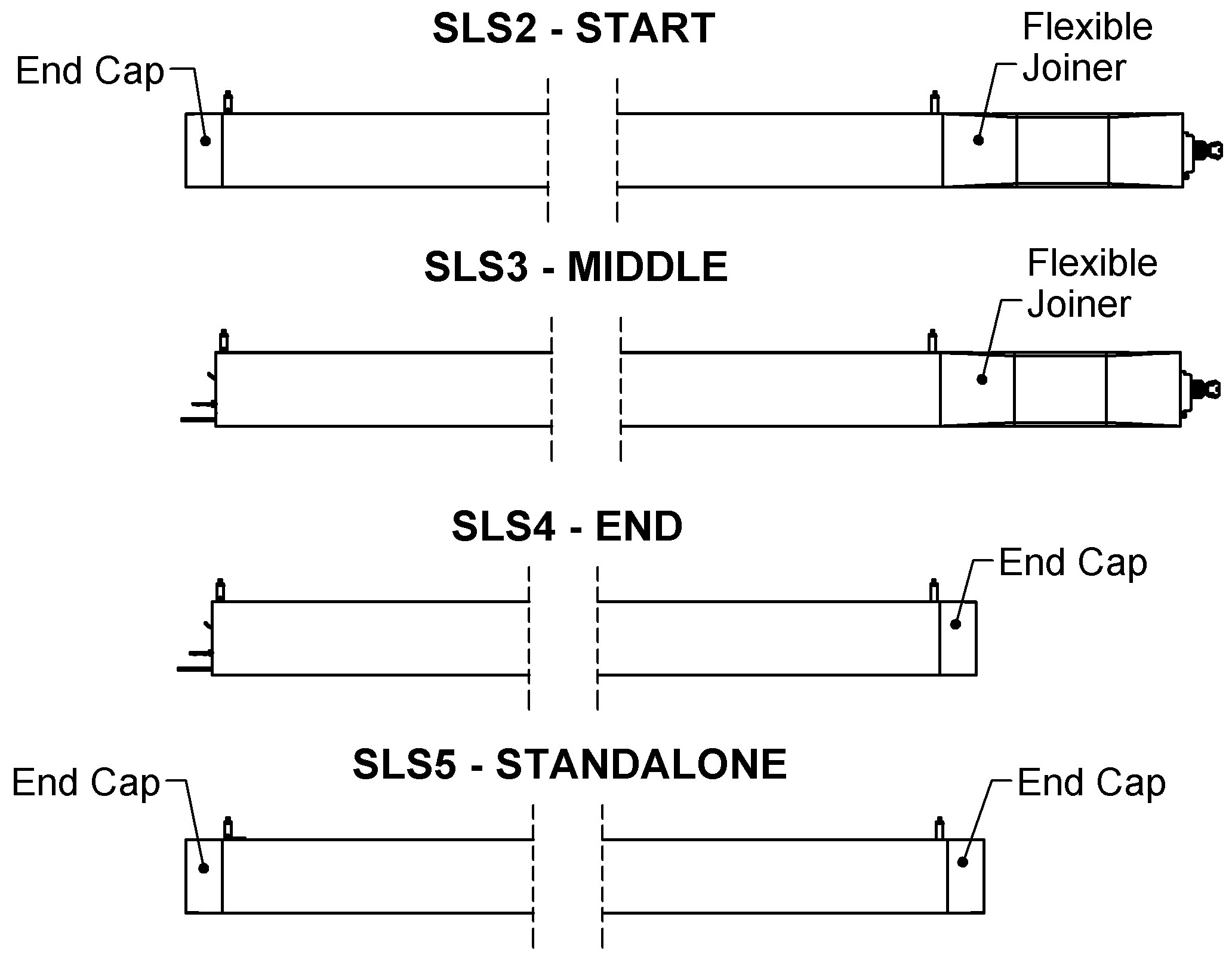

BEND-IT is a highly adaptable lighting system built around a flexible joiner that bends up to 360 degrees in any horizontal direction, enabling smooth transitions and continuous, flowing layouts. This flexibility allows the fixture to respond naturally to architectural conditions, supporting expressive runs and organic compositions without breaking visual continuity. Composed of sectional lengths from 2’ to 50’ using Start, Middle, and End sections, the system supports a wide range of configurations while maintaining a consistent dimensional profile. Finished in Satin Black with curved endcaps, BEND-IT integrates cleanly with architectural elements and contributes to comfortable, well-balanced environments.

Downloads

Tech Specs

Body

Powder-coated aluminum.

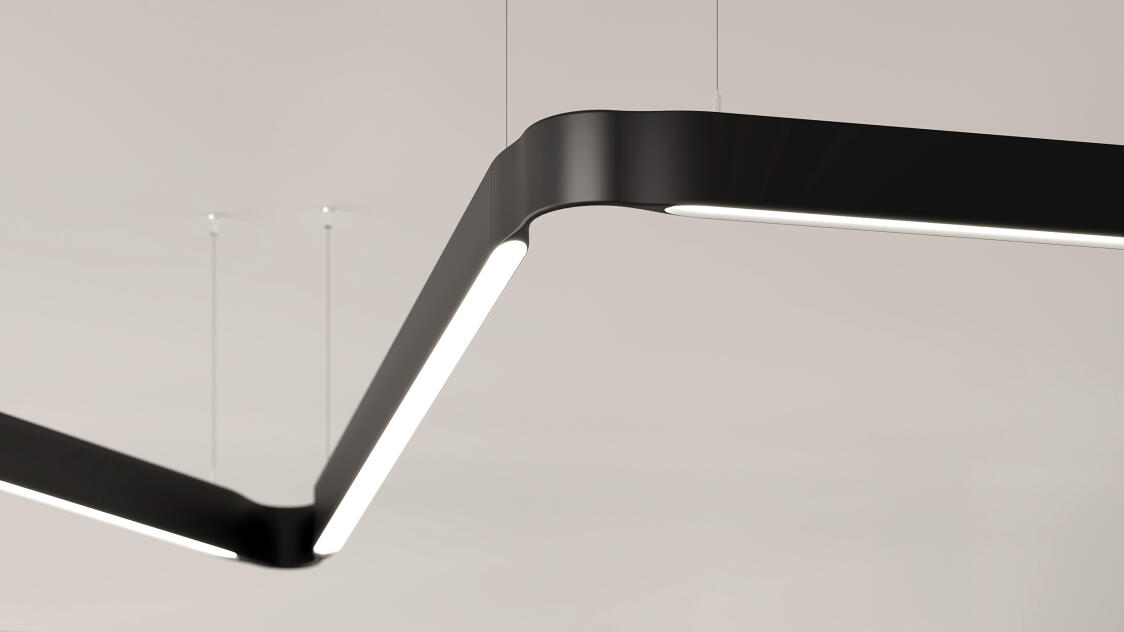

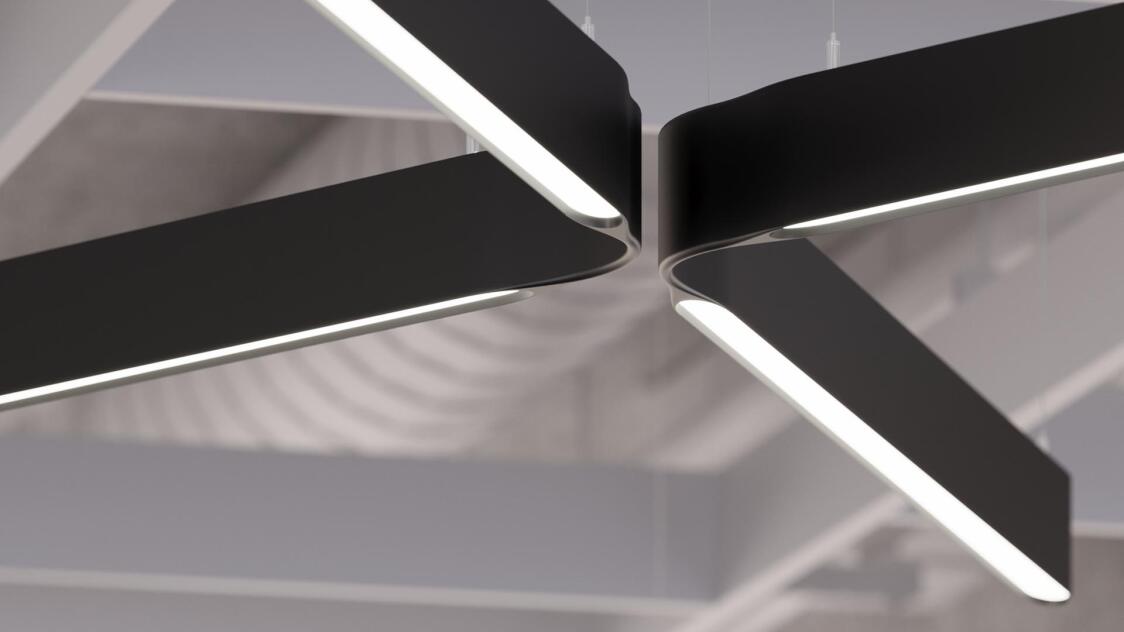

Flexible Joiner

Painted silicone.

Suspension

Steel cables.

Power cable

Silver braided.

Drivers

HPF electronic drivers for 120-277V, 347 (EU-240V). The driver is integral to the fixture housing.

Lens

Opal acrylic.

PoE

Can be integrated into your data network via Power over Ethernet (PoE) connectivity.

Mechanical

Luminaires mount directly over J box (by others).

Integral Emergency system

Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The self contained system includes the inverter module, NiCad batteries, LED charge indicator and test switch (NA only). Not available with a 347V supply.

Sensors

Compatible with Avi-On, Casambi, Enlighted, Lutron Vive, nLight, NX Lighting Controls, Osram, Philips, and others. Consult factory.

Reported L70 @25°C (77°F)

> 102,000 hrs @ 1800 lumens/ft (5900 lumens/m)

Estimated L70 @25°C (77°F)

> 245,000 hrs @ 1800 lumens/ft (5900 lumens/m)

Delivered lumens

Delivered lumens & LPW based on 4000K CRI 80+

Approvals

Damp Rated.

Designed by

Serge Cornelissen

Design

US Design Patent Pending.

Seismic Bracing

Seismic bracing kits are available to meet compliance requirements. Consult the factory for details.

Sustainability

Designed for on-site LED board, driver, and optic replacement. Contact the factory for maintenance documentation.

Product Configurator

Qty.

Product Code

qty

BNDP / DD3 / FA61
