Belaro Reflector™

General Specification

Body and trim: Steel and aluminum.

Finish: Powder coated Silver Metallic.

Suspension: Twin aircraft cables.

Power cable: Silver braided.

Reflector: High purity aluminum, specular finish with vertical facets.

Upper diffuser: UV stabilized acrylic.

Decorative disc: 6mm/0.25" glass with a polished edge and a sandblasted finish.

Decorative ring: 6mm/0.25" green tint, acrylic (faux glass) with a polished edge and a sandblasted finish.

Drivers: HPF electronic, 120/277V (EU-240V). 0-10V, 1% dimming standard.

Remote Emergency: Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The remote system includes the inverter module, NiCad batteries and a remote wall/ceiling LED charge indicator and test switch (NA only) Maximum distance between wall/ceiling plate and luminaire is 4.5m/15’. Test switch fits a single gang box (not supplied).

Mechanical: Luminaires mount to a junction box (by others - North America only).

L70 @25oC (77oF): > 50,000 hrs.

Delivered Lumens: Delivered lumens and LPW based on 3000K (min 80 CRI) and FR.

See Approvals
Suspended Direct Suspended Direct/Indirect Direct Direct-indirect

specify luminaire

LUMINAIRE
Code Power (LED) Delivered lms LPW Height (H) Diameter (D)
27W 2174 79 17.5" 12.9"
54W 4216 78 22" 16"
65W 8208 125 27" 22"
91W 11107 122 27" 22"

SPECIFY CCT

CCT
3000K (min 80 CRI)
3500K (min 80 CRI)
4000K (min 80 CRI)

Specify Reflector

Specify Reflector

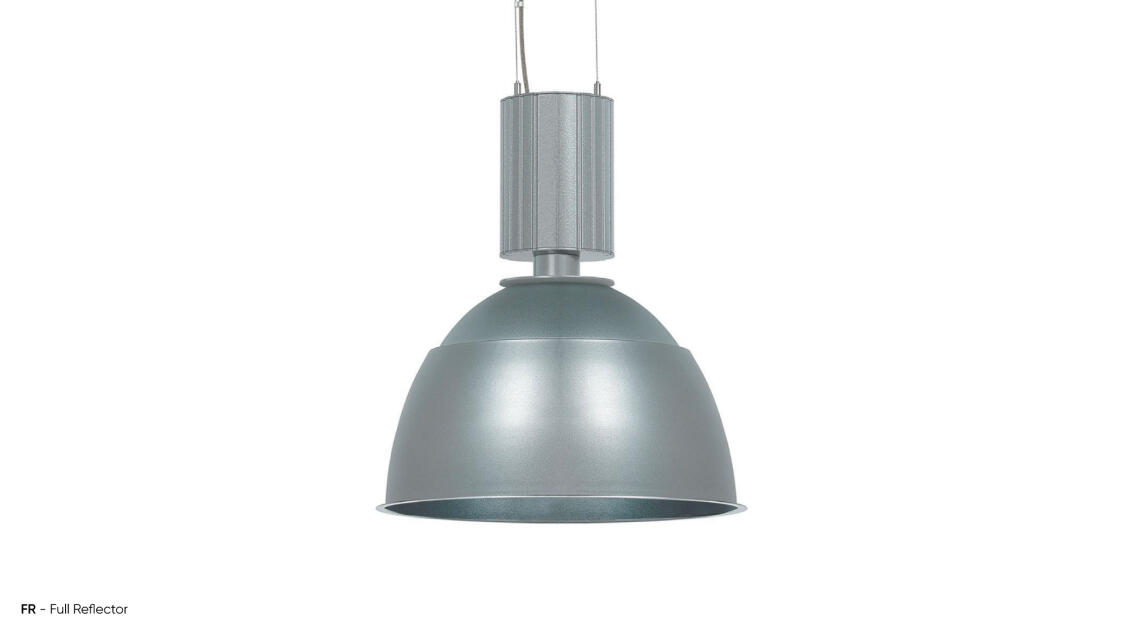

Full Reflector

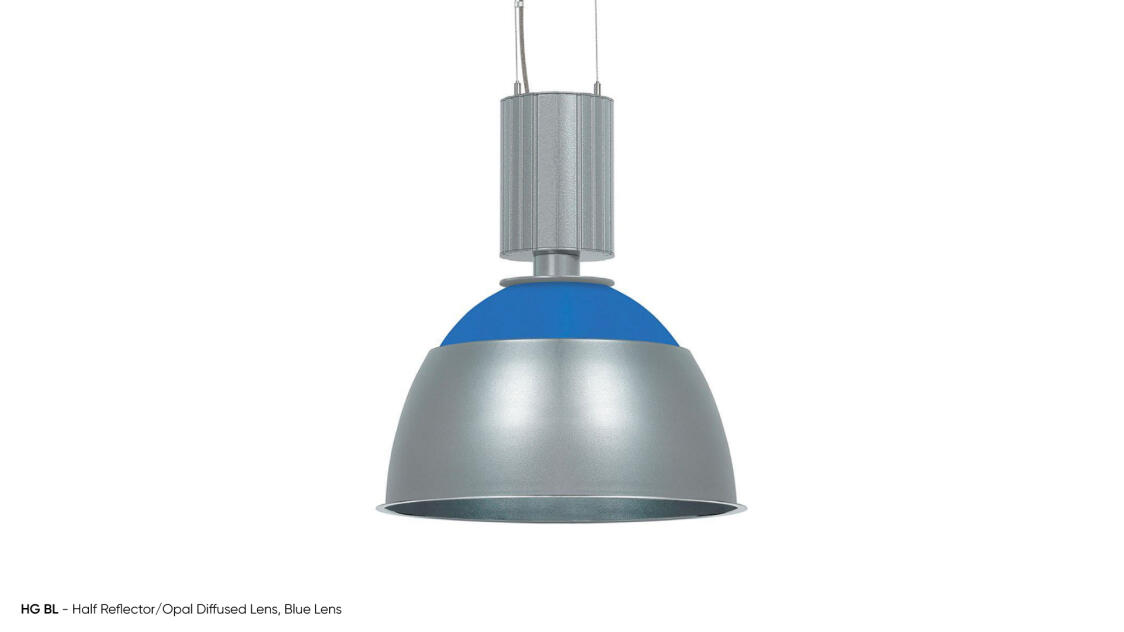

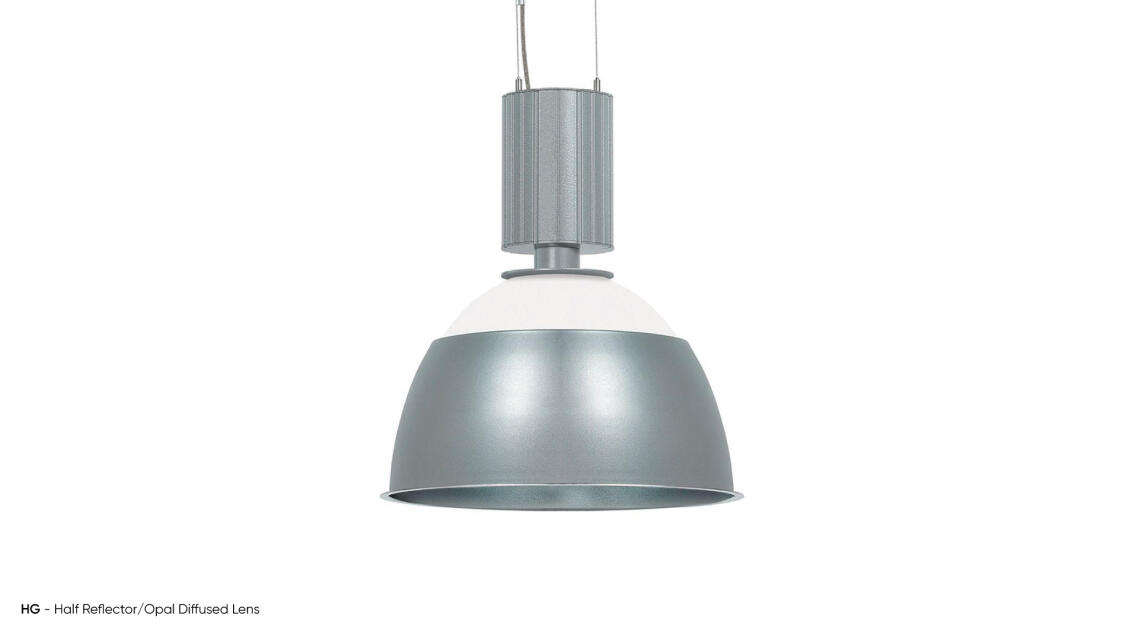

Half Reflector/Opal Diffuser

SPECIFY DECORATIVE OPTIONS

DECORATIVE OPTIONS

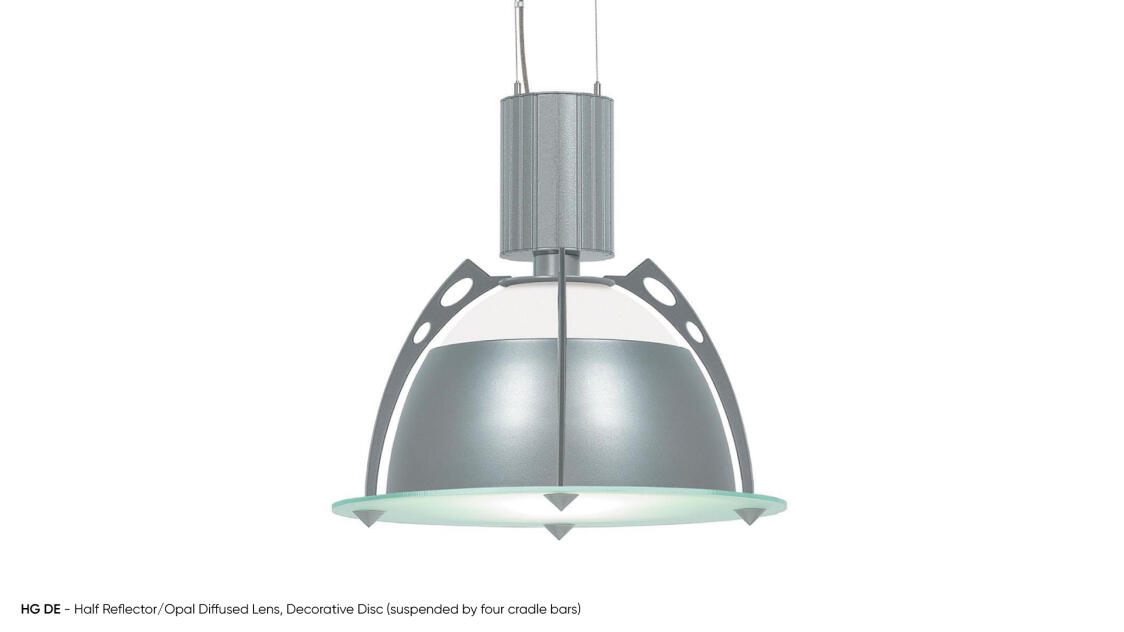

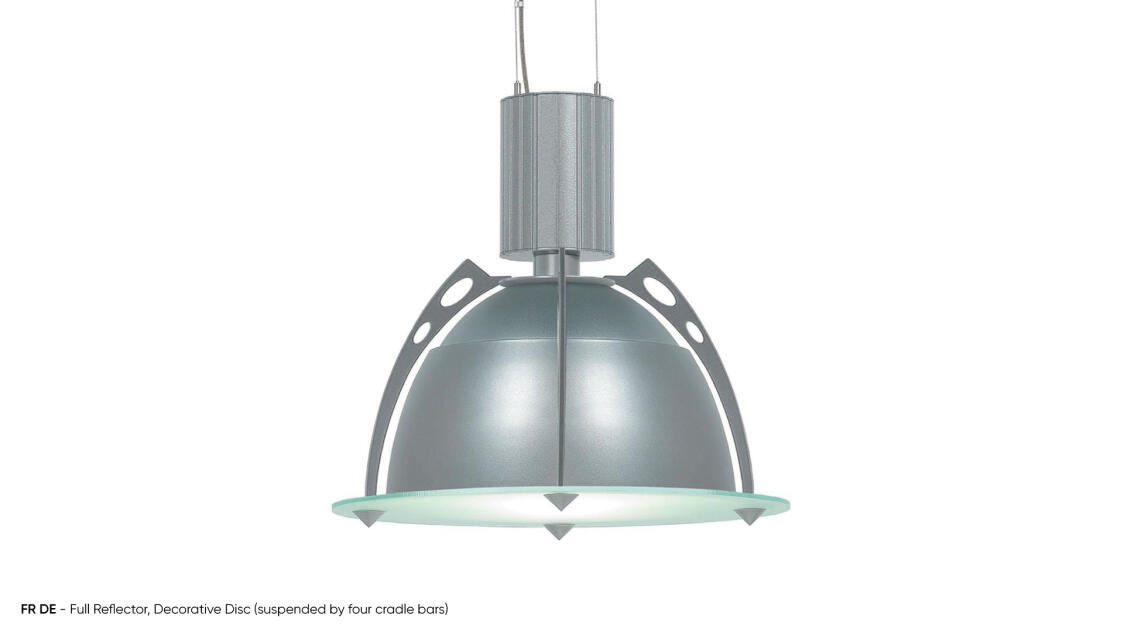

Decorative Disc (suspended by four cradle bars)

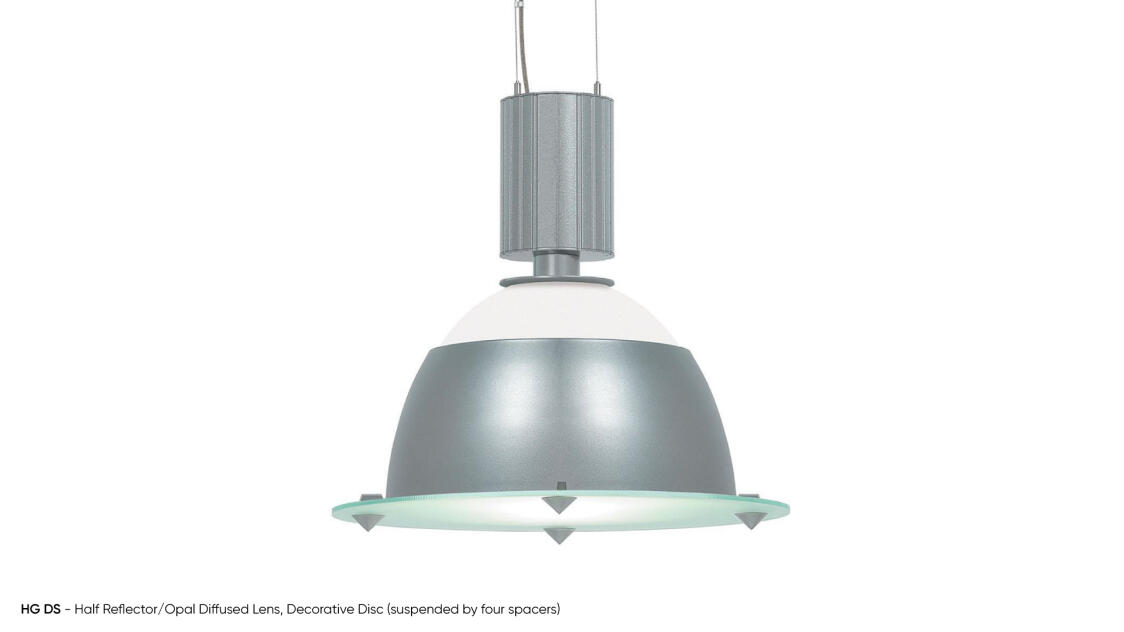

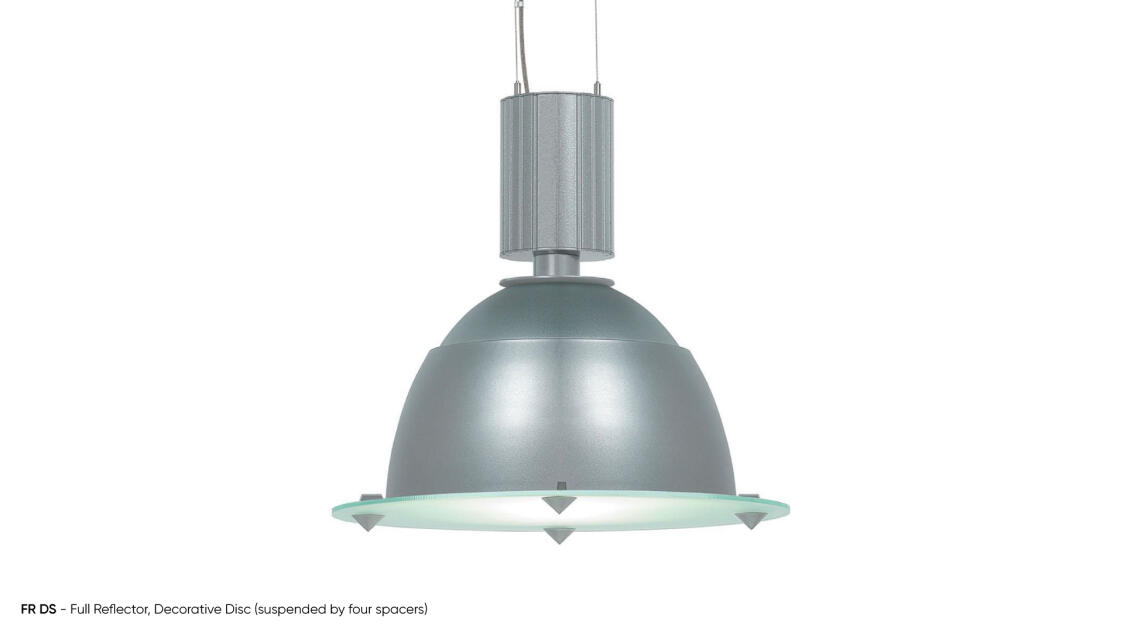

Decorative Disc (suspended by four spacers)
Decorative Ring (suspended by four cradle bars)

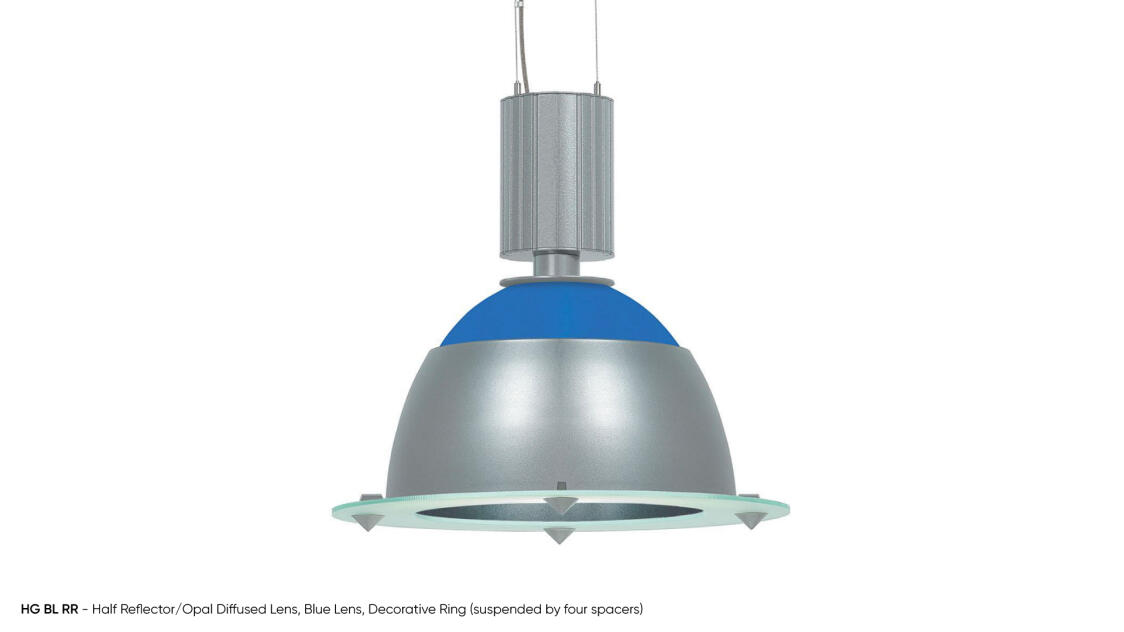

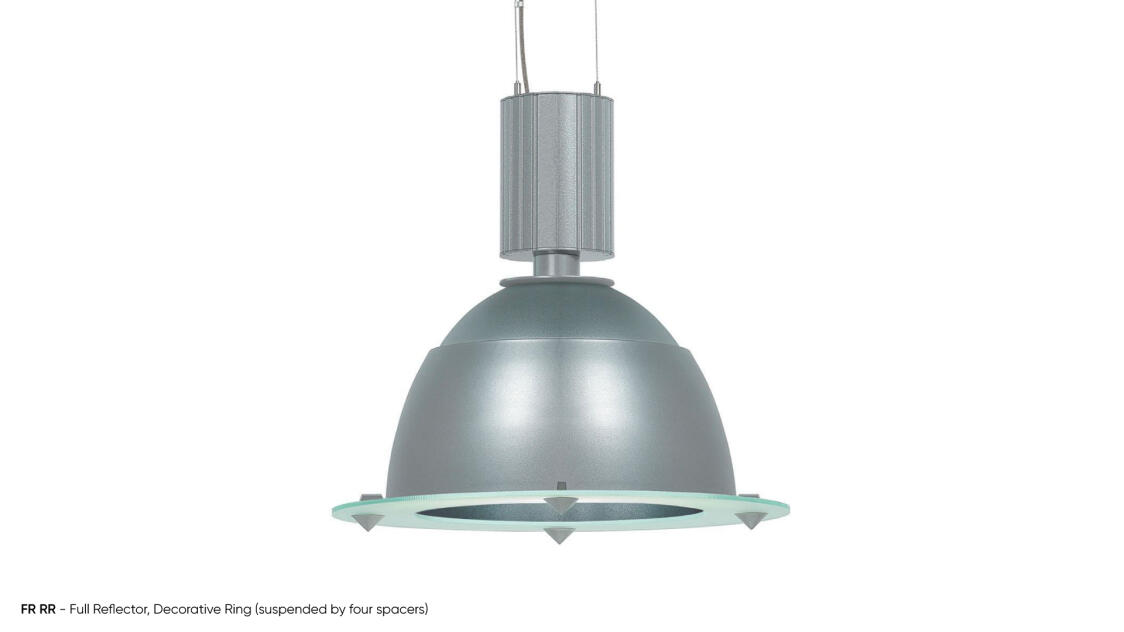

Decorative Ring (suspended by four spacers)

SPECIFY OPTIONS
