Boggle™ Continuous Recessed

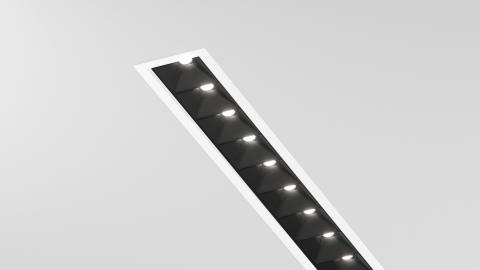

BOGGLE brings brains and brawn to professional lighting. Miniature downlights assemble into a linear cluster to provide optimum performance with superior optical definition, a 60° cutoff angle, better light efficiency and color rendering, and glare-reducing baffles. Improved color rendering balance, color temperature tunability, and a Unified Glare Rating below 9 make BOGGLE especially suitable for workspaces. The curved baffles in black or white present a tailored aesthetic that adds sophistication to the space.

DOWNLOAD SPEC SHEET

Imperial
Imperial Metric

Downloads

Tech Specs

Body

Aluminum.

Baffle

Black or White acrylic.

PoE

Can be integrated into your data network via Power over Ethernet (PoE) connectivity.

Drivers

HPF electronic drivers for 120-277V, 347V, (EU 240V). The driver is integral to the fixture housing.

Integral Emergency system

Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The self contained system includes the inverter module, NiCad batteries, LED charge indicator and test switch (NA only). Not available with a 347V supply.

Tunable White

Provides the ability to change the color appearance of light from warm to neutral to cool, to adapt to the needs of the occupant throughout the course of the day.

Reported L70 @25°C (77°F)

>108000 hrs @1000 lms/ft (3300 lm/m)

Estimated L70 @25°C (77°F)

>196000 hrs @1000 lms/ft (3300 lm/m)

Delivered lumens

Delivered lumens & LPW based on 4000K CRI 90+

Approvals

Damp Rated.

Design

US Design Patent Pending.

Approvals

  • ETL
  • CE
  • Grounding
  • Damp Location (Indoor Use)
  • Mounting Suited On Flammable Surfaces
  • IP 20

Mounting & Optics

Icon for Recessed Recessed
Icon for Direct Direct
Icon for Declare Declare
Icon for PoE PoE
Icon for Tunable White Tunable White

Product Configurator

BGGR1R / CR90

Luminaire

Length of Run

Max Length Per Section

Baffle

Lm/ft

CRI

CCT

Voltage

Dimming

Ceiling Type & Trim

Ceiling Trim Finish

Emergency

Chicago Plenum

Product Family

Beta-Calco envisions a world where beauty is a baseline standard for the built environment. We drive towards more dynamic and impressive solutions with robust product development.
Boggle™ Continuous
Boggle™ Ceiling
Boggle™ Continuous Recessed
