Boggle™
Suspended

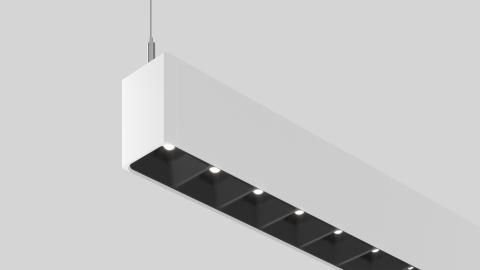

BOGGLE brings brains and brawn to professional lighting. Miniature downlights assemble into a linear cluster to provide optimum performance with superior optical definition, a 60° cutoff angle, better light efficiency and color rendering, and glare-reducing baffles. Improved color rendering balance, color temperature tunability, and a Unified Glare Rating below 9 make BOGGLE especially suitable for workspaces. The curved baffles in black or white present a tailored aesthetic that adds sophistication to the space.

Features

Body

Aluminum.

Finish

Powder coated.

Suspension

Steel cables.

Power cable

Silver braided.

Tunable White

Provides the ability to change the color appearance of light from warm to neutral to cool, to adapt to the needs of the occupant throughout the course of the day.

PoE

Can be integrated into your data network via Power over Ethernet (PoE) connectivity.

Drivers

HPF electronic drivers for 120-277V, 347 (EU-240V).

Baffle

Black or White acrylic. Gloss and Matte finishes.

Reported L70 @25°C (77°F)

>108000 hrs @2400 lms/ft (7900 lm/m)

Estimated L70 @25°C (77°F)

>196000 hrs @2400 lms/ft (7900 lm/m)

Delivered lumens

Delivered lumens & LPW based on 4000K CRI 90+

Mechanical

Luminaires mount directly over J box (by others).

Integral Emergency system

Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The self contained system includes the inverter module, NiCad batteries, LED charge indicator and test switch (NA only). Not available with a 347V supply.

Approvals

Damp Location (Indoor use only).

Design

US Design Patent Pending.

Mounting and Optics

Icon for Suspended Direct Suspended Direct
Icon for Suspended Direct/Indirect Suspended Direct/Indirect
Icon for Direct Direct
Icon for Indirect Indirect
Icon for PoE PoE
Icon for Tunable White Tunable White

Downloads

Approvals

  • ETL
  • CE
  • Grounding
  • Damp Location (Indoor Use)
  • Mounting Suited On Flammable Surfaces
  • IP 20

Share this fixture

Configurator

You selected
CR90

Length of Run

Uplight Diffuser (Batwing Distribution)
