Book II™
Flush

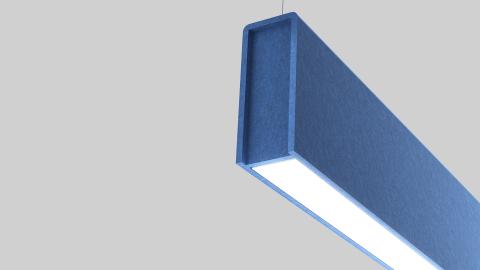

BOOK II is a hybrid solution that combines exceptional lighting performance with sound comfort.  Our classic linear profile is finished with acoustic panels with an NRC rating of 0.8.  Three optics are available to attain the appropriate light levels and effects, while creating a comfortable environment.  Suitable for spaces that require proper ambient light with minimal sound reverberation such as open offices, labs, gyms, and design studios.

Features

Body

Aluminum.

Finish

Powder coated.

Suspension

Steel cables.

Power cable

Silver braided.

Diffuser

Opal acrylic.

Drivers

HPF electronic drivers for 120-277V, 347 (EU-240V).

PoE

Can be integrated into your data network via Power over Ethernet (PoE) connectivity.

BIOS

For circadian lighting, consult factory.

Integral Emergency system

Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The self contained system includes the inverter module, NiCad batteries, LED charge indicator and test switch (NA only). Not available with a 347V supply.

Acoustic Panels NRC Rating

0.80.

Acoustic Panels Class A Fire Rating
ASTM E-84 material.

Acoustic Panels Material

100% recycled polyester fiber (PET).

Acoustic Panels Thickness
12mm (0.5").

Approvals

Damp Location (Indoor use only).

Delivered lumens
Delivered lumens & LPW based on 4000K CRI 90+.

Reported L70 @25°C (77°F)

> 60,000 hrs @ 2000 lumens/ft (6000 lumens/m)

Estimated L70 @25°C (77°F)

> 165,000 hrs @ 2000 lumens/ft (6000 lumens/m)

Mechanical

Luminaires mount directly over J box (by others).

Design

US Design Patent Pending.

Designed by

Mirko Rotondi

Mounting and Optics

Icon for Suspended Direct Suspended Direct
Icon for Acoustic Acoustic
Icon for Direct DD1 Direct DD1
Icon for Direct DD2 Direct DD2
Icon for Direct DD3 Direct DD3
Icon for PoE PoE

Downloads

Approvals

  • ETL
  • CE
  • Grounding
  • Damp Location (Indoor Use)
  • Mounting Suited On Flammable Surfaces
  • IP 20

Share this fixture

Configurator

You selected
BKFP1P / CR90
