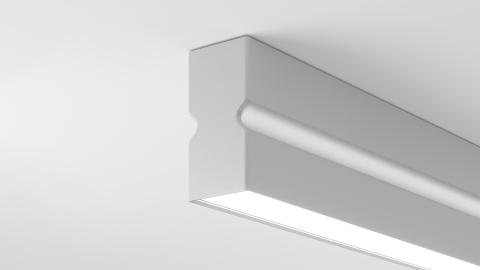

Flute™ Ceiling

FLUTE's shape shifts the traditional block form factor into a cutting-edge cyber style. The fluting along the flank emits a side glow that radiates an electrifying detail and provides a lightweight appearance to an already compact form factor. The hourglass contour jacks up profile design with an aerodynamic quality. FLUTE is the optimal complement for tech-age modern design and interiors with intricate detailing.

DOWNLOAD SPEC SHEET

Tech Specs

Body

Aluminum

Finish

Powder coated.

Diffuser

Opal acrylic. Supplied with a seamless roll (up to 24ft), to be trimmed and installed in the field.

Drivers

HPF electronic drivers for 120-277V, 347V (EU-240V). The driver is integral to the fixture housing.

PoE

Can be integrated into your data network via Power over Ethernet (PoE) connectivity.

BIOS

For circadian lighting, consult factory.

Mechanical

Luminaires mount directly over J box (by others).

Tunable White

Tunable white available, consult factory.

Remote emergency

Emergency option provides a 1.5 hour (3hours for EU) emergency lighting facility. The remote system includes the inverter module, NiCad batteries and a remote wall/ceiling LED charge indicator and test switch. Maximum distance between wall/ceiling plate and luminaire is 15' (4.5m). Test switch fits a single gang box (not supplied).

Wood Slat Ceiling

For wood slat ceiling integration, consult factory.

Reported L70 @25°C (77°F)

>108000 hrs @3000 lms/ft (9800 lm/m)

Estimated L70 @25°C (77°F)

>196000 hrs @3000 lms/ft (9800 lm/m)

Delivered lumens

Delivered lumens & LPW based on 4000K CRI 80+



Approvals

Damp Rated.

Designed by

Serge Cornelissen.

Design

US Pat. No. D967,491  US Pat. No. D969,389

Approvals

  • ETL
  • CE
  • Grounding
  • Damp Location (Indoor Use)
  • Mounting Suited On Flammable Surfaces
  • IP 20

Mounting & Optics

Icon for Ceiling Direct Ceiling Direct
Icon for Direct DD2 Direct DD2
Icon for Direct DD4 Direct DD4
Icon for Declare Declare
Icon for PoE PoE
