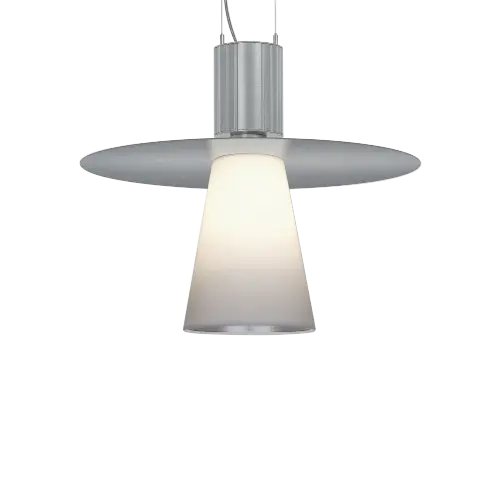

Kiora II™

WEB PIN™162

General Specification

Diffuser: Injection moulded opal acrylic with an etched lower band.

Suspension: Twin stainless steel cables.

Power cable: Silver braided.

Finish: Silver Metallic powder coated paint.

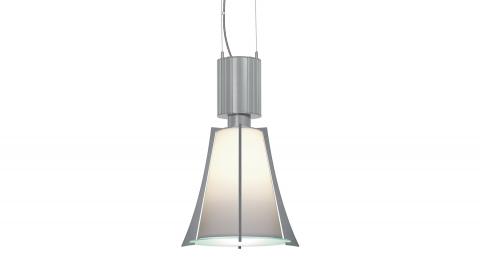

Reflector (optional): Aluminum, frosted finish with vertical facets.

Decorative disc/ring: 6mm/0.25" green tint, clear acrylic with a polished edge and an etched face.

Drivers: HPF electronic, 120/277V (EU-240V). 0-10V, 1% dimming standard.

Emergency systems:

Integral: Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The self contained system includes the inverter module, NiCad batteries, LED charge indicator and test switch (NA only). Integral emergency luminaires have a 50mm/2" extended ballast housing. Not available with a 347V supply.

Remote: Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The remote system includes the inverter module, NiCad batteries and a remote wall/ceiling LED charge indicator and test switch (NA only) Maximum distance between wall/ceiling plate and luminaire is 4.5m/15’. Test switch fits a single gang box (not supplied).

Mechanical: Mounts directly to a junction box (by others - North America only). Mounting hardware (by others).

L70 @25oC (77oF): > 50,000 hrs.

Delivered Lumens: Delivered lumens & LPW based on 3000K (min 80 CRI) for White LEDs only.

See Approvals
Suspended Direct/Indirect Suspended Direct/Indirect Direct-indirect Direct-indirect

specify luminaire

Code Power (LED) Delivered lms LPW Weight
44 1001 30W 2070 77 17.6lb

specify CCT

Specify Cradle Arms

Specify Dimming

Specify Options

Specify Options
