Midi Arc H™

General Specification

Product overview:

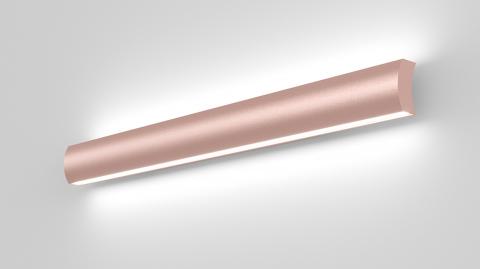

Midi Arc H's curved-edge design brings a softer architectural profile to the space.  Featuring two new signature finishes; White Gloss and Polished Aluminum mirrored.

Body: Aluminum.

Finish: Powder coated or polished aluminum.

Diffuser: Frosted acrylic.

Drivers: HPF electronic for 120-277V (EU-240V).

Remote emergency: Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The remote system includes the inverter module, NiCad batteries and a remote wall/ceiling LED charge indicator and test switch (NA only). The maximum distance between wall/ceiling plate and luminaire is 4.5m/15’. Test switch fits a single gang box (not supplied).

Mechanical: Luminaires mount directly over a horizontally installed 2"x3" switch box (by others - North America only).

L70 @25oC: > 60,000 hrs.

Delivered lumens: Delivered lumens & LPW based on 4000K (min 80 CRI).

Approvals: Damp Location (Indoor use only).

See Approvals
