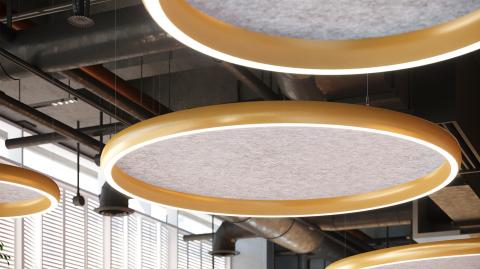

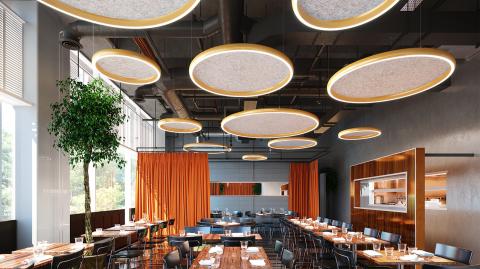

Midi Arc Ring™ Suspended

The curved edge softens the classic architectural form and raises the impact of distinctive spaces.  Giving more curve to the curve, the smooth edges of MIDI ARC add a sleek and enticing appearance.

DOWNLOAD SPEC SHEET

Imperial
Imperial Metric

Downloads

Tech Specs

Finish

Powder coated or polished.

Suspension

Steel cables.

Power cable

Silver braided.

Diffuser

Opal acrylic.

Remote emergency

Emergency option provides a 1.5 hour (3hours for EU) emergency lighting facility. The remote system includes the inverter module, NiCad batteries and a remote wall/ceiling LED charge indicator and test switch. Maximum distance between wall/ceiling plate and luminaire is 15' (4.5m). Test switch fits a single gang box (not supplied).

Remote mounting of drivers

Wire size 18 AWG - max distance (from fixture to drivers) 40' 12.2m), wire size 16 AWG - max distance 60' (18.3m), wire size 14 AWG - max distance 90' (27.4m). Drivers must be accessible after installation.

Drivers

HPF electronic drivers for 120-277V (EU-240V). Drivers are either remote mounted or integral to the canopy depending on the size of the fixture.

PoE

Midi Arch Ring can integrate into your data network via Power over Ethernet (PoE) connectivity.

Acoustic Panels NRC Rating

0.80.

Acoustic Panels Class A Fire Rating

ASTM E-84 material.

Acoustic Panels Material

100% recycled polyester fiber (PET).

Acoustic Panels Thickness

12mm (0.5").

Mechanical

Luminaires mount directly over J box (by others).

Delivered lumens

Delivered lumens & LPW based on 4000K CRI 80+

Sensors

Consult factory regarding sensor compatibility.

L70 @25°C (77°F)

> 60,000 hrs.

Approvals

Damp Rated.

Design

US Pat. No. D898,979.

Approvals

  • ETL
  • CE
  • Grounding
  • Damp Location (Indoor Use)
  • Mounting Suited On Flammable Surfaces
  • IP 20

Mounting & Optics

Icon for Suspended Direct Suspended Direct
Icon for Suspended Direct/Indirect Suspended Direct/Indirect
Icon for Declare Declare
Icon for PoE PoE

Product Configurator

V1 / AP00 / E0 / CS1

Luminaire

Lumens (Direct)

Lumens (Indirect)

CRI

CCT (Direct)

CCT (Indirect)

Voltage

Suspension

Dimming

Fixture Finish

Canopy Finish

Acoustic Panel Finish

Emergency

Circuit

Product Family
