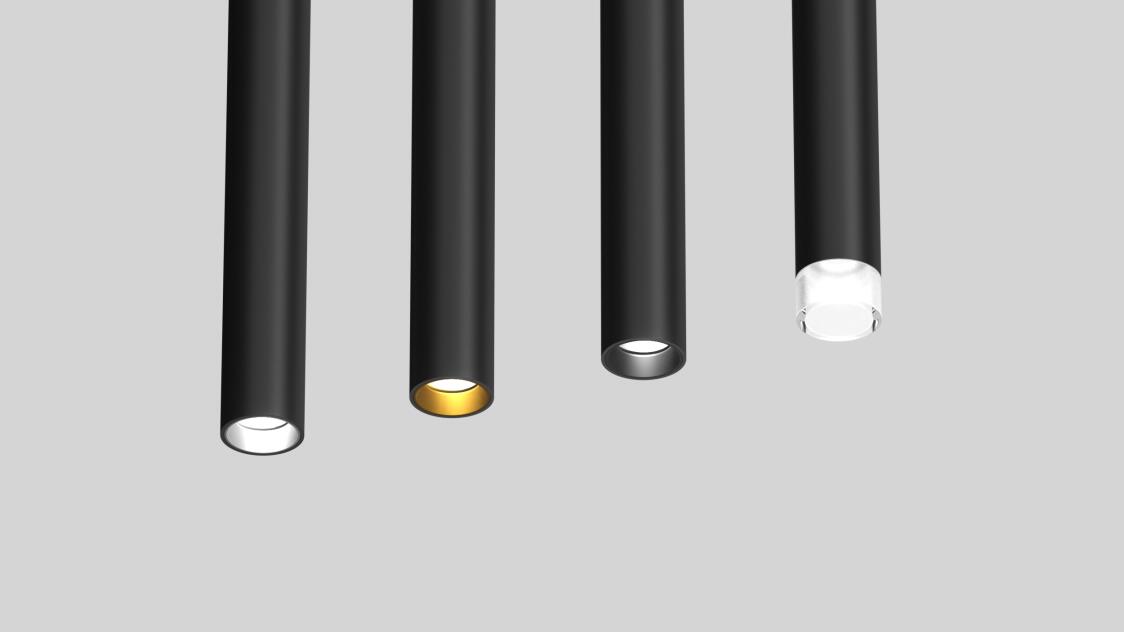

Micro Cylinder 1.5™

Micro Cylinder dabs elegance to minimalism.  Lustrous anodized bezels revamp a modest shape into a dashing downlight. With lengths ranging from 12” to 36”, unique arrangements can be configured to create remarkable ceiling effects. The light output is optimized according to the length of the cylinder allowing more lumen package options for various performance requirements.  Regressed optics combined with bezels and a slender profile offer visual and aesthetic comfort.

Features

Body

Extruded aluminum.

Finish

Powder coated.

Bezel

Silver, black or gold anodized.

Drivers

Remote, HPF electronic drivers for 120-277V, 347V (EU-240V).

Mechanical

Luminaires mount directly over J box (by others).

Reported L70 @25°C (77°F)

> 55,000 hrs

Estimated L70 @25°C (77°F)

> 200,000 hrs

Delivered lumens

Delivered lumens & LPW based on 4000K CRI 90+.

Approvals

Damp Location (Indoor use only).

Design

US Design Patent Pending.

Mounting and Optics

Icon for Ceiling Direct Ceiling Direct
Icon for 20° 20°
Icon for 45° 45°

Downloads

Approvals

  • ETL
  • CE
  • Grounding
  • Damp Location (Indoor Use)
  • Mounting Suited On Flammable Surfaces
  • IP 20
