Scala™

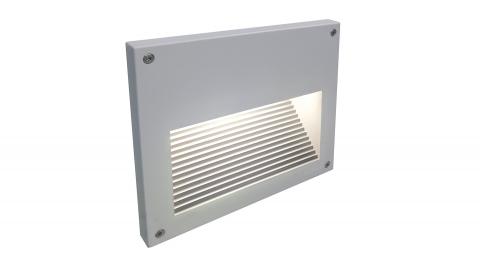

SCALA is designed to blend into the architecture while illuminating steps and pathways. With asymmetric light distribution, Scala makes efficient use of the light output directing it to exactly where it is required. There are 4 form factors with various orientations available to suit the exterior aesthetics, as well as 3 polyester-based finishes. Turtle-friendly, amber LED is also available.

Features

Housing

Low copper, die-cast aluminum highly resistant to oxidation.

Finish

Powder coated polyester highly resistant to UV and oxidation.

Diffuser

3mm/0.12" sodium calcium tempered glass.

Gasket

Silicone.

External Screws

A4 stainless steel treated with highly antioxidant water-repellent lubricating solution to ensure easy opening.

Cable Entry

Silicone cable gland for cables DIA 10-14mm/0.4-0.55".

Drivers

HPF electronic, 120-277V.

Rough-In Housing

Thermoplastic.

Mechanical

Recessed luminaire for wall mounting only into brick or concrete.

Delivered Lumens

Delivered lumens & LPW based on 3000K (min 80 CRI).

Mounting and Optics

Icon for Ext-Wall Recessed Uplight Ext-Wall Recessed Uplight
Icon for Ext-Wall Recessed Downlight Ext-Wall Recessed Downlight
Icon for Assymetrical Assymetrical

Downloads

Approvals

  • ETL
  • CE
  • Grounding
  • IP 65
  • Wet Location
