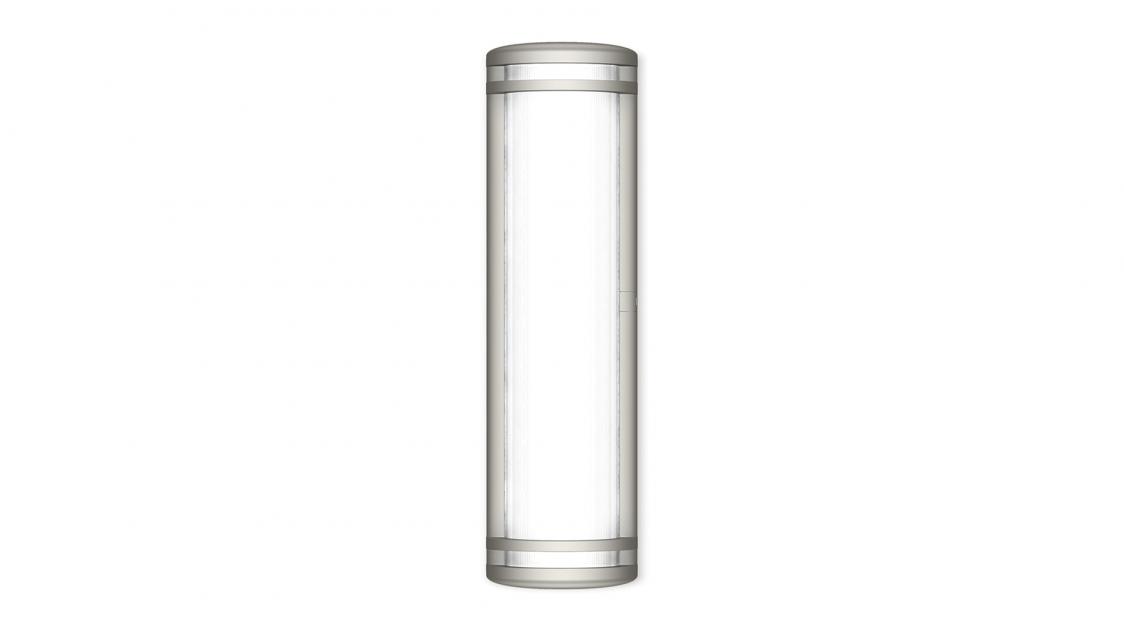

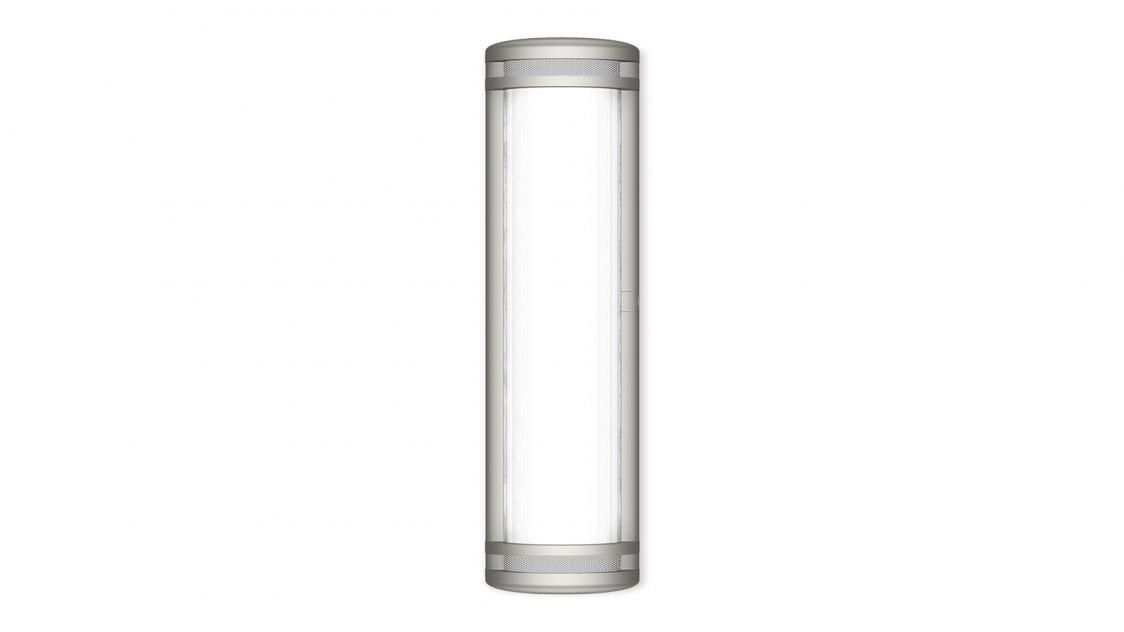

Sentinel II™

WEB PIN™709

General Specification

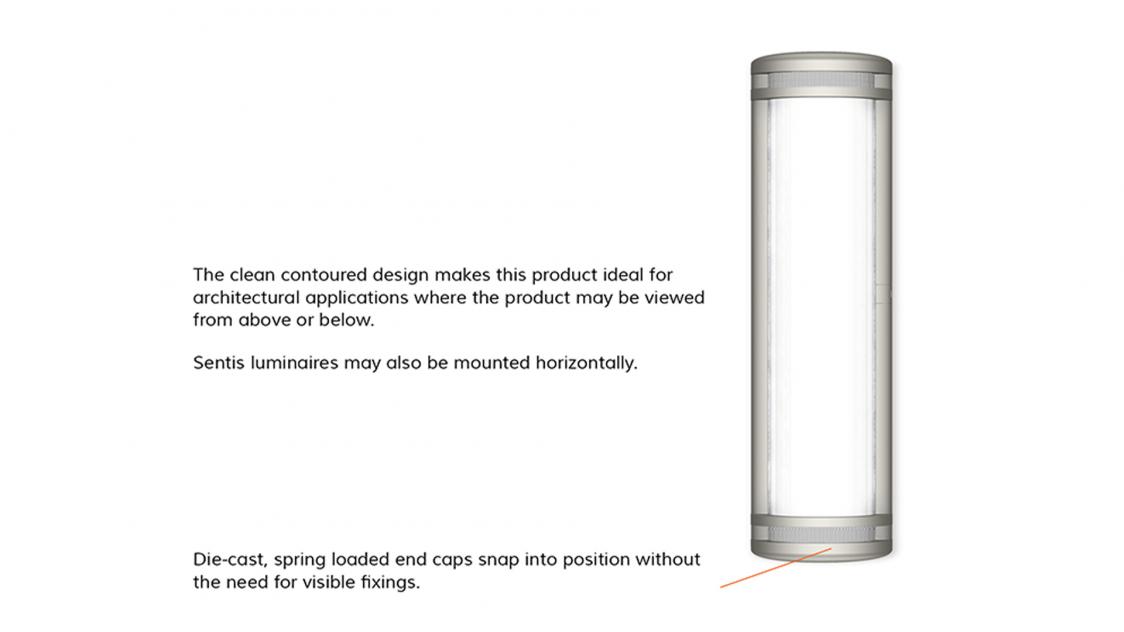

Housing: Die-cast and extruded (low copper) aluminium. Front housing hinges open for access and secures via a bolt hidden behind a spring loaded flap.

Finish: Exterior grade, metallic powder coated paint.

Gaskets: One piece silicone.

Reflector: Aluminium, white powder coated.

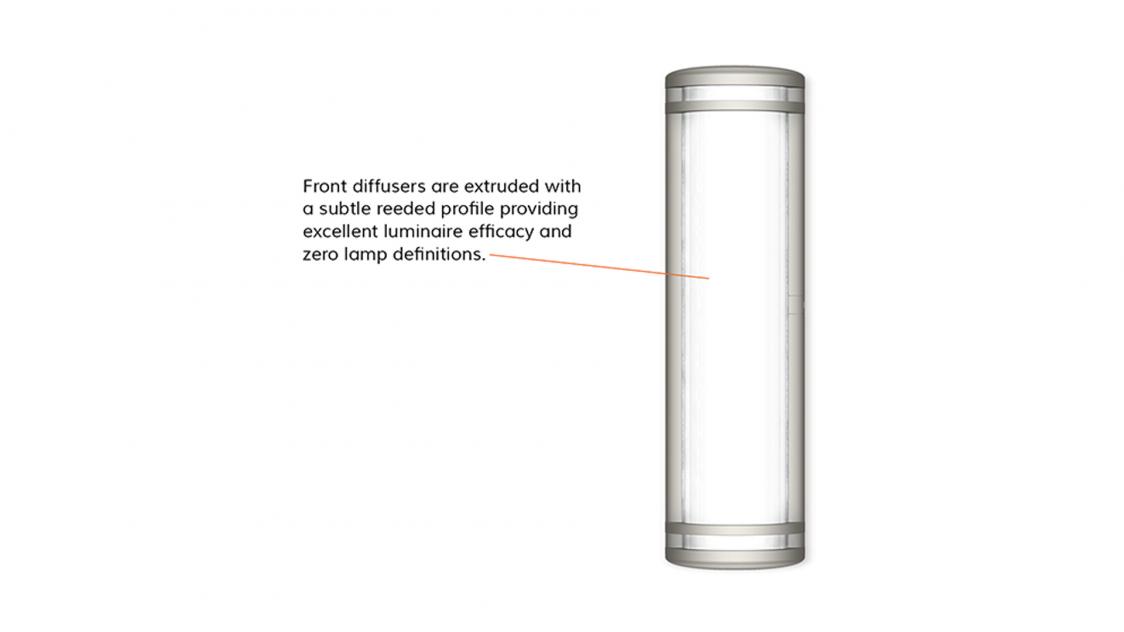

Diffuser: UV stabilised polycarbonate.

Drivers: HPF electronic, 120-277V (EU-240V), 0-10V Dimming (10%) for Direct Light Only. Up/Down light non-dimming.

Minimum Starting Temperature: -20°C.

Remote Emergency: Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The remote system includes the inverter module, NiCad batteries and a remote wall/ceiling LED charge indicator and test switch (NA only) Maximum distance between wall/ceiling plate and luminaire is 4.5m/15’. Test switch fits a single gang box (not supplied).

Mechanical: Mounts directly over a standard electrical junction box (by others - North America only).

Delivered Lumens: Delivered lumens & LPW based on 3000K (min 80 CRI).

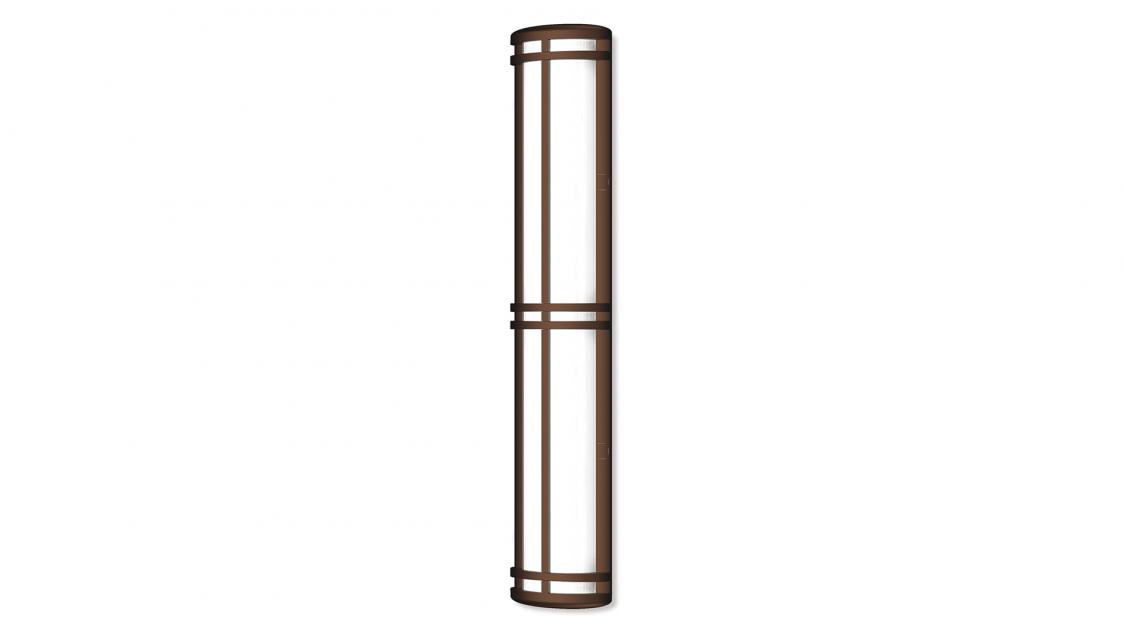

Note: Decorative perforated accents on Sentinel LED luminaires have very minimal illumination, they function as a shield for the LED optical housing within the luminaire.
See Approvals
Ext-Wall Ext-Wall

Specify Luminaire

Code Power (LED) CCT Delivered lms LPW Type (A) Type (B)
14W 3000K 1124 80 27"
14W 4000K 1205 86 27"
28W 3000K 2269 81 51.2"
28W 4000K 2430 87 51.2"

Specify Optional Downlight Module Illumination

Code Power (LED) Beam CCT Delivered lms
1 x 2W Down Narrow 3000K 121
1 x 4W Down Wide 3000K 170
1 x 2W Down Narrow 4000K 150
1 x 4W Down Wide 4000K 212

Specify Optional Uplight Module Illumination

Code Power (LED) Beam CCT Delivered lms
1 x 2W Up Narrow 3000K 121
1 x 4W Up Wide 3000K 170
1 x 2W Up Narrow 4000K 150
1 x 4W Up Wide 4000K 212

Specify Finish

Specify Options
