Triple™
Product Overview

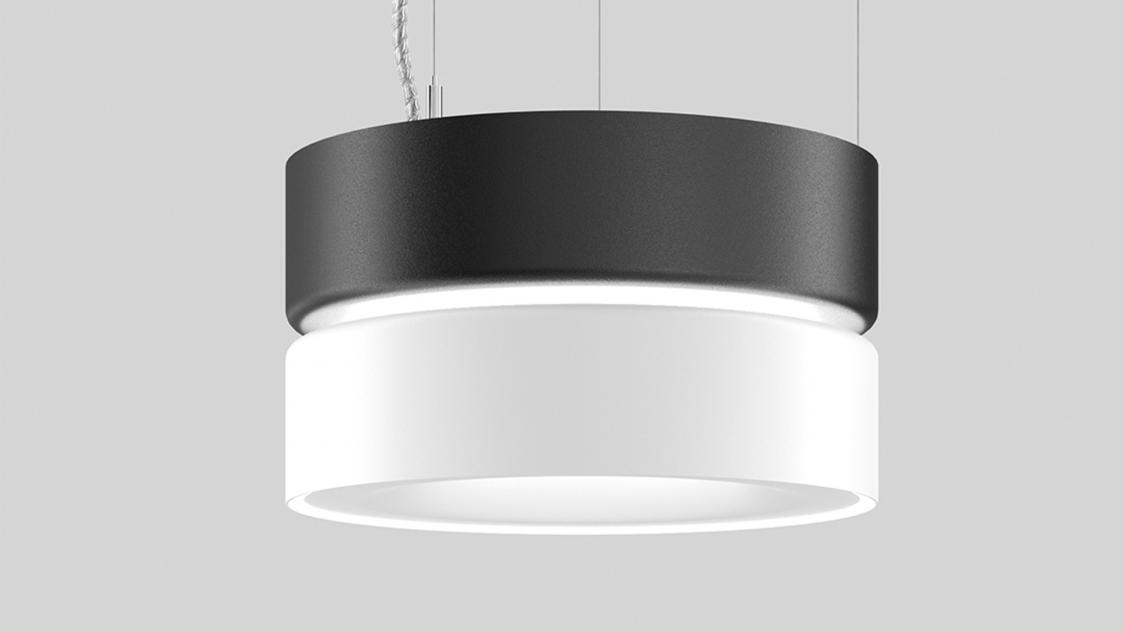

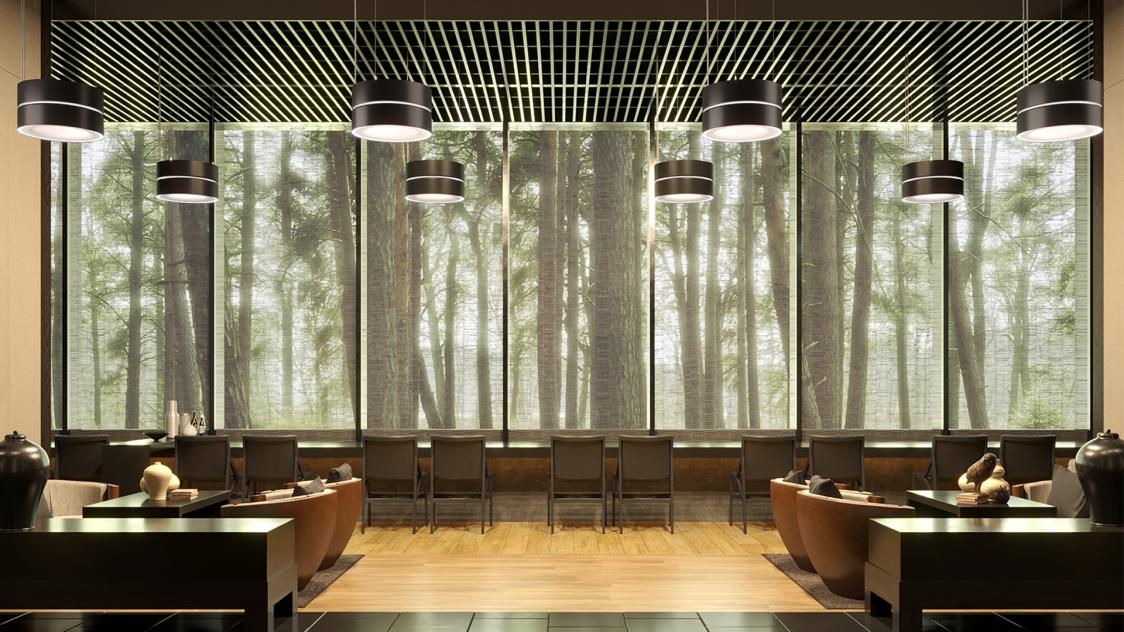

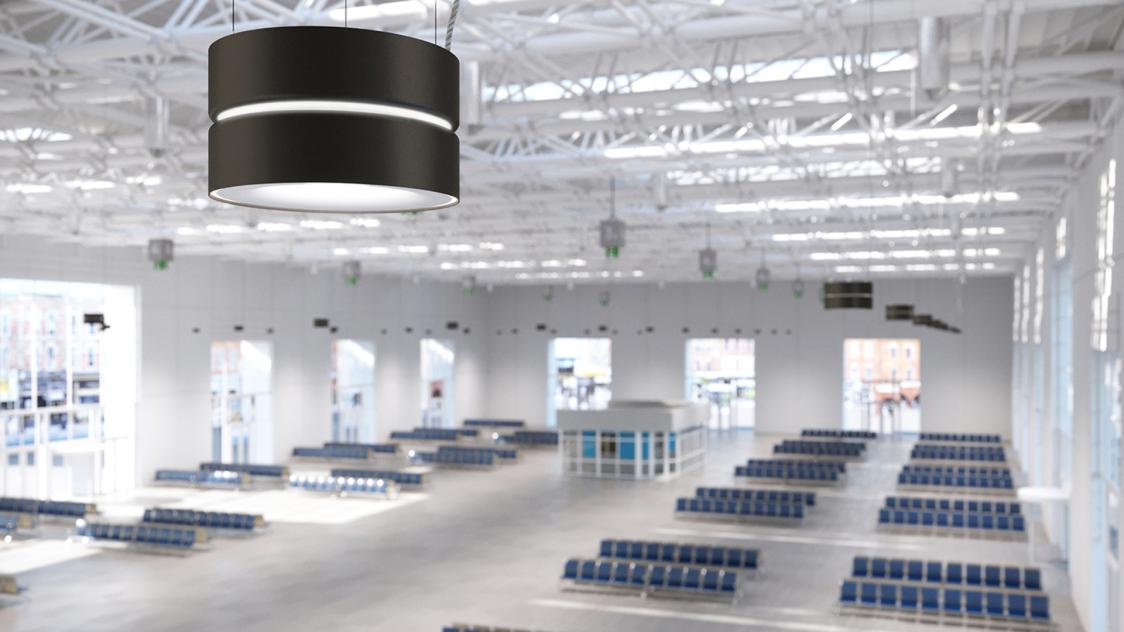

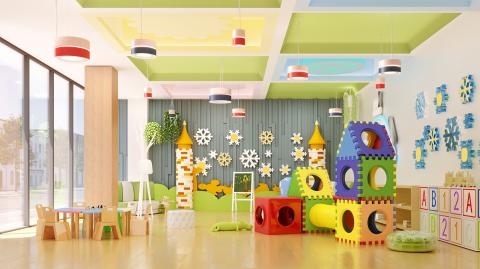

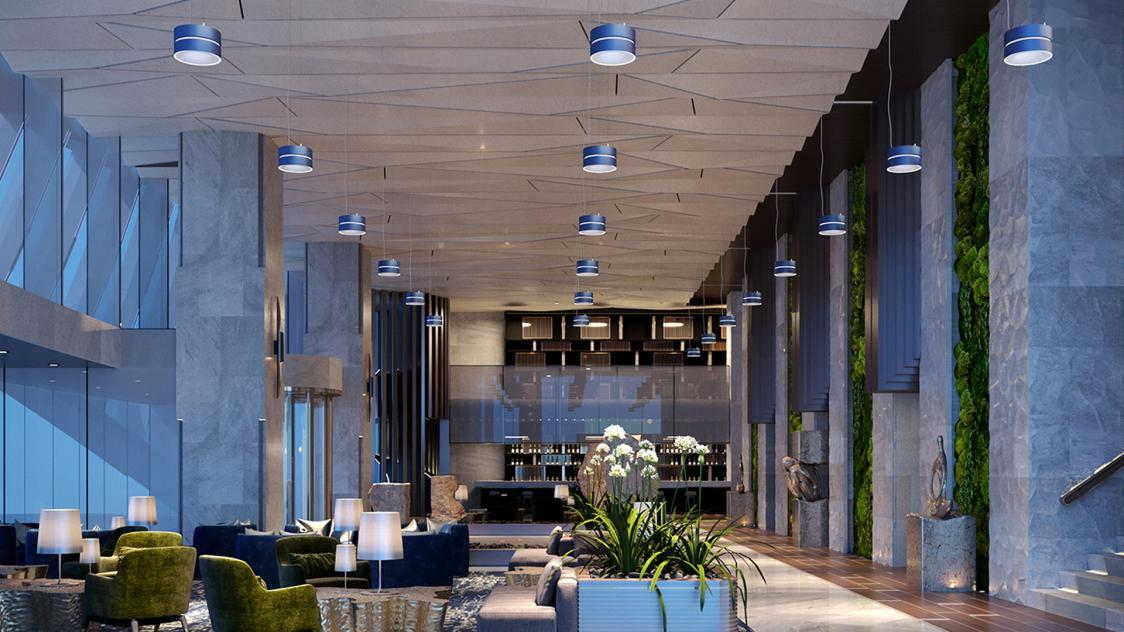

TRIPLE is a powerful but elegant pendant system with 3 light sources: downlight, indirect light, and glow ring, that can be controlled independently to set various lighting layers. All this functionality is housed in a uniquely engineered drum design that facilitates the internal airflow to cool all the contained components. This mood-changing power makes TRIPLE an ideal solution for applications where various types of light are needed to enhance the user experience, such as event spaces, hospitality, retail, and workspaces. For each body section, one of 10 finishes can be selected to create a unique combination. This finish feature is handy when designing for playful applications, when you need to match brand themes, or for a pop of color.

Features

Body

Aluminum and steel.

Finish

Powder coated.

Suspension

Steel cables.

Power cable

Silver braided.

Remote emergency

Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The remote system includes the inverter module, NiCad batteries and a remote wall/ceiling LED charge indicator and test switch (NA only) Maximum distance between wall/ceiling plate and luminaire is 15' (4.5m). Test switch fits a single gang box (not supplied).

Remote mounting of drivers

Wire Size (max distance from canopy to drivers) 18 AWG - 9.5' (2.9m), 16 AWG - 19.5' (5.9m), 14 AWG - 29.5' (9.0m). Drivers must be accessible after installation.

Drivers

HPF electronic drivers for 120-277V (EU-240V).

Mechanical
Luminaires mount directly over J box (by others - North America only).

Reported L70 @25°C (77°F)

> 60,000 hrs.

Estimated L70 @25°C (77°F)
> 124,000 hrs.

Delivered lumens

Delivered lumens & LPW based on 4000K (min 80 CRI).

Design

US Pat. No. D880,756

Designed by

Serge Cornelissen.

Mounting and Optics

Icon for Suspended Direct Suspended Direct
Icon for Suspended Direct/Indirect Suspended Direct/Indirect
Icon for 15° 15°
Icon for 30° 30°
Icon for 50° 50°
Icon for 70° 70°
Icon for Indirect Indirect

Downloads

Approvals

  • ETL
  • CE
  • Grounding
  • Damp Location (Indoor Use)
  • Mounting Suited On Flammable Surfaces
  • IP 20
