Tunnel™ Ceiling

TUNNEL revives the classic functional form into a charming new style with an incurved enhancement. With this design flair comes great functionality. TUNNEL exceeds the typical levels of output and efficacy, and delivers on specification capabilities. Alternatives are provided for nearly every component, allowing designers to configure a luminaire designed precisely to the needs of the space. TUNNEL is available in five stand-alone lengths ranging from 4ft to 12ft. TUNNEL’s luxurious finishes and smooth lines create a stylish luminaire that doesn’t compromise on performance.

DOWNLOAD SPEC SHEET

Imperial
Imperial Metric

Downloads

Tech Specs

Body

Aluminum.

Finish

Powder coated.

Drivers

HPF electronic drivers for 120-277V, 347 (EU-240V). The driver is integral to the fixture housing.

Diffuser

Opal acrylic. 2.4" width

PoE

Can be integrated into your data network via Power over Ethernet (PoE) connectivity.

BIOS

For circadian lighting, consult factory.

Tunable White

Tunable White range from 2700K to 6500K is available; contact the factory for details.

RGBW

RGBW available, consult factory.

Mechanical

Luminaires mount directly over J box (by others).

Reported L70 @25°C (77°F)

> 60,000 hrs @ 1400 lumens/ft (4600 lumens/m)

Estimated L70 @25°C (77°F)

> 165,000 hrs @ 1400 lumens/ft (4600 lumens/m)

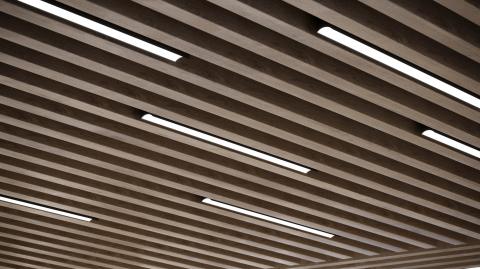

Wood Slat Ceiling

For wood slat ceiling integration, consult factory.

Delivered lumens

Delivered lumens & LPW based on 4000K CRI 80+

Integral Emergency system

Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The self contained system includes the inverter module, NiCad batteries, LED charge indicator and test switch (NA only). Not available with a 347V supply.

Approvals

Damp Rated.

Designed by

Serge Cornelissen.

Design

US Design Patent Pending.

Approvals

  • ETL
  • CE
  • Grounding
  • Damp Location (Indoor Use)
  • Mounting Suited On Flammable Surfaces
  • IP 20

Mounting & Optics

Icon for Ceiling Direct Ceiling Direct
Icon for Direct DD1 Direct DD1
Icon for Direct DD2 Direct DD2
Icon for Direct DD4 Direct DD4
Icon for Bios Bios
Icon for Declare Declare
Icon for PoE PoE

Product Configurator

TLCC1C

Luminaire

Length of Run

Length

Lm/ft

CRI

CCT

Diffuser

Voltage

Dimming

Finish

Emergency
