Bellows Ring

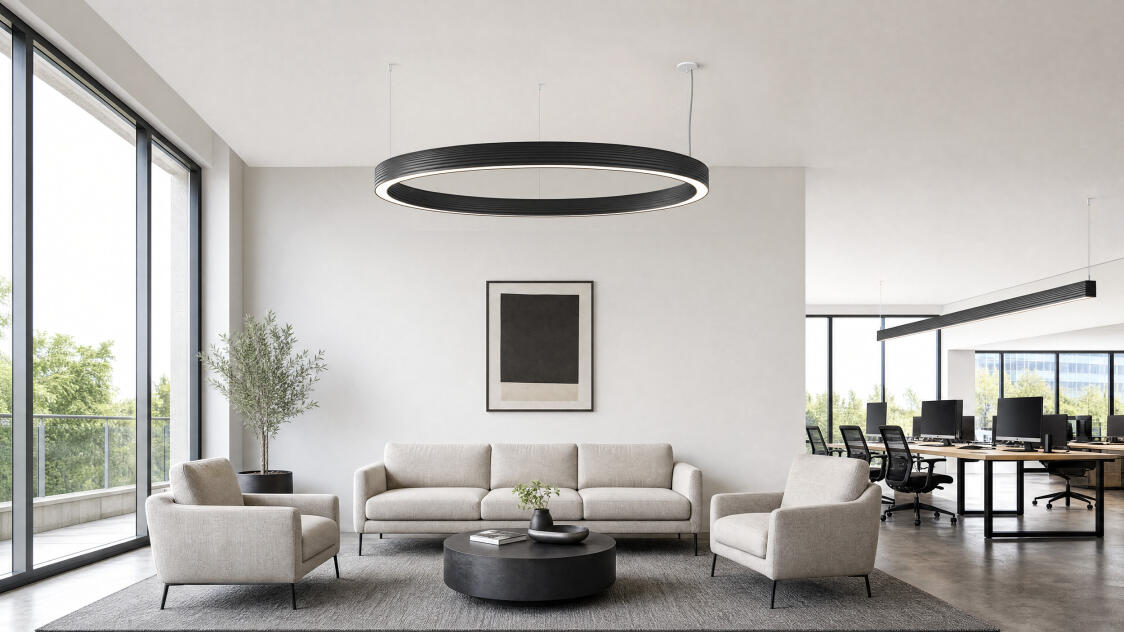

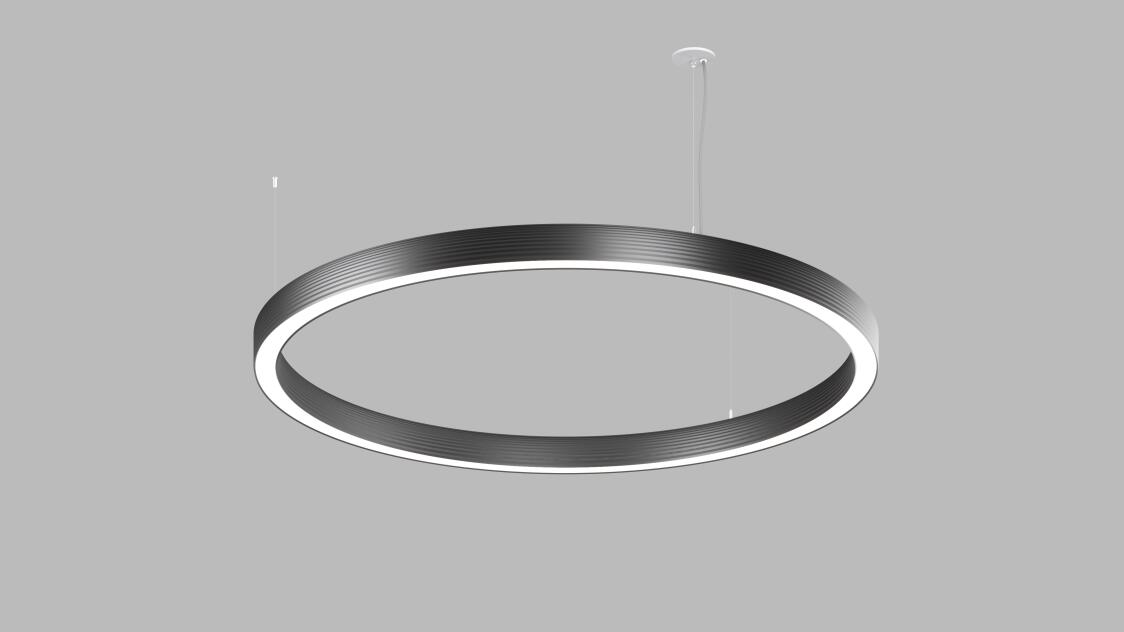

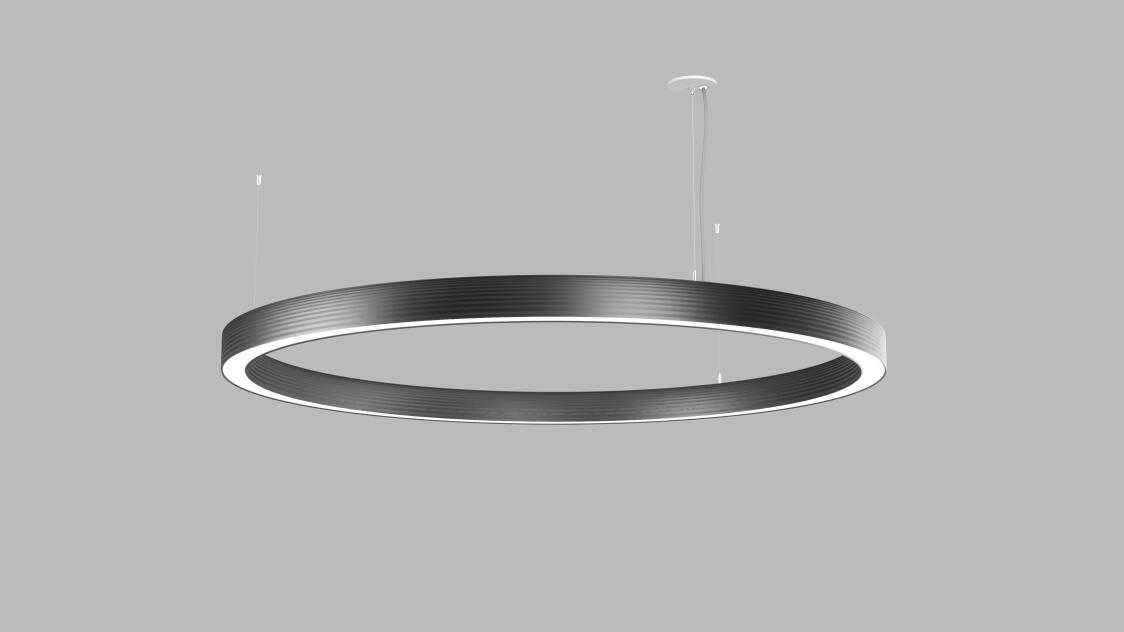

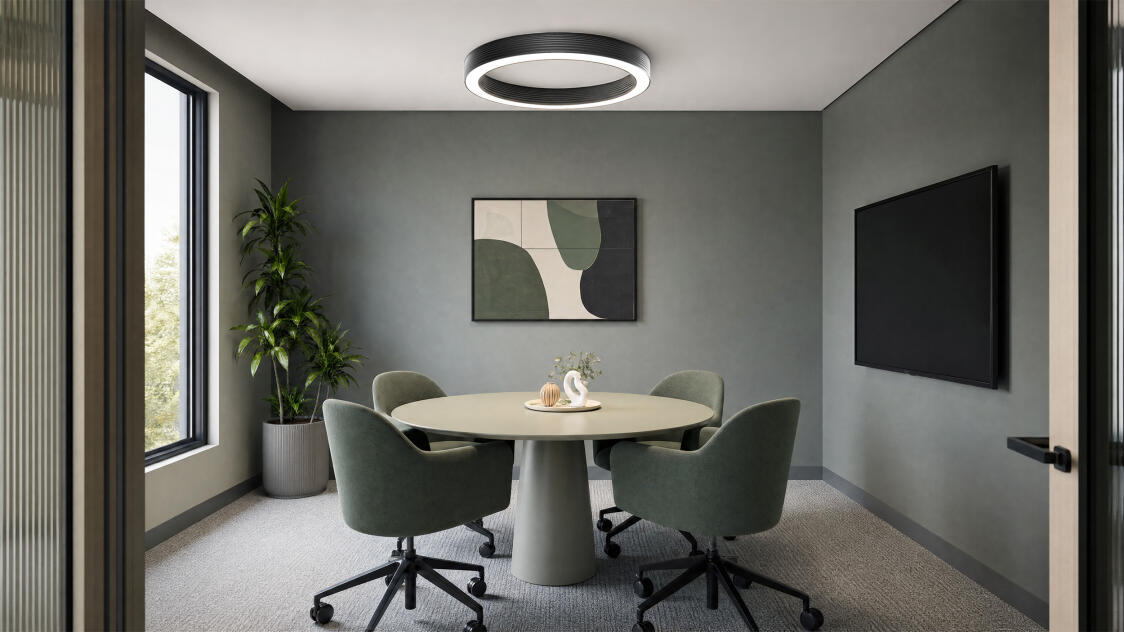

BELLOWS RING takes the standard ring luminaire and further enhances the aesthetic with its stunning sculptural pleated form introducing rhythm, depth, and character to the ceiling plane. Inspired by the ridged profile of fireplace bellows, this 2.5" aperture luminaire combines bold architectural presence with the reliable performance of a proven workhorse. The diffused lens delivers smooth, uniform illumination, while supporting a broad range of lighting applications. With multiple lumen packages, high-efficacy performance, BIOS integration for circadian support, and 13 distinctive finishes, BELLOWS RING brings together technical precision and a refined, tactile design language in one expressive architectural luminaire.

Downloads

Tech Specs

Body

Aluminum.

Finish

Powder coated.

Suspension

Steel cables. Recommended minimum mounting heights: 1ft (305mm).

Lens

Opal polycarbonate

Remote Emergency

Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The remote system includes the inverter module, NiCad batteries and a remote wall/ceiling LED charge indicator and test switch (NA only) Maximum distance between wall/ceiling plate and luminaire is 15' (4.5m). Test switch fits a single gang box (not supplied).

Drivers

Remote, HPF electronic drivers for 120-277V (EU-240V) dimming. Wire size 18 AWG - max distance (from fixture to drivers) 40' (12.2m), wire size 16 AWG - max distance 60' (18.3m), wire size 14 AWG - max distance 90' (27.4m). Drivers must be accessible after installation. Drivers are either remote mounted or integral to the canopy. For longer remote distances, consult factory.
