Bellows Shapes

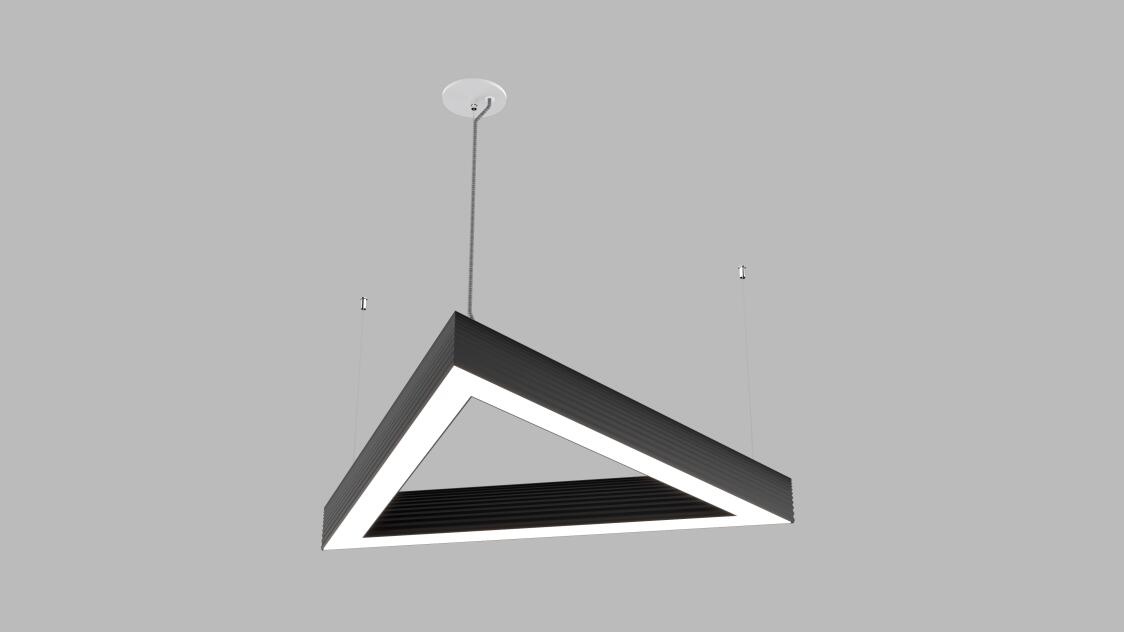

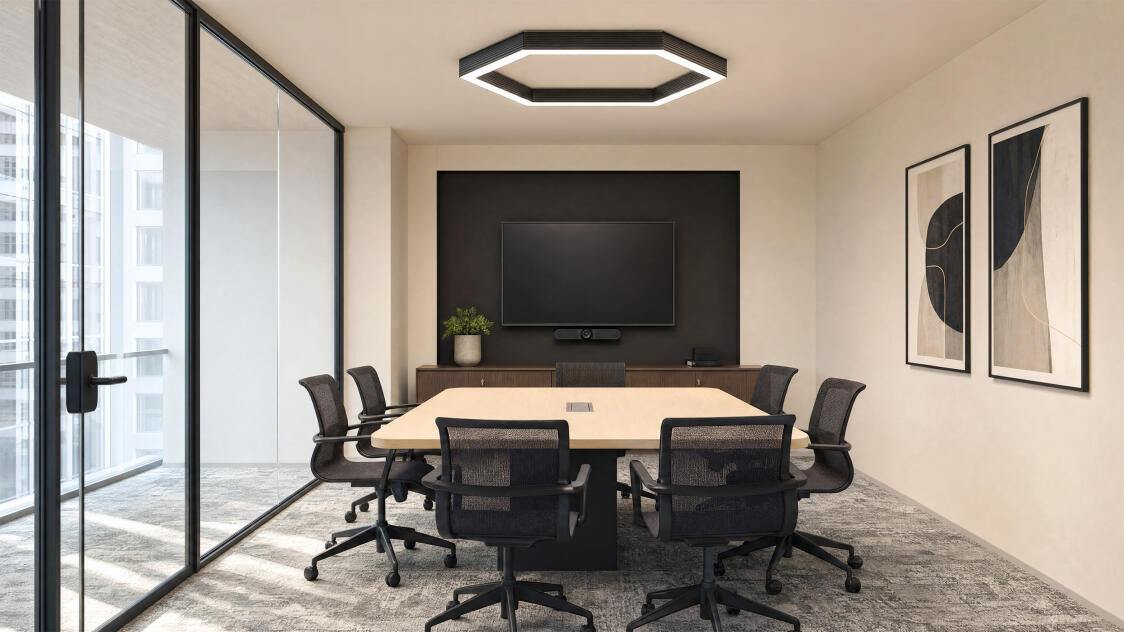

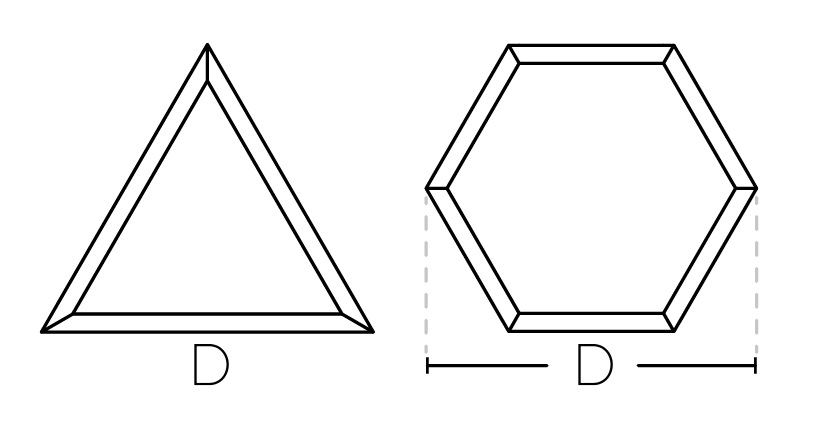

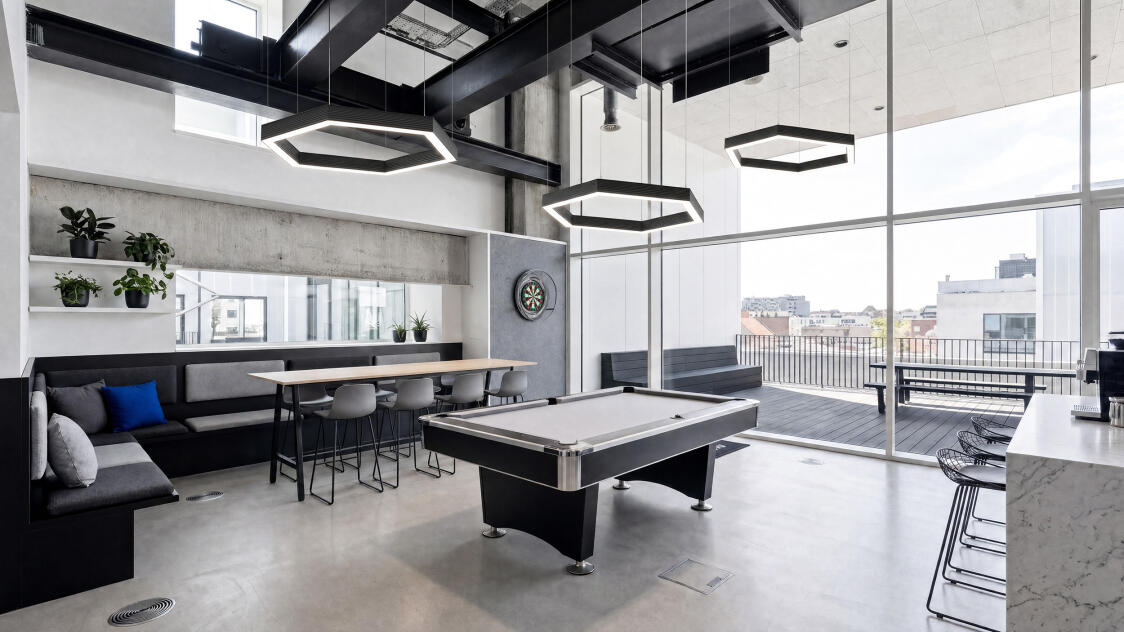

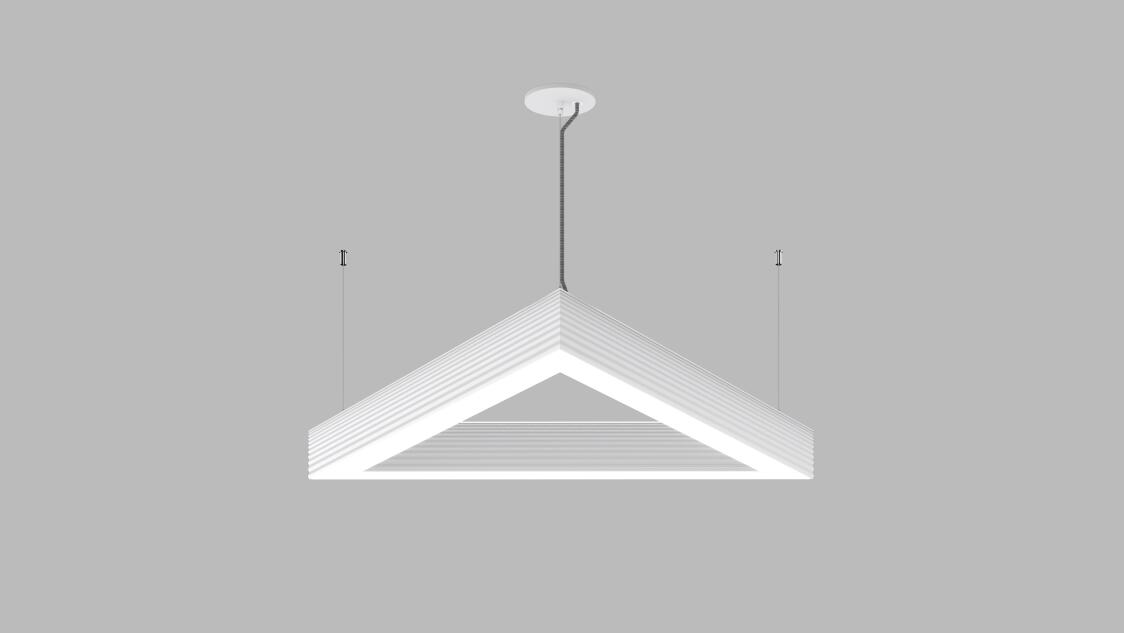

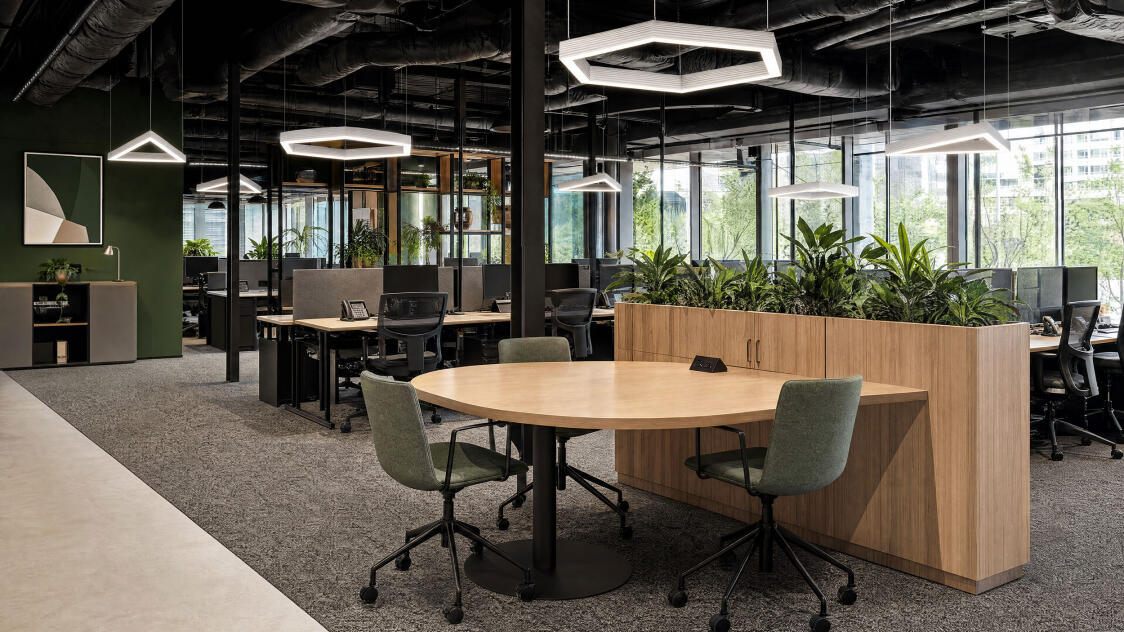

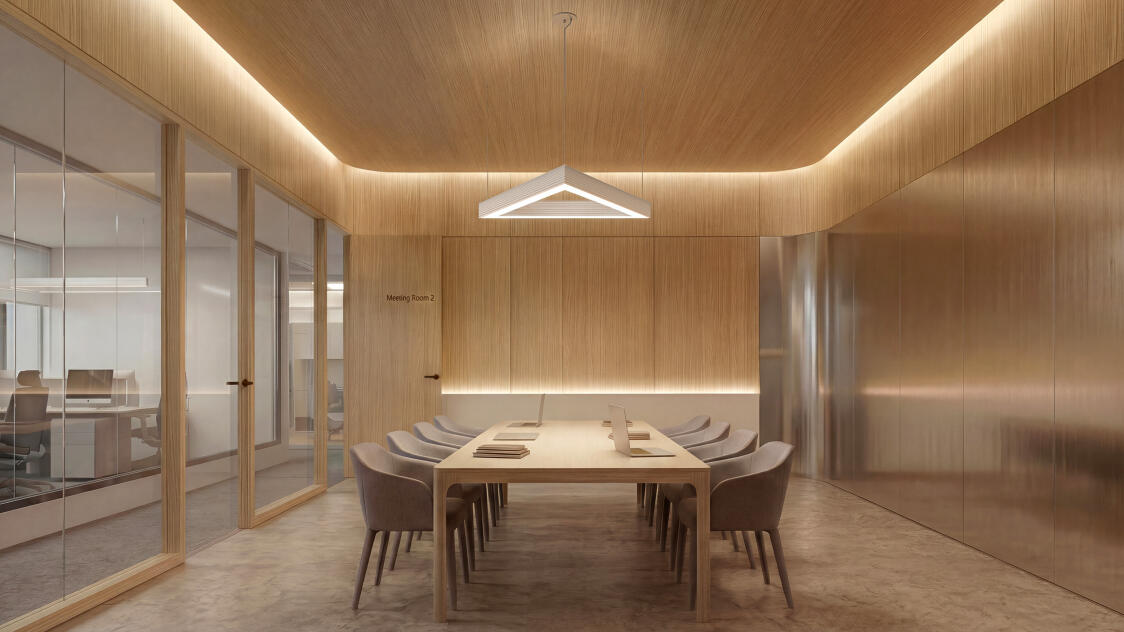

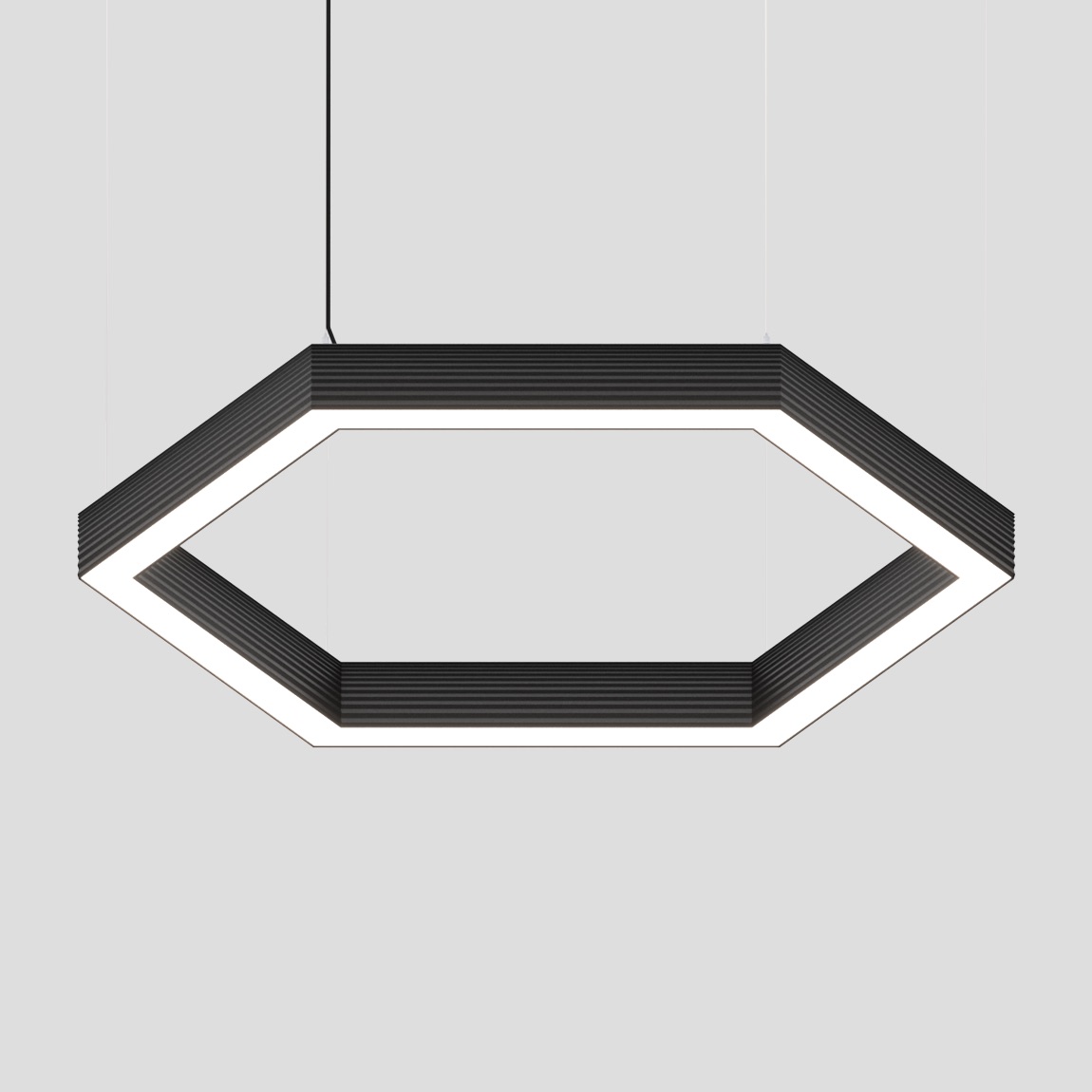

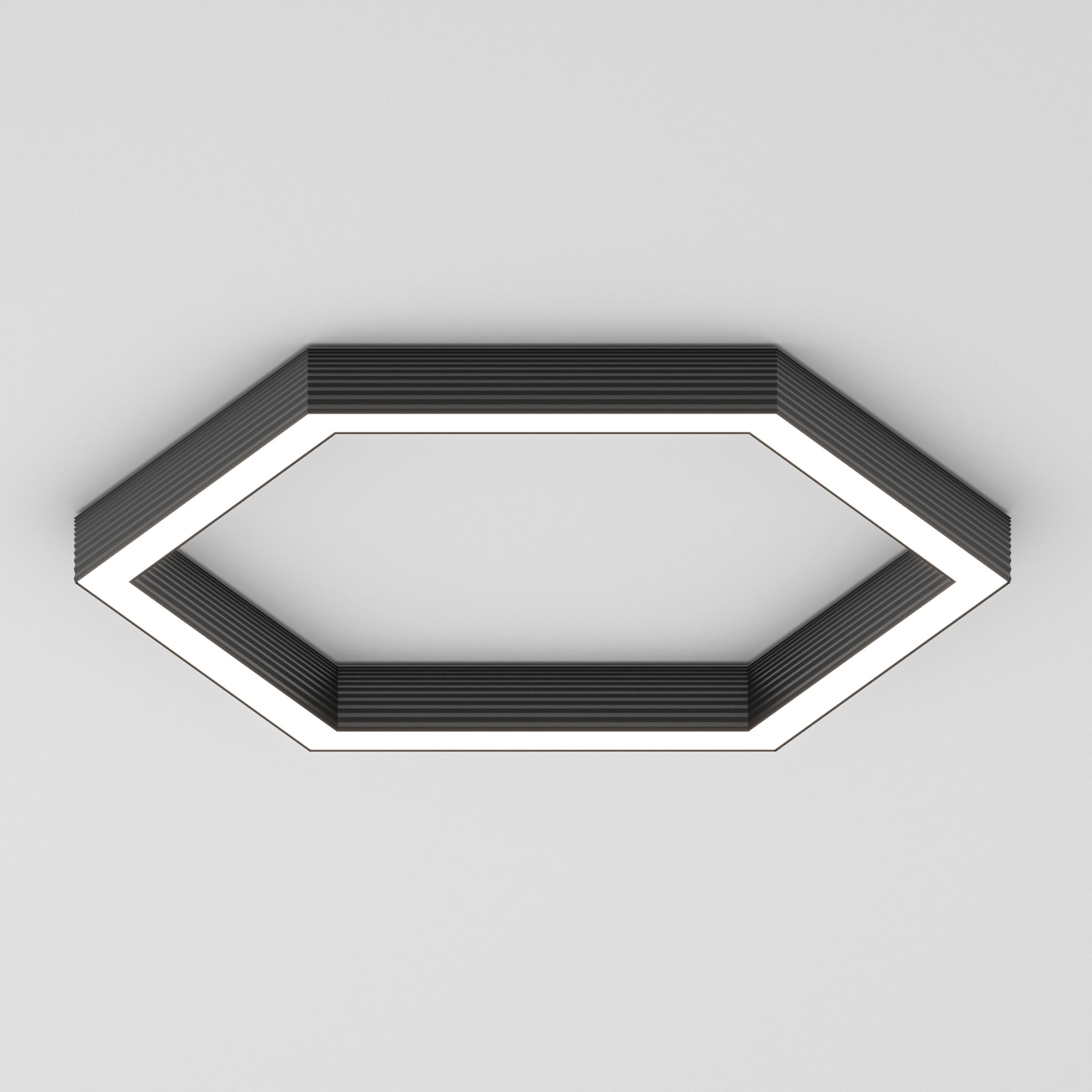

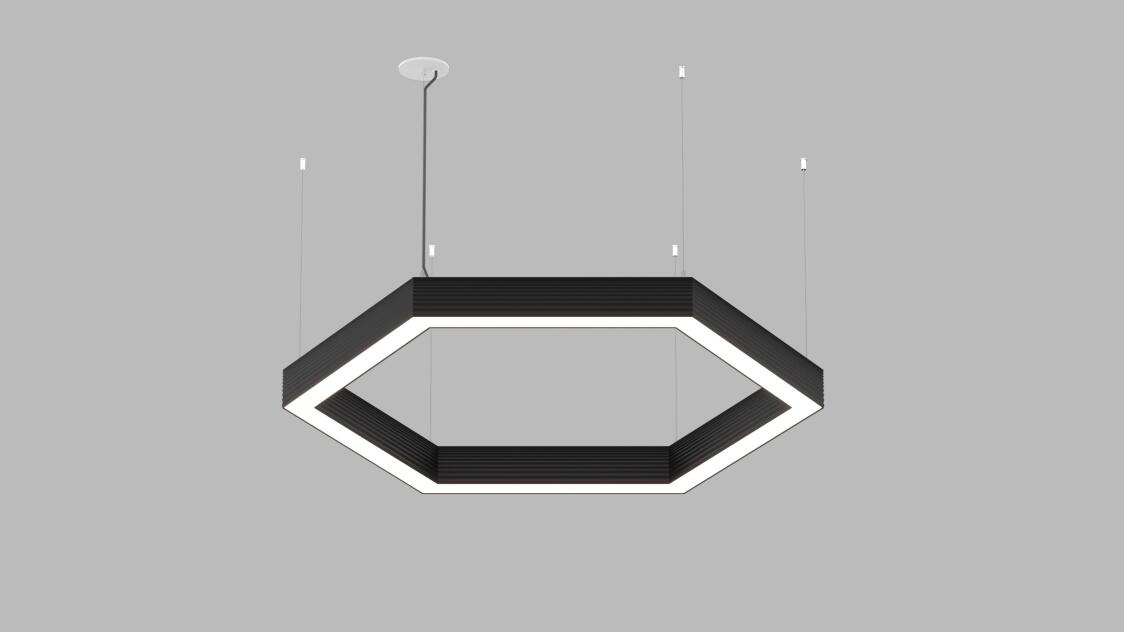

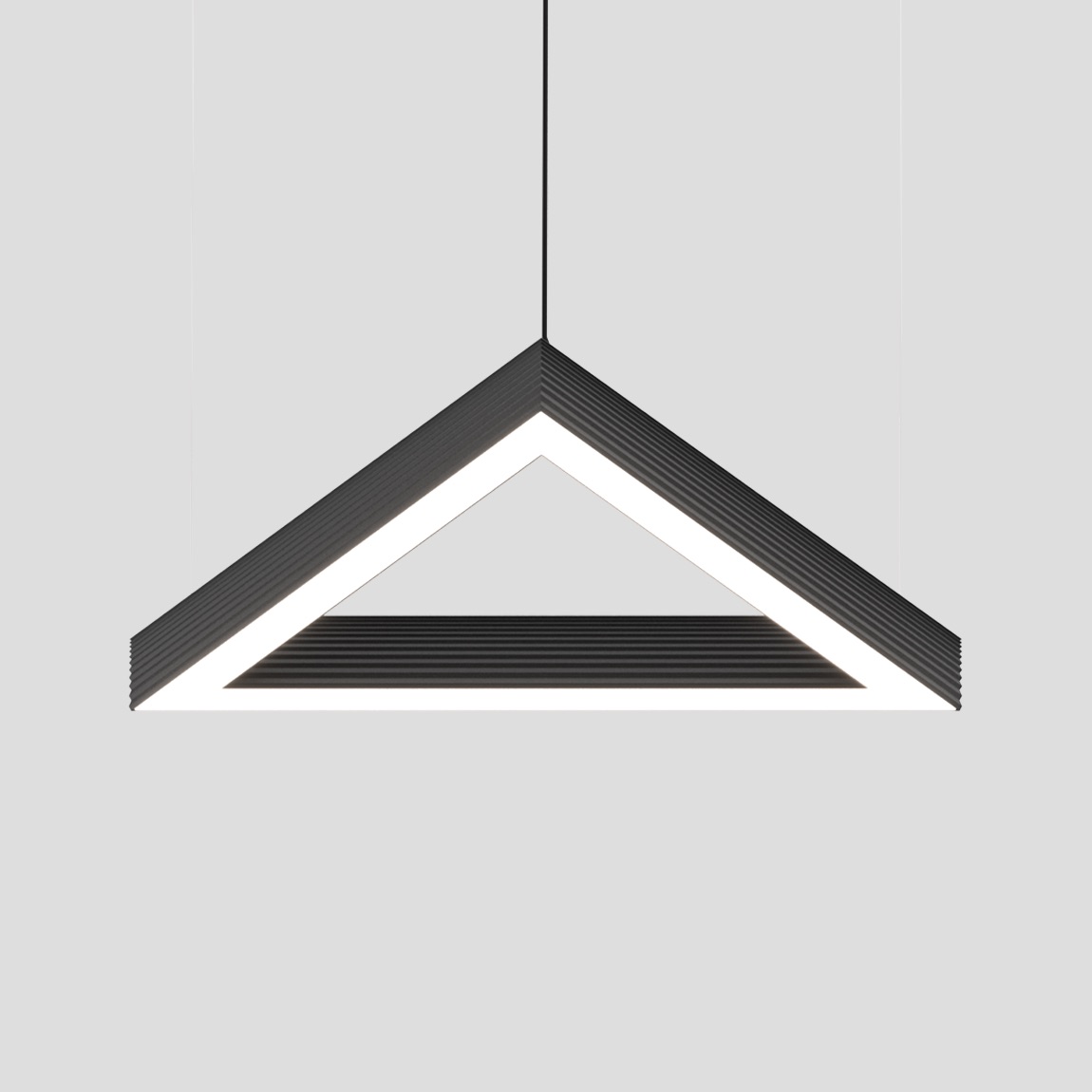

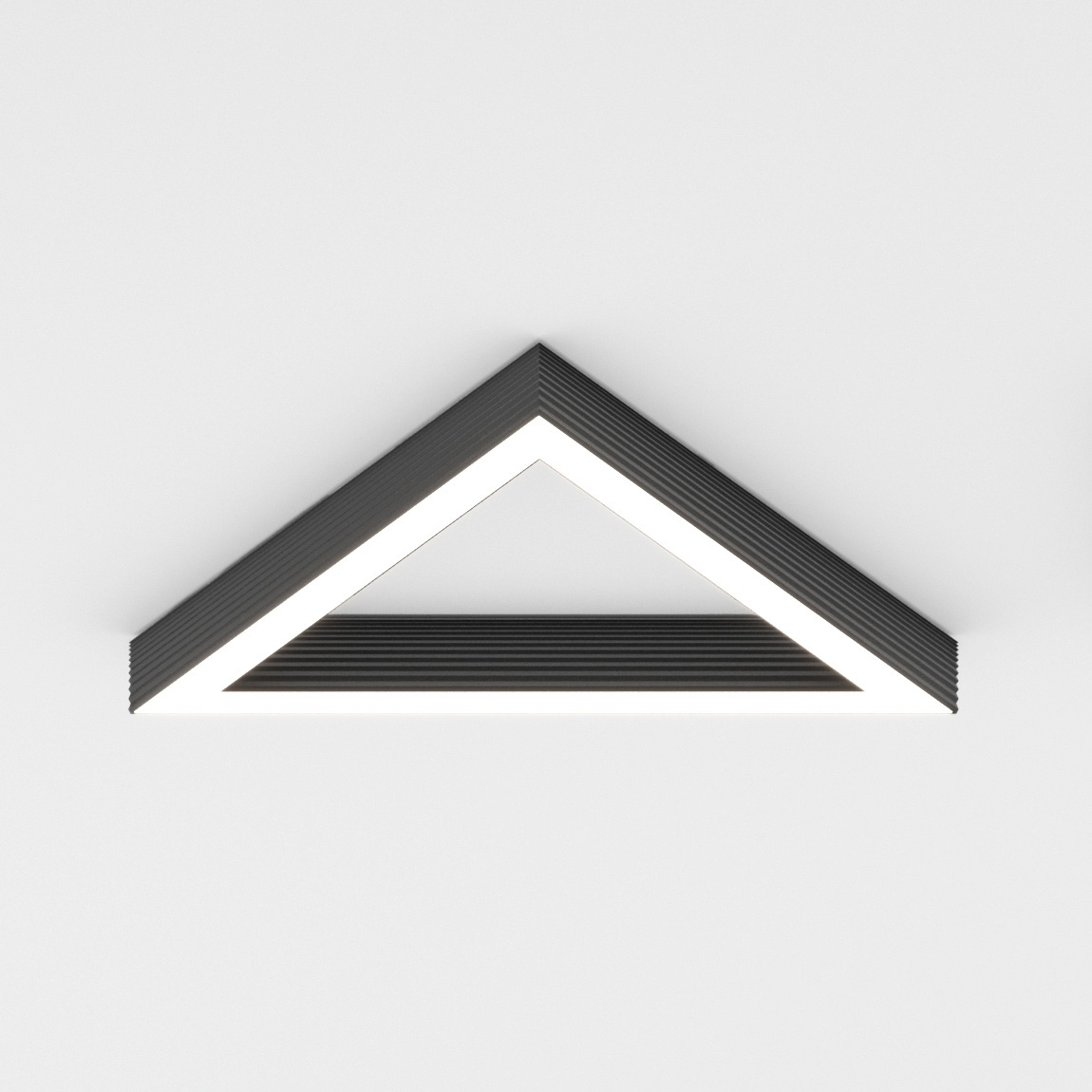

BELLOWS SHAPES takes the standard BELLOWS linear system, with its iconic sculptural pleated form, and closes the loop with the beautifully aesthetic form of triangles, and hexagons. These stunning fixtures introduce rhythm, depth, and character to the ceiling plane while proving to be ideal centerpieces for your space. Inspired by the ridged profile of fireplace bellows, this 2.5" aperture luminaire combines bold architectural presence with the reliable performance of a proven workhorse. The diffused lenses of the BELLOWS HEXAGON and BELLOWS TRIANGLE deliver smooth, uniform illumination, while Diffused, Batwing, and Extra-Wide Batwing distributions support a broad range of lighting applications. With multiple lumen packages, high-efficacy performance, BIOS integration for circadian support, and 13 distinctive finishes, BELLOWS SHAPES brings together technical precision and a refined, tactile design language in one expressive architectural luminaire.

Downloads

Tech Specs

Body

Aluminum.

Finish

Powder coated.

Suspension

Steel cables.

Power cable

Silver braided.

Drivers

HPF electronic drivers for 120-277V, 347 (EU-240V). The driver is integral to the fixture housing.

PoE

Can be integrated into your data network via Power over Ethernet (PoE) connectivity.

BIOS

For circadian lighting, consult factory.

Tunable White

Tunable White range from 2700K to 6500K is available.

Delivered lumens

Delivered lumens & LPW based on 4000K CRI 80+

Mechanical

Luminaires mount directly over J box (by others).

Reported L70 @25°C (77°F)

> 60,000 hrs @ 2000 lumens/ft (6000 lumens/m)

Estimated L70 @25°C (77°F)

> 165,000 hrs @ 2000 lumens/ft (6000 lumens/m)

Lens

Opal acrylic lens.

Integral Emergency system

Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The self contained system includes the inverter module, NiCad batteries, LED charge indicator and test switch (NA only). Not available with a 347V supply.
