Lumi-Arc™ Configurator

Name: Lumi-Arc™
Brand: Beta-Calco

Lumi-Arc™

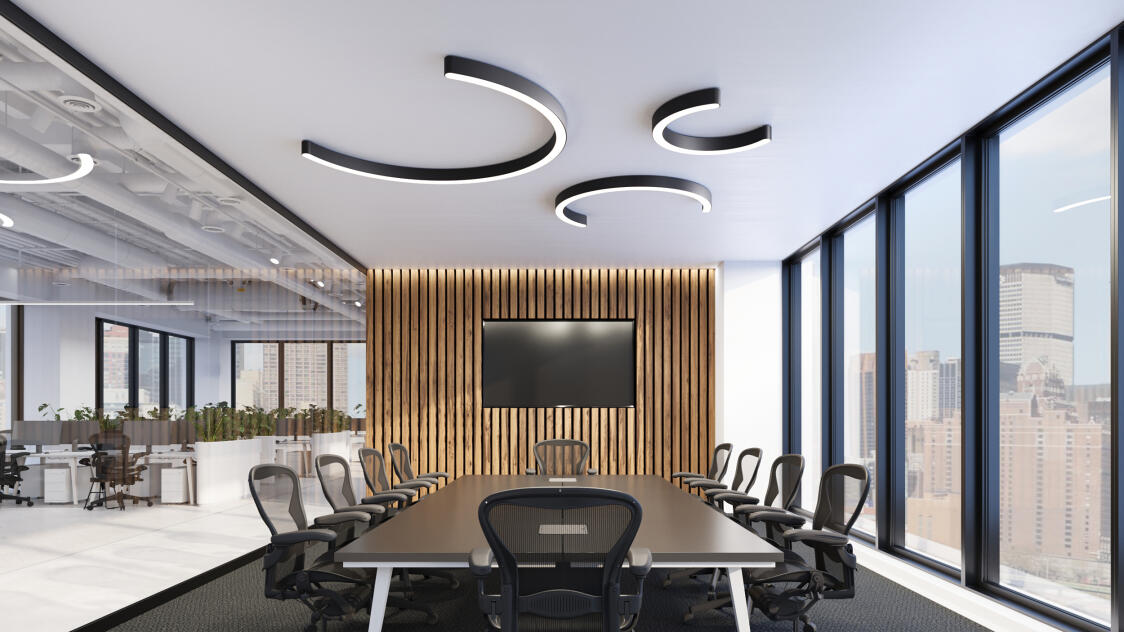

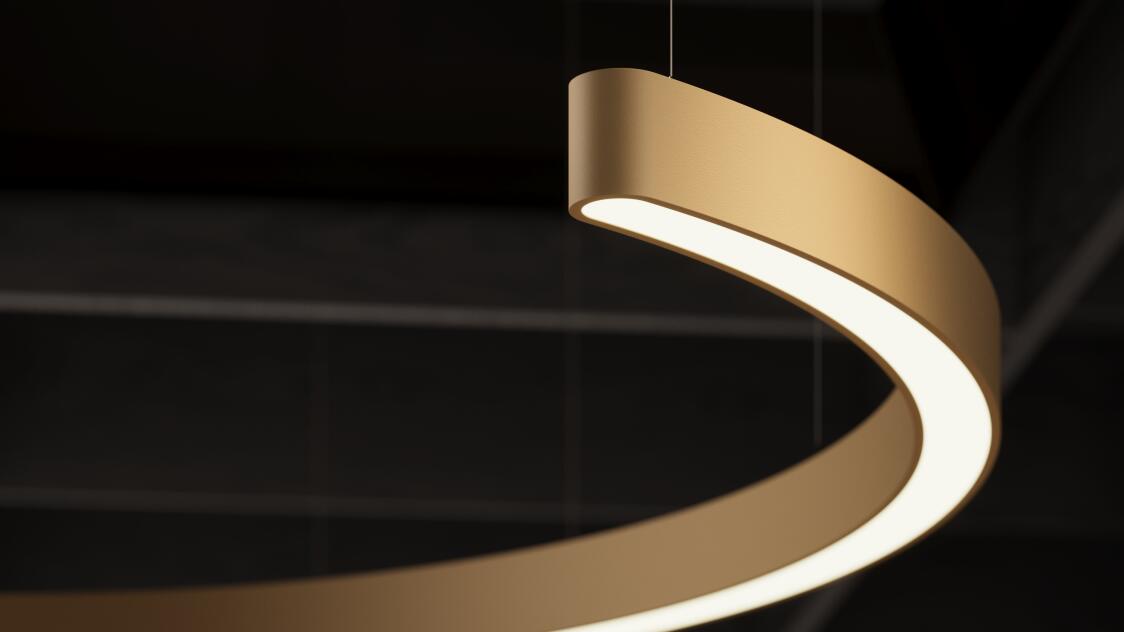

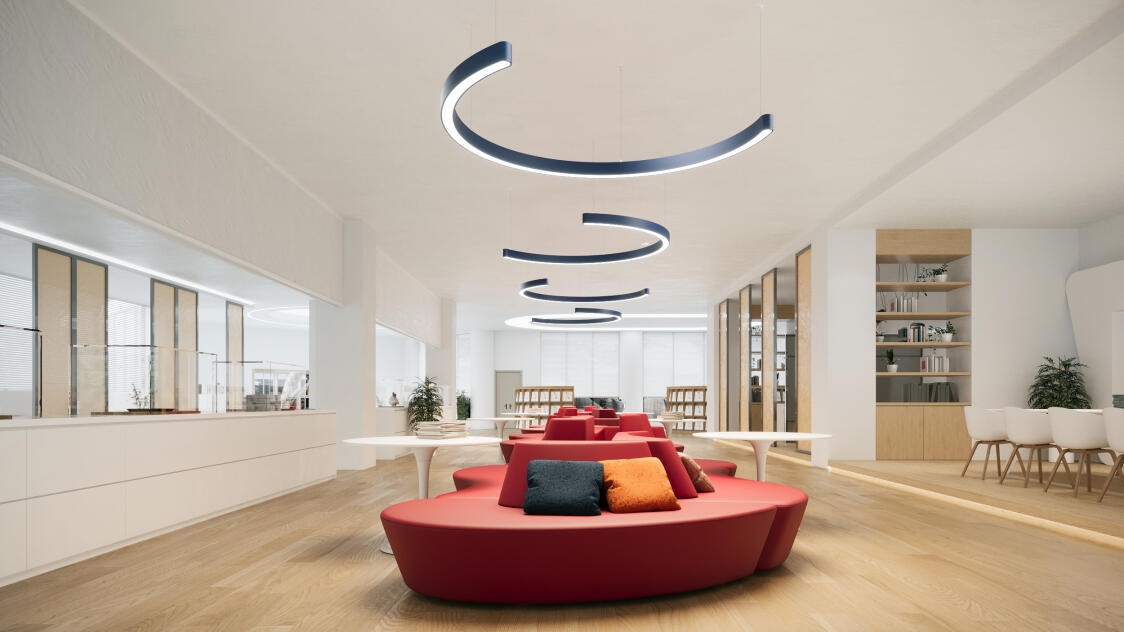

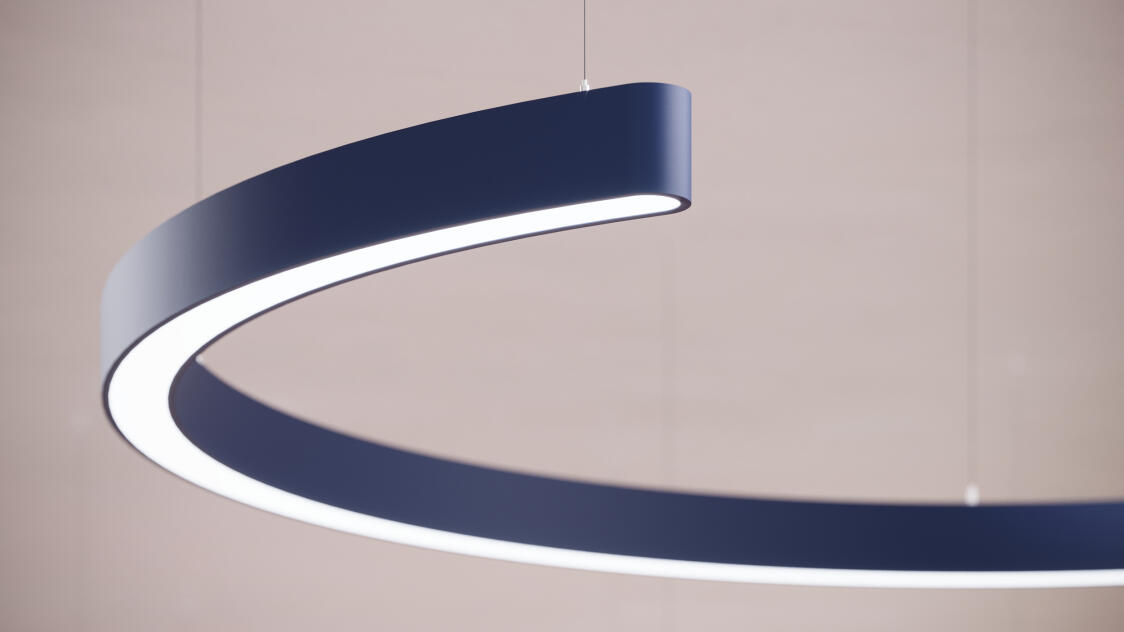

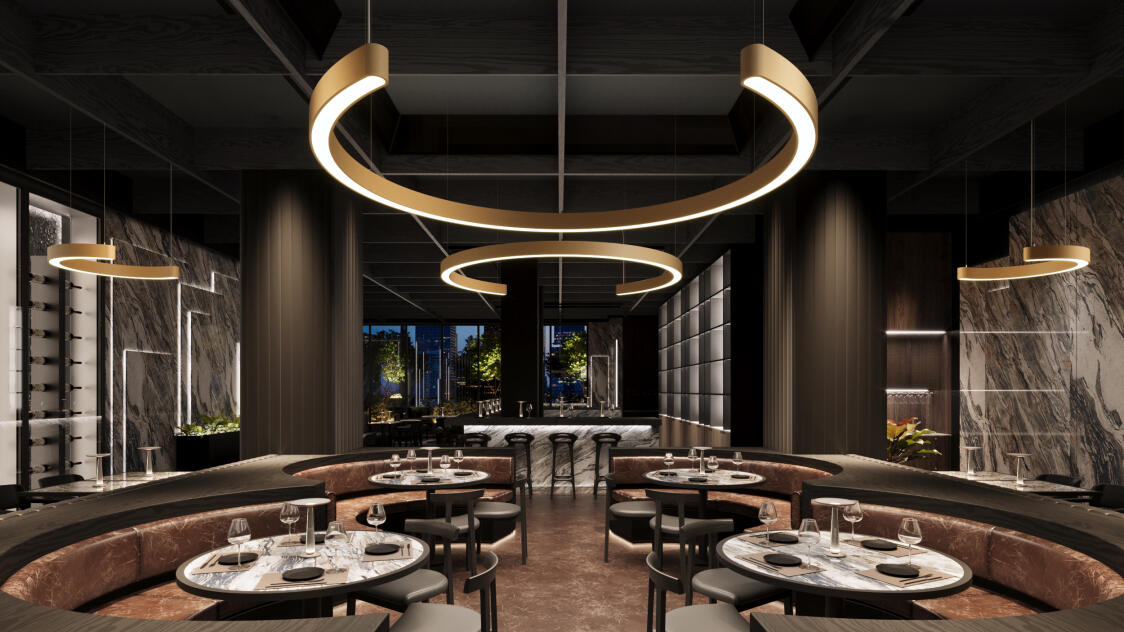

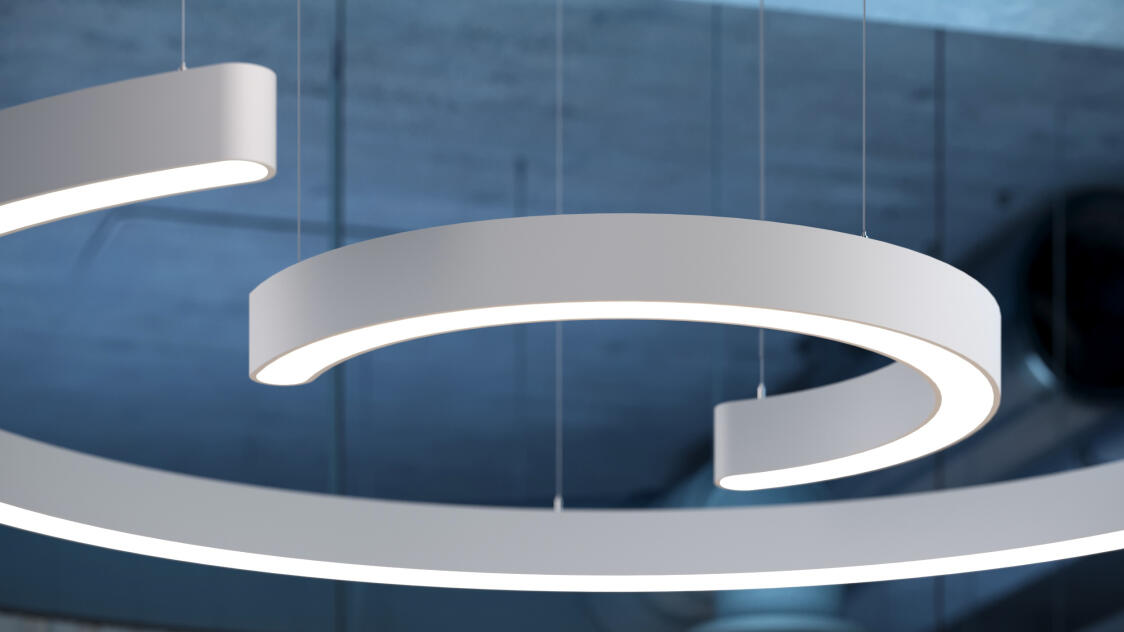

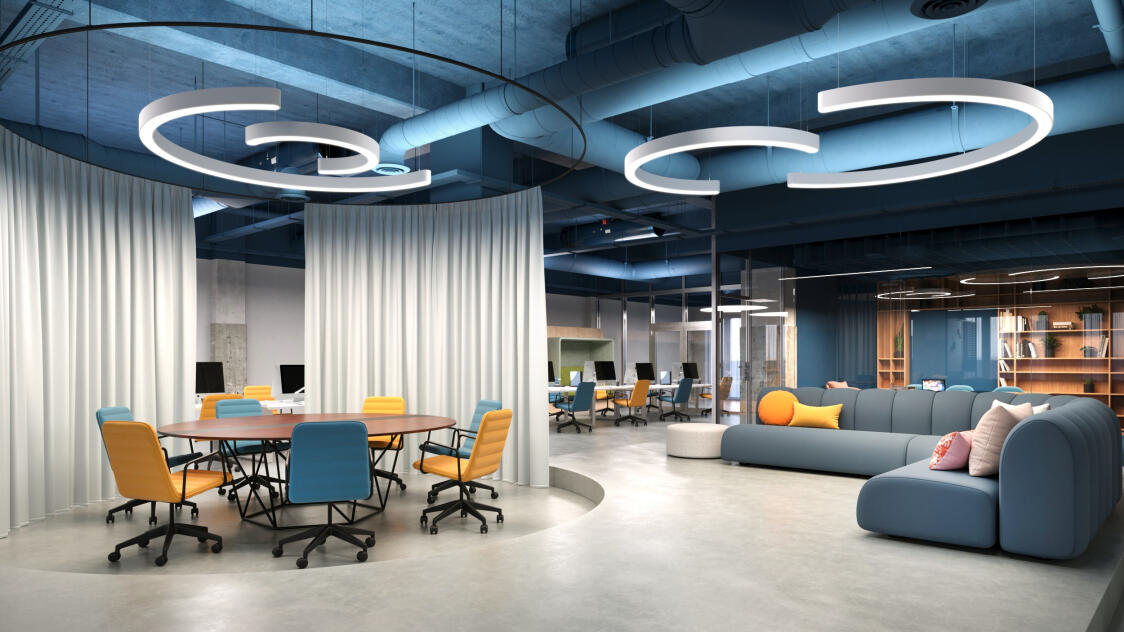

The luminous arc takes shape through graceful curvature, creating a sweeping band of light that defines space with sculptural elegance. Designed to merge architectural presence with refined illumination, LUMI-ARC transforms environments whether it serves as a dramatic focal point or complements existing design elements. The curved diffused lens provides uniform brightness along its elegant span, ensuring consistent illumination that follows the fixture’s form. Available in multiple diameters, arc degrees, and customizable configurations, LUMI-ARC adapts to diverse spatial requirements, offering scalable solutions for upscale restaurants, hotel lobbies, corporate offices, boutique spaces, and more. Its presence moves beyond functional lighting to become an architectural feature that shapes the atmosphere and the experience.

Downloads

Tech Specs

Body

Aluminum.

Finish

Powder coated.

Suspension

Steel cables. Recommended minimum mounting heights: 1ft (305mm).

Lens

Protruding Lens 0.08" (2.1mm)

Remote Emergency

Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The remote system includes the inverter module, NiCad batteries and a remote wall/ceiling LED charge indicator and test switch (NA only) Maximum distance between wall/ceiling plate and luminaire is 15' (4.5m). Test switch fits a single gang box (not supplied).

Drivers

Remote, HPF electronic drivers for 120-277V (EU-240V) dimming. Wire size 18 AWG - max distance (from fixture to drivers) 40' (12.2m), wire size 16 AWG - max distance 60' (18.3m), wire size 14 AWG - max distance 90' (27.4m). Drivers must be accessible after installation. Drivers are either remote mounted or integral to the canopy. For longer remote distances, consult factory.

PoE

Lumi-Arc can integrate into your data network via Power over Ethernet (PoE) connectivity.

Mechanical

Luminaires mount directly over J box (by others - North America only).

L70 @25°C

> 60,000 hrs.

Delivered Lumens

Delivered lumens & LPW based on 4000K (min 90 CRI).

Approvals

Damp Rated.

Design

US Design Patent Pending.

Seismic Bracing

Seismic bracing kits are available to meet compliance requirements. Consult the factory for details.

Product Configurator

Qty.

Product Code

qty

Product Family
