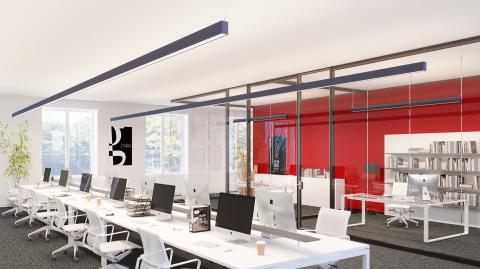

<p>OFFICE</p>

OFFICE

6 / 29
<p>BLACKOUT PLATE</p>

BLACKOUT PLATE

7 / 29
<p>BLACK METALLIC TEXTURED</p>

BLACK METALLIC TEXTURED

8 / 29
<p>BOARDROOM</p>

BOARDROOM

9 / 29
<p>LIGHT DISTRIBUTION</p>

LIGHT DISTRIBUTION

10 / 29
<p>WHITE</p>

WHITE

11 / 29
<p>SILVER METALLIC TEXTURED</p>

SILVER METALLIC TEXTURED

12 / 29
<p>BRONZE METALLIC TEXTURED</p>

BRONZE METALLIC TEXTURED

13 / 29
<p>CHAMPAGNE METALLIC</p>

CHAMPAGNE METALLIC

14 / 29
<p>CHARCOAL METALLIC TEXTURED</p>

CHARCOAL METALLIC TEXTURED

15 / 29
<p>COPPER METALLIC</p>

COPPER METALLIC

16 / 29
<p>GOLD METALLIC</p>

GOLD METALLIC

17 / 29
<p>MIDNIGHT BLUE METALLIC TEXTURED</p>

MIDNIGHT BLUE METALLIC TEXTURED

18 / 29
<p>WOOD GRAIN - DARK WALNUT</p>

WOOD GRAIN - DARK WALNUT

19 / 29
<p>WOOD GRAIN - LIGHT CHERRY</p>

WOOD GRAIN - LIGHT CHERRY

20 / 29
<p>RED METALLIC TEXTURED</p>

RED METALLIC TEXTURED

21 / 29
<p>CONTINUOUS RUN CONNECTION</p>

CONTINUOUS RUN CONNECTION

22 / 29

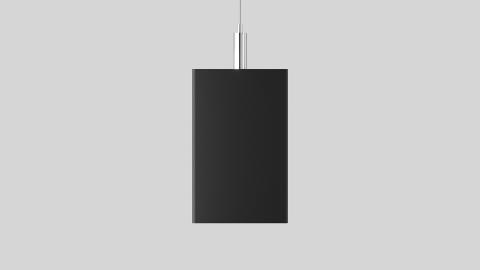

<p>PROFILE</p>

PROFILE

23 / 29
<p>PROFILE</p>

PROFILE

24 / 29
<p>PROFILE</p>

PROFILE

25 / 29
<p>PROFILE</p>

PROFILE

26 / 29
<p>CANOPY - ENLIGHTED</p>

CANOPY - ENLIGHTED

27 / 29
<p>CANOPY - NO SENSOR</p>

CANOPY - NO SENSOR

28 / 29
<p>CANOPY - OSRAM</p>

CANOPY - OSRAM

29 / 29
<p>CANOPY - PHILIPS</p>

CANOPY - PHILIPS

Thumbnail for <p>BOARDROOM</p> Thumbnail for <p>BLOCK &amp; TUNNEL DEEP DIVE</p> Thumbnail for <p>LABORATORY</p> Thumbnail for <p>BLOCK PRODUCT VIDEO</p> Thumbnail for <p>OFFICE</p> Thumbnail for <p>BLACKOUT PLATE</p> Thumbnail for <p>BLACK METALLIC TEXTURED</p> Thumbnail for <p>BOARDROOM</p> Thumbnail for <p>LIGHT DISTRIBUTION</p> Thumbnail for <p>WHITE</p> Thumbnail for <p>SILVER METALLIC TEXTURED</p> Thumbnail for <p>BRONZE METALLIC TEXTURED</p> Thumbnail for <p>CHAMPAGNE METALLIC</p> Thumbnail for <p>CHARCOAL METALLIC TEXTURED</p> Thumbnail for <p>COPPER METALLIC</p> Thumbnail for <p>GOLD METALLIC</p> Thumbnail for <p>MIDNIGHT BLUE METALLIC TEXTURED</p> Thumbnail for <p>WOOD GRAIN - DARK WALNUT</p> Thumbnail for <p>WOOD GRAIN - LIGHT CHERRY</p> Thumbnail for <p>RED METALLIC TEXTURED</p> Thumbnail for <p>CONTINUOUS RUN CONNECTION</p> Thumbnail for <p>PROFILE</p> Thumbnail for <p>PROFILE</p> Thumbnail for <p>PROFILE</p> Thumbnail for <p>PROFILE</p> Thumbnail for <p>CANOPY - ENLIGHTED</p> Thumbnail for <p>CANOPY - NO SENSOR</p> Thumbnail for <p>CANOPY - OSRAM</p> Thumbnail for <p>CANOPY - PHILIPS</p>
Prev Next
1
1>
2>
3>
4>
5>
6>
7>
8>
9>
10>
11>
12>
13>
14>
15>
16>
17>
18>
19>
20>
21>
22>
23>
24>
25>
26>
27>
28>
29>
BLOCK, while designed in the classic form, is a linear system like no other.   It is unique in two magnitudes. Firstly on output, BLOCK surpasses the typical levels of output and efficacy. Secondly, BLOCK delivers on specification capabilities. Nearly every component has alternatives allowing designers to configure a luminaire designed precisely to the needs of the space ~ a bona fide architectural system. BLOCK is the new go-to linear that adapts to a variety of performance needs and budgetary requirements.


Features

Body

Aluminum.

Finish

Powder coated.

Suspension

Steel cables.

Power cable

Silver braided.

Diffuser

Opal acrylic.

Drivers

HPF electronic drivers for 120-277V, 347 (EU-240V).

BIOS

For circadian lighting, consult factory.

PoE

Can be integrated into your data network via Power over Ethernet (PoE) connectivity.

Reported L70 @25°C (77°F)

> 60,000 hrs @ 2000 lumens/ft (6000 lumens/m)

Estimated L70 @25°C (77°F)

> 165,000 hrs @ 2000 lumens/ft (6000 lumens/m)

Delivered lumens

Delivered lumens & LPW based on 4000K CRI 80+

Mechanical

Luminaires mount directly over J box (by others).

Integral Emergency system

Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The self contained system includes the inverter module, NiCad batteries, LED charge indicator and test switch (NA only). Not available with a 347V supply.

Approvals

Damp Location (Indoor use only).

Design

US Design Patent Pending.

Mounting and Optics

Icon for Suspended Direct Suspended Direct
Icon for Suspended Direct/Indirect Suspended Direct/Indirect
Icon for Direct DD1 Direct DD1
Icon for Direct DD2 Direct DD2
Icon for Direct DD3 Direct DD3
Icon for Indirect Indirect
Icon for PoE PoE
Icon for Bios Bios

Downloads

Approvals

  • ETL
  • CE
  • Grounding
  • Damp Location (Indoor Use)
  • Mounting Suited On Flammable Surfaces
  • IP 20

Share this fixture

Configurator

You selected

Luminaire

BLFP1P Direct BLFP2P Direct/Indirect

Length of Run

Max Length Per Section

SL04 4ft SL06 6ft SL08 8ft SL10 10ft SL12 12ft

Lm/ft (Direct)

LPF020 200 lm/ft LPF040 400 lm/ft LPF060 600 lm/ft LPF080 800 lm/ft LPF100 1000 lm/ft LPF120 1200 lm/ft LPF140 1400 lm/ft

Lm/ft (Indirect)

LPG000 Not required LPG020 200 lm/ft LPG040 400 lm/ft LPG060 600 lm/ft LPG080 800 lm/ft LPG100 1000 lm/ft LPG120 1200 lm/ft LPG140 1400 lm/ft LPG165 1650 lm/ft

CRI

CR80 CRI 80+ CR90 CRI 90+

CCT Direct

CTA30 3000K CTA35 3500K CTA40 4000K

CCT Indirect

CTB00 Not required CTB30 3000K CTB35 3500K CTB40 4000K

Direct Diffuser

DD1 Asymmetric diffuser ¹ DD2 Batwing diffuser DD3 Diffused Light Diffuser

Indirect Diffuser (Batwing Distribution)

UD0 Not required UD1 Clear diffuser

Uplight Blackout Plate

UB00 Not required UB Blackout plate ¹

Voltage

V1 120/277V V2 240V ¹ V3 347V ² V4 Low Voltage ³

Dimming

DA01 0-10V Dimming 1.0% DA02 0-10V Dimming 0.1% ¹ DA20 DALI Dimming 0.1% ¹ DA21 DALI Dimming 1.0% ¹ DA30 DSI/switchDim ² DA45 PoE ³

Ceiling Type

G1 Grid ceiling ¹ H1 Hard ceiling ²

Suspension

HLA03 3ft cable suspension HLA06 6ft cable suspension HLA09 9ft cable suspension

Fixture Finish

White FA01 White Black Metallic Textured FA02 Black Metallic - Textured Silver Metallic Textured FA20 Silver Metallic - Textured Gold Metallic FA25 Gold Metallic Wood Grain - Light Cherry FA27 Wood grain - Light Cherry ¹ Wood Grain - Dark Walnut FA28 Wood grain - Dark Walnut ¹ Midnight Blue Metallic Textured FA44 Midnight Blue Metallic - Textured Copper Metallic FA45 Copper Metallic Charcoal Metallic Textured FA46 Charcoal Metallic - Textured Bronze Metallic Textured FA47 Bronze Metallic - Textured Champagne Metallic FA52 Champagne Metallic Red Metallic Textured FA53 Red Metallic - Textured

Quantity of Emergency Sections

E0 Not required E1 Emergency system - Integral ¹ E3 Emergency generated circuit ¹

Circuits

CS1 Single circuit CS2 Dual circuit

Sensors

SR00 Not required SR01 Enlighted ¹ ST01 Osram Encelium ¹ SV01 Philips ¹
