Boggle™
Ceiling Surface

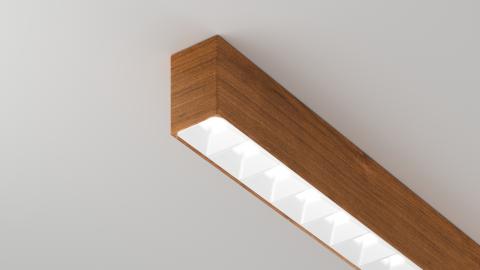

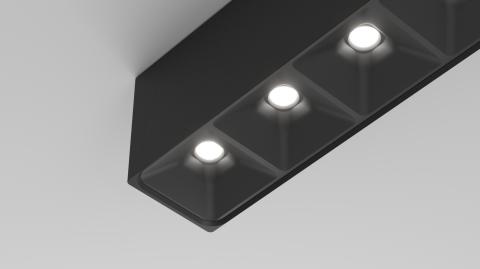

BOGGLE brings brains and brawn to professional lighting. Miniature downlights assemble into a linear cluster to provide optimum performance with superior optical definition, a 60° cutoff angle, better light efficiency and color rendering, and glare-reducing baffles. Improved color rendering balance, color temperature tunability, and a Unified Glare Rating below 9 make BOGGLE especially suitable for workspaces. The curved baffles in black or white present a tailored aesthetic that adds sophistication to the space.

Features

Body

Aluminum.

Finish

Powder cpated.

Baffle

Black or White acrylic.

Drivers

HPF electronic drivers for 120-277V, 347V, (EU 240V).

Tunable White

Provides the ability to change the color appearance of light from warm to neutral to cool, to adapt to the needs of the occupant throughout the course of the day.

PoE

Can be integrated into your data network via Power over Ethernet (PoE) connectivity.

Mechanical

Luminaires mount directly over J box (by others).

Delivered lumens

Delivered lumens & LPW based on 4000K CRI 90+

Integral Emergency system

Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The self contained system includes the inverter module, NiCad batteries, LED charge indicator and test switch (NA only). Not available with a 347V supply.

Reported L70 @25°C (77°F)

>108000 hrs @2400 lms/ft (7900 lm/m)

Estimated L70 @25°C (77°F)

>196000 hrs @2400 lms/ft (7900 lm/m)

Approvals

Damp location (indoor use only).

Design

US Design Patent Pending.

Mounting and Optics

Icon for Ceiling Direct Ceiling Direct
Icon for Direct Direct
Icon for PoE PoE
Icon for Tunable White Tunable White

Downloads

Approvals

  • ETL
  • CE
  • Grounding
  • Damp Location (Indoor Use)
  • Mounting Suited On Flammable Surfaces
  • IP 20
