Bridge™ Suspended

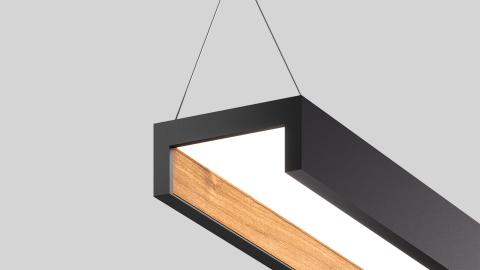

Inspired by the black wooden beams used in old-world bridges, BRIDGE adds a bold new element to architectural design. The U-shaped profile ties together interior structures and furnishings. Our innovative light emission design provides glare-free, even illumination with optional indirect light. For a cosmetic accent, the inside trim is available with 5 luxurious finishes. BRIDGE is ideal for designs with exposed architectural elements and for spaces that call for low-glare functional lighting.

DOWNLOAD SPEC SHEET

Tech Specs

Body

Aluminum.

Finish

Powder coated.

Suspension

Steel cables.

Power cable

Silver braided.

Remote Emergency system

Emergency option provides a 1.5 hour (3hours for EU) emergency lighting facility. The remote system includes the inverter module, NiCad batteries and a remote wall/ceiling LED charge indicator and test switch. Maximum distance between wall/ceiling plate and luminaire is 15' (4.5m). Test switch fits a single gang box (not supplied).

Drivers

Remote, HPF electronic drivers for 120-277V (EU-240V) dimming. Wire size 18 AWG - max distance (from fixture to drivers) 40' (12.2m), wire size 16 AWG - max distance 60' (18.3m), wire size 14 AWG - max distance 90' (27.4m). Drivers must be accessible after installation.

Sensors

Compatible with Avi-On, Casambi, Enlighted, Lutron Vive, nLight, NX Lighting Controls, Osram, Philips, and others. Consult factory.

PoE

Can be integrated into your data network via Power over Ethernet (PoE) connectivity.

Mechanical

Luminaires mount directly over J box (by others).

Diffuser

Opal acrylic.

Reported L70 @25°C (77°F)

> 108,000 hrs @ 1400 lumens/ft (4600 lumens/m)



Estimated L70 @25°C (77°F)

> 196,000 hrs @1400 lumesn/ft (4600 lumens/m)

Delivered lumens

Delivered lumens & LPW based on 4000K CRI 80+

Approvals

Damp Rated.

Designed by

Serge Cornelissen.

Design

US Design Patent Pending.

Approvals

  • ETL
  • CE
  • Grounding
  • Damp Location (Indoor Use)
  • Mounting Suited On Flammable Surfaces
  • IP 20

Mounting & Optics

Icon for Suspended Direct Suspended Direct
Icon for Suspended Direct/Indirect Suspended Direct/Indirect
Icon for Direct Direct
Icon for Dir-Indirect DR1 Dir-Indirect DR1
Icon for Dir-Indirect DR3 Dir-Indirect DR3
Icon for Bios Bios
Icon for PoE PoE
