Bubble Up™

General Specification

Recessed housing: Steel and aluminum suitable for new or existing non insulated construction, drywall or plasterboard ceilings. Luminaires are mounted by cable suspension within the ceiling cavity. Anchoring of cables to load bearing ceiling structure (by others).

Centre disc: For non illuminating center version, drywall disc to be supplied and installed by others. Drywall disc to be painted to match ceiling.

Versions: Recessed luminaires available in three diameters: 685mm/27", 1092mm/43" and 1495mm/59".

Diffusers: Single piece opal acrylic, retained by metal rings and white painted screws.

Drivers: Luminaires supplied with HPF electronic drivers, 120/277V. 0-10V dimming standard for white LEDs.

RGB Drivers/power supplies: Luminaires supplied with electronic drivers/DMX interfaces, 120/277V.

Electrical: Through branch wiring. J box and driver housing easiliy accessible.

Finish: White powder coated.

Delivered Lumens:  Delivered lumens and LPW based on 3000K (min 80 CRI).

See Approvals
Recessed Direct

specify luminaire

Luminaire
Code Light Distribution Diameter Power (LED)
Ring of White LEDs 27" 103W
Ring of White LEDs 43" 168W
Ring of White LEDs 59" 232W
Ring of RGB LEDs 27" 45W
Ring of RGB LEDs 43" 80W
Ring of RGB LEDs 59" 110W

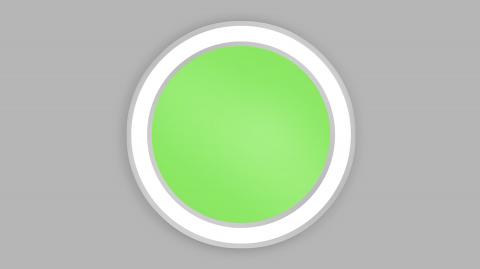

Ring of White LEDs/RGB Center 27" 103W+27W RGB
Ring of White LEDs/RGB Center 43" 168W+55W RGB
Ring of White LEDs/RGB Center 59" 232W+80W RGB

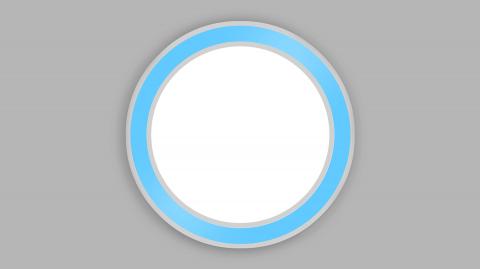

Ring of RGB LEDs/White LED Center 27" 45W RGB+60W
Ring of RGB LEDs/White LED Center 43" 80W RGB+115W
Ring of RGB LEDs/White LED Center 59" 110W RGB+170W

SPECIFY CCT

CCT
3000K
3500K
4000K
