Cerchio II™ Suspended

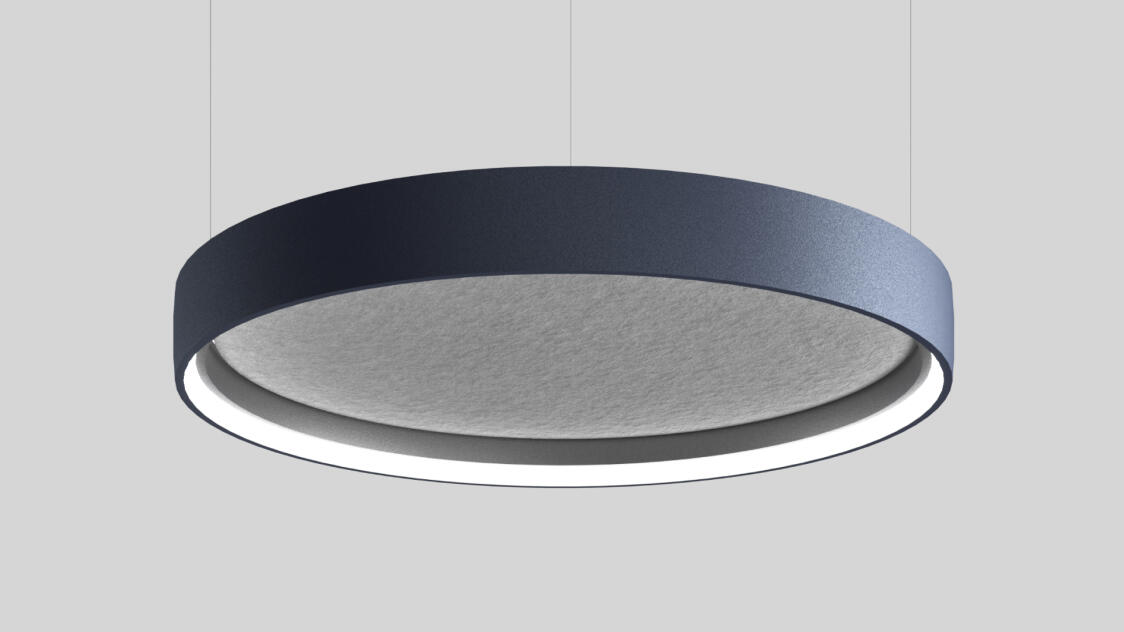

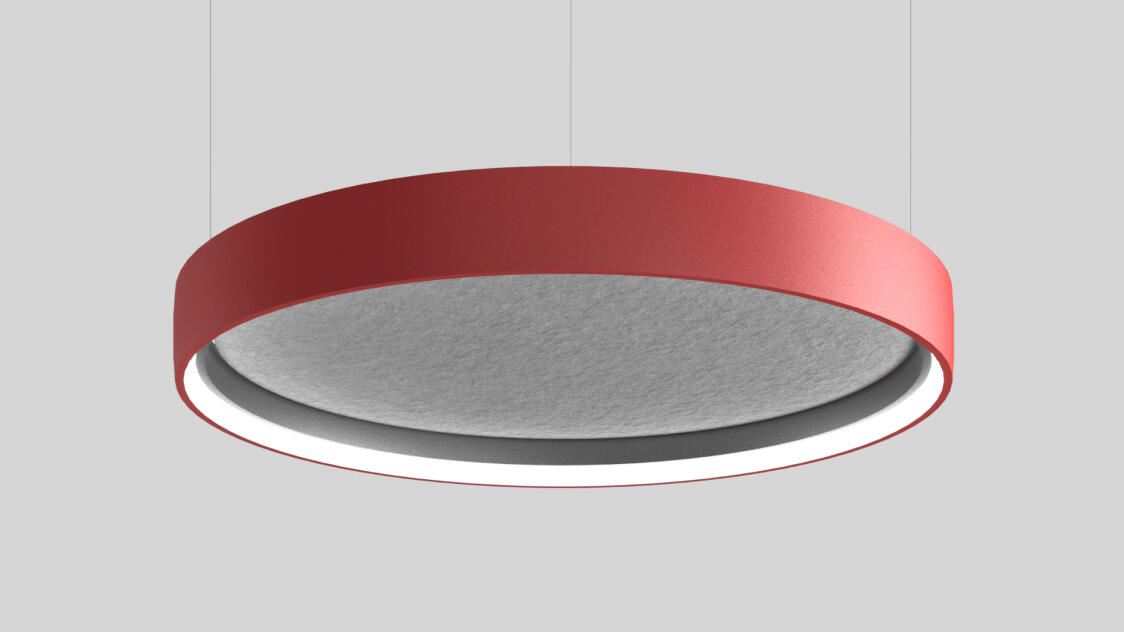

Cerchio II epitomizes contemporary design with elegant clean lines and a floating inner ring that evokes an impression of levity. The outer and inner rings can each have their own finish to make Cerchio II more complementary to surrounding color themes. Cerchio II is also available with an acoustic panel in 6 finishes which adds another decorative dimension while offering sound-absorbing functionality.

DOWNLOAD SPEC SHEET

Tech Specs

Body

Aluminum.

Finish

Powder coated.

Suspension

Stainless steel cables.

Power cable

Silver braided.

Remote emergency

Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The remote system includes the inverter module, NiCad batteries and a remote wall/ceiling LED charge indicator and test switch (NA only) Maximum distance between wall/ceiling plate and luminaire is 4.5m/15’. Test switch fits a single gang box (not supplied).

Remote mounting of drivers

Wire Size 18 AWG - Max distance (from canopy to drivers) 9.5', Wire size 16 AWG - Max distance 19.5', Wire size 14 AWG - Max distance 29.5'. Drivers must be accessible after installation. 5ft(1524mm) and above c/w 2 remote driver boxes and 2 power cords.

Drivers

HPF electronic drivers for 120-277V, 347V (EU-240V). Depending on options selected, driver can be either integral in the canopy or remoted mounted.

Mechanical

Luminaires mount directly over J box (by others - North America only).

Acoustic Panels NRC Rating

0.80

Acoustic Panels Class A fire Rating

ASTM E-84 material.

Acoustic Panels Material

100% recycled polyester fiber (PET).

Acoustic Panels Thickness

9mm (0.5").

PoE

Cerchio II can integrate into your data network via Power over Ethernet (PoE) connectivity.

Sensors

Consult factory regarding sensor compatibility.

L70 @25°C

>50,000 hrs.

Delivered lumens

Delivered lumens & LPW based on 4000K (min 80 CRI).

Approvals

Damp Rated.

Approvals

  • ETL
  • CE
  • Grounding
  • Damp Location (Indoor Use)
  • Mounting Suited On Flammable Surfaces
  • IP 20

Mounting & Optics

Icon for Suspended Direct/Indirect Suspended Direct/Indirect
Icon for Acoustic Acoustic
Icon for Direct-indirect Direct-indirect
Icon for Declare Declare
Icon for PoE PoE
