Cylinder EX™

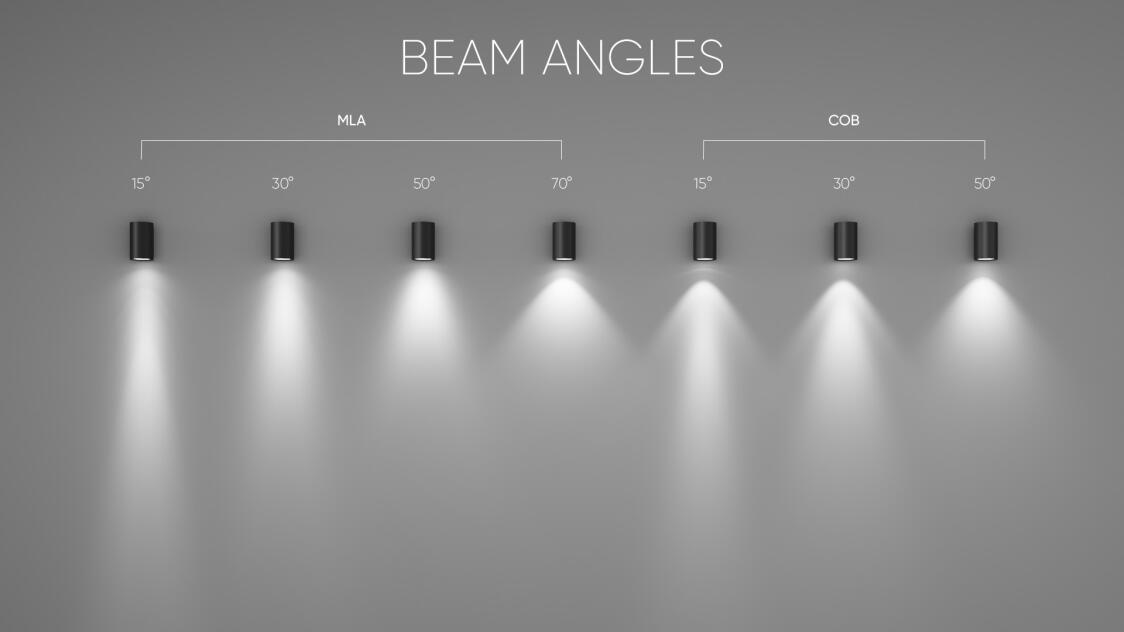

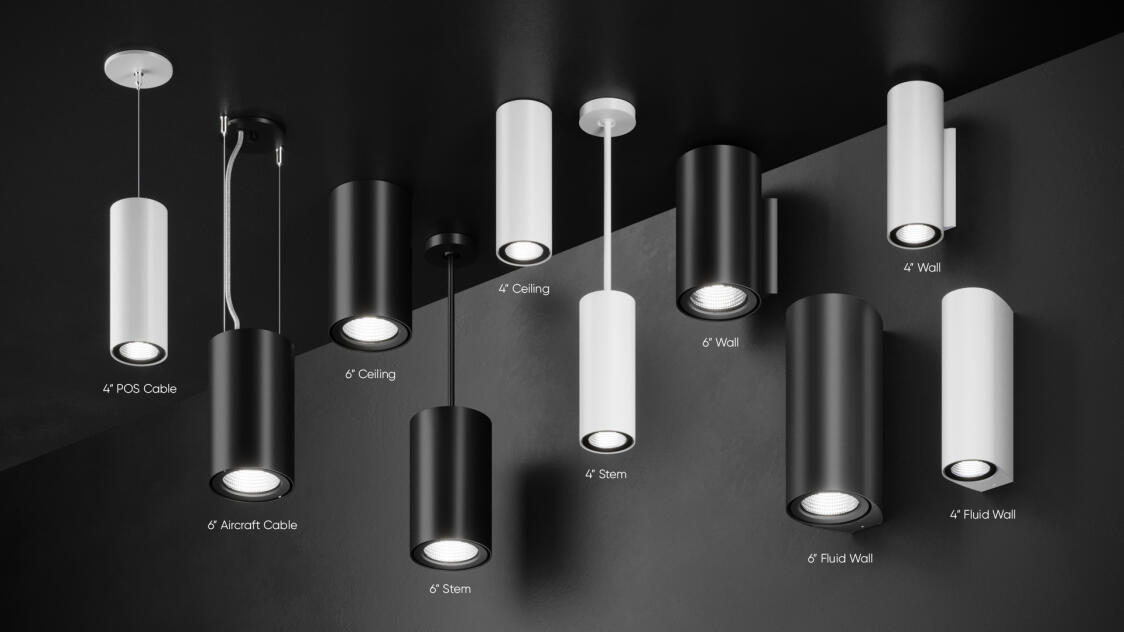

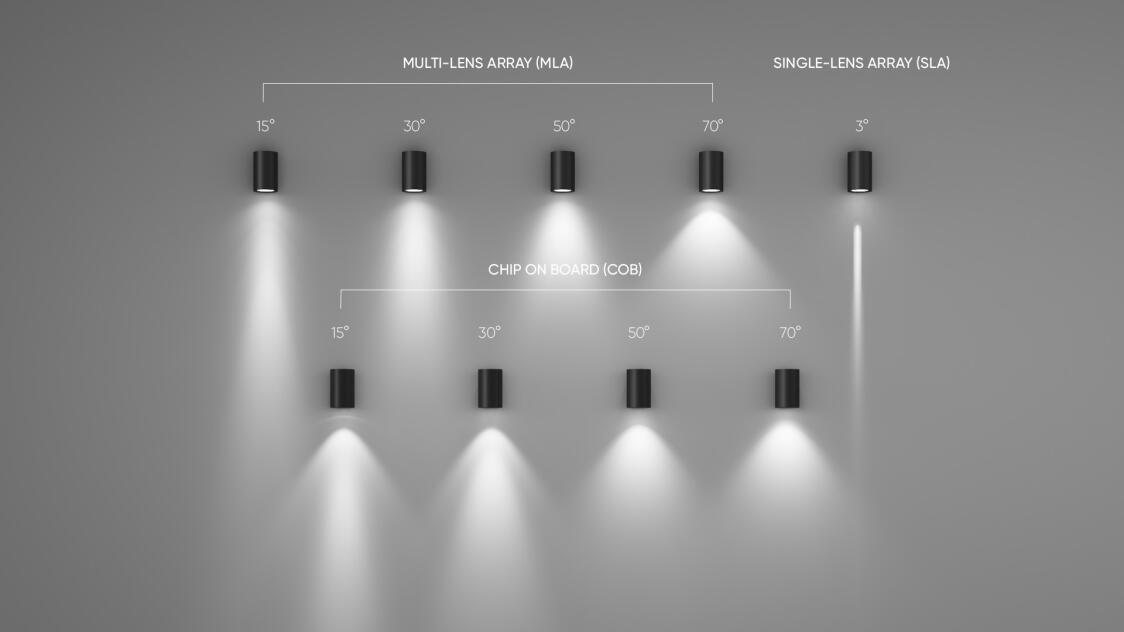

The CYLINDER EX series advances exterior lighting utility with its precision-engineered adjustable optics, meticulously designed to focus light on critical areas like pathways and challenging installation spots. This functionality not only bolsters safety by illuminating essential zones but also enriches the scenic impact.  Featuring a gimbal with a 180-degree tilting range that locks at 10-degree increments, allowing for precise angling, CYLINDER EX incorporates ten advanced optics utilizing three LED technologies—Multi-lens Array, Chip on Board (COB), and Area Optics—to tackle diverse lighting challenges.  The 6-inch diameter cylinder is offered in a suite of mounting options, including ceiling, stem, and wall mount with three bracket styles.  The Classic bracket fits standard 4-inch electrical boxes, while the Narrow Full and Narrow Half brackets are designed for switch boxes, maintaining the cylinder’s minimalist design.  For installations where conduit wire routing is employed, a sleekly designed conduit accessory box is available, facilitating easy integration before or after conduit placement.  Committed to ecological responsibility, CYLINDER EX is Dark Sky Friendly when the direct light option is paired with a CCT of 3000K or less. This ensures minimal light spill and skyglow, safeguarding the nocturnal habitat and contributing to a greener planet.

DOWNLOAD SPEC SHEET

Tech Specs

Housing

Die-cast and extruded aluminum.

External Screws

Stainless steel.

Lens

Clear glass.

Finish

Powder coated.

Drivers

HPF, electronic for 120-277V (EU-240V).

Minimum Starting Temperature

-30°C.

Dark Sky Friendly

Dark Sky Friendly if ordered with 3000K CCT and below. Direct only.

Turtle Friendly

Amber (590nm) for Turtle Friendly compliance.

BUG Rating (Direct Light):

Type II, III, IV:  B1-U0-G1
Type V: B3-U0-G0

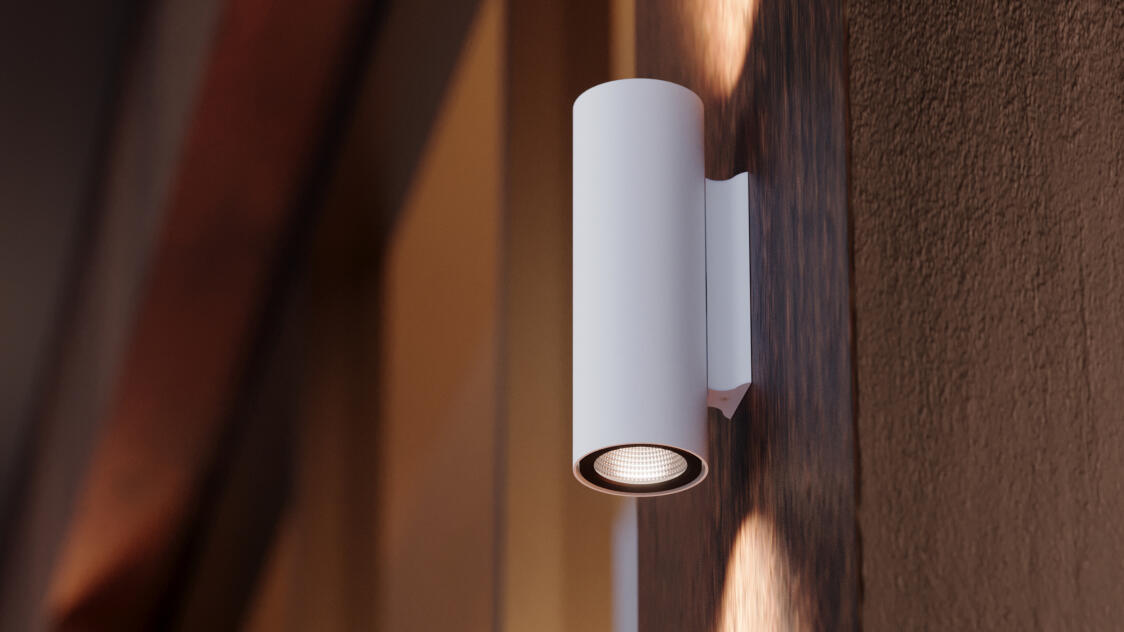

Mounting

The Ceiling, Pendant and Wall Classic versions mount to a 4"x4" junction box (supplied by others).
The Wall Narrow versions mount to a 2"x4" switch box (supplied by others).
Conduit mount is an option for Wall and Ceiling versions, consult factory.

Hardware

Vandal proof hardware included.

Lens

Shatterproof lens available, consult factory.

Delivered Lumens

Delivered lumens & LPW based on 4000K (min 80 CRI).

REPORTED L70 @25°C (77°F)

> 60,000 hrs

Approvals

  • ETL
  • CE
  • Grounding
  • Mounting Suited On Flammable Surfaces
  • Wet Location
  • IP 66

Mounting & Optics

Icon for Suspended Direct Suspended Direct
Icon for Ceiling Direct Ceiling Direct
Icon for Ext-Wall Downlight Ext-Wall Downlight
Icon for Ext-Wall Up/Down Ext-Wall Up/Down
Icon for Ext-Wall Uplight Ext-Wall Uplight
Icon for Type II Type II
Icon for Type III Type III
Icon for 3°
Icon for 15° 15°
Icon for 30° 30°
Icon for 50° 50°
Icon for 70° 70°
Icon for Dark Sky Friendly Dark Sky Friendly
Icon for Turtle Friendly Turtle Friendly

Product Configurator

DR06
