Exy™

WEB PIN™149

General Specification

Body and trim: Steel and aluminum.

Heat sinks: Die cast aluminum.

Finish: Powder coated as specified. Custom paint finishes available to special order.

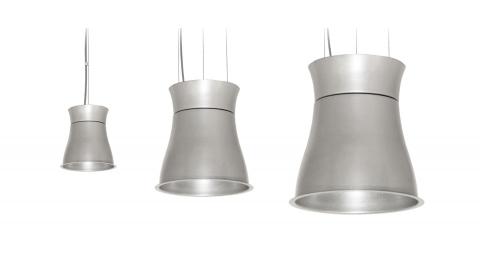

Suspension: Stainless steel cable, small, one cable, medium and large, three cables.

Power cable: Silver braided.

External reflector: Aluminum, painted as specified.

Internal reflector: Matt frosted aluminum finish with facets (26W & 38W only).

Decorative disc/ring: 6mm/14" green tint, acrylic (faux glass) with a polished edge and a sandblasted finish, retained by three stainless steel cylindrical finials.

Drivers: HPF, electronic, 120-277V (EU-240V), 0-10V dimming (1%).

Remote Emergency system:

NA: Emergency option provides a 1.5 hour emergency lighting facility. The remote system includes the inverter module, NiCad batteries and a remote wall/ceiling LED charge indicator and test switch (maximum distance between wall/ceiling plate and luminaire is 4.5m/15’). Test switch fits a single gang box (not supplied).

EU: Remote emergency option provides a 3 hour emergency lighting facility. The self contained system includes the inverter module, NiCad batteries and LED charge indicator (located in the fixture).

Mechanical: Luminaires mount to a junction box (by others - North America only).

L70 @25oC (77oF): > 50,000.

Delivered Lumens: Delivered lumens & LPW based on 3000K (min 80 CRI) for White LEDs only.

See Approvals
Interior - Suspended Direct Interior - Suspended Direct & Indirect

specify luminaire

Code: Size: Power (LED): Direct lms: Indirect lms: LPW:
Small 13W Downlight 930 N/A 76
Small 26W Downlight 1696 N/A 65
Medium 26W Downlight 1733 N/A 66
Medium 38W Downlight 2500 N/A 65
Medium 26W Down/26W Up 1733 1843 69
Medium 38W Down/26W Up 2500 1843 68
Large 26W Downlight 1642 N/A 63
Large 38W Downlight 2369 N/A 62
Large 56W Downlight 3763 N/A 67
Large 26W Down/26W Up 1642 1843 67
Large 38W Down/26W Up 2369 1843 66

Specify CCT

Specify Finish

Specify Dimming

Specify Decorative Options

Not available with small Exy
