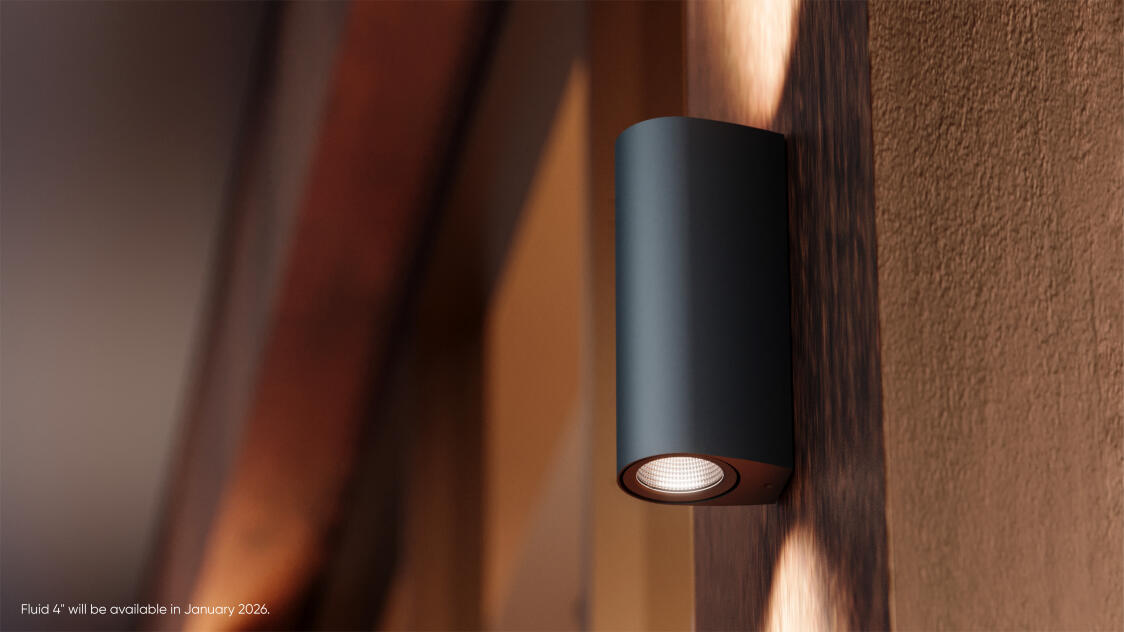

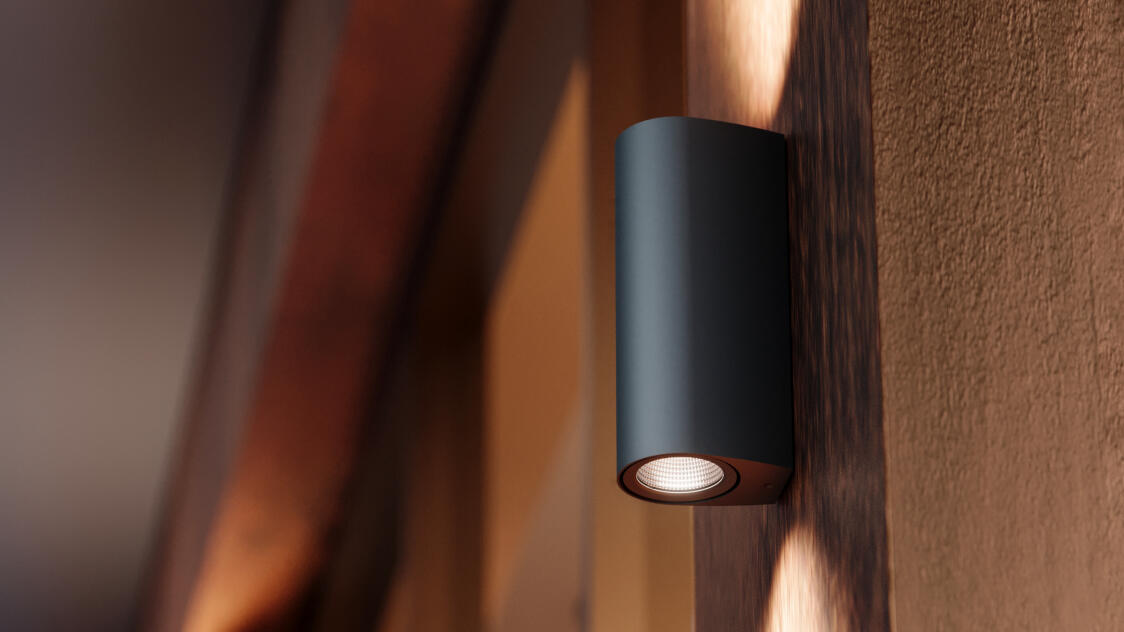

Fluid™

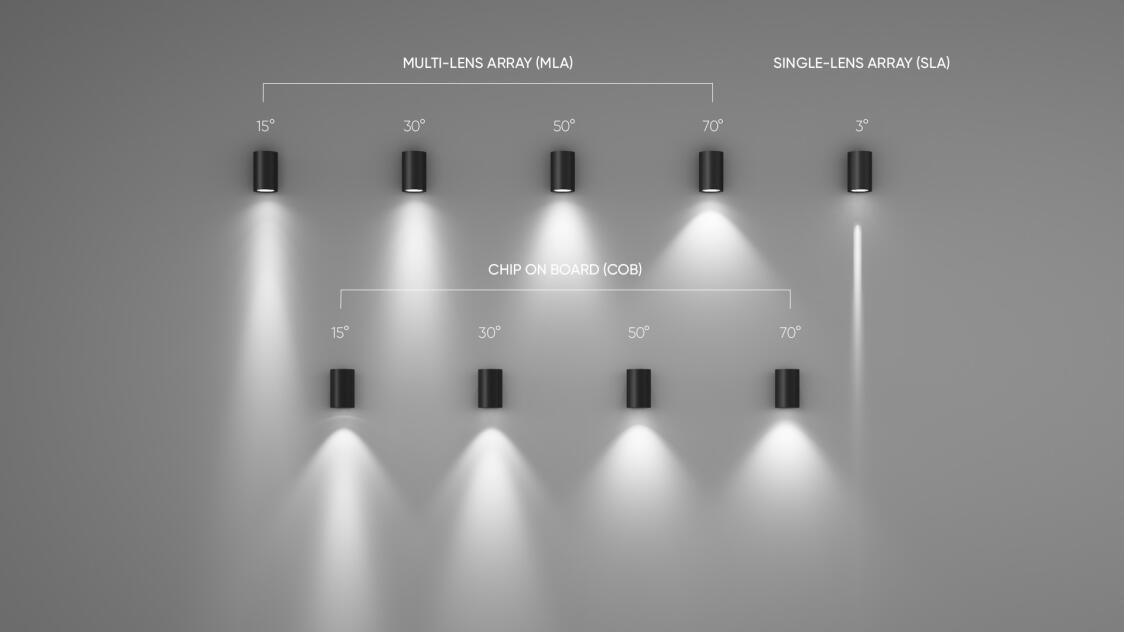

Distinguished by its wall-mount design, FLUID adds sophistication to the cylinder-style design. Its signature tapered form merges effortlessly with the architecture, providing a natural extension to the wall while ensuring precise illumination. Featuring a gimbal with a +/- 30° tilting range that locks at 10° increments, allowing for precise angling, FLUID incorporates ten advanced optics utilizing three LED technologies—Multi-lens Array, Chip on Board (COB), and Area Optics—to tackle diverse lighting challenges. Committed to ecological responsibility, Fluid is Dark Sky Friendly when the direct light option is paired with a CCT of 3000K. This ensures minimal light spill and skyglow, safeguarding the nocturnal habitat and contributing to a greener planet.

DOWNLOAD SPEC SHEET

Imperial
Imperial Metric

Downloads

Tech Specs

Housing

Die-cast and extruded aluminum.

External Screws

Stainless steel.

Lens

Clear glass.

Gaskets

Single piece silicone.

Finish

Powder coated.

Mounting

Fixture mounts to a 2"x4" switch box (supplied by others).

Drivers

HPF, electronic for 120-277V (EU-240V).

Minimum Starting Temperature

-30°C. (when equipped with the arctic driver)

Delivered Lumens

Delivered lumens & LPW based on 4000K (min 80 CRI).

Dark Sky Friendly

Dark Sky Friendly if ordered with 3000K CCT and below. Direct only.

BUG Rating (Direct Light):

Type II, III, IV:  B1-U0-G1
Type V: B3-U0-G0

Turtle Friendly

Amber (590nm) for Turtle Friendly compliance.

Lens

Shatterproof lens available, consult factory.

Hardware

Vandal proof hardware included.

REPORTED L70 @25°C (77°F)

> 60,000 hrs

Approvals

  • ETL
  • CE
  • Grounding
  • Mounting Suited On Flammable Surfaces
  • Wet Location
  • IP 66

Mounting & Optics

Icon for Ext-Wall Downlight Ext-Wall Downlight
Icon for Ext-Wall Up/Down Ext-Wall Up/Down
Icon for Ext-Wall Uplight Ext-Wall Uplight
Icon for Type II Type II
Icon for Type III Type III
Icon for 3° 3°
Icon for 15° 15°
Icon for 30° 30°
Icon for 50° 50°
Icon for 70° 70°
Icon for Dark Sky Friendly Dark Sky Friendly
Icon for Turtle Friendly Turtle Friendly

Product Configurator

DR06

Luminaire

Diameter

Direction

Light Source

CRI

CCT

Distribution Direct

Distribution Indirect

Lumens Direct

Lumens Indirect

Voltage

Dimming

Fixture Finish

Bezel Finish

Product Family

Beta-Calco envisions a world where beauty is a baseline standard for the built environment. We drive towards more dynamic and impressive solutions with robust product development.

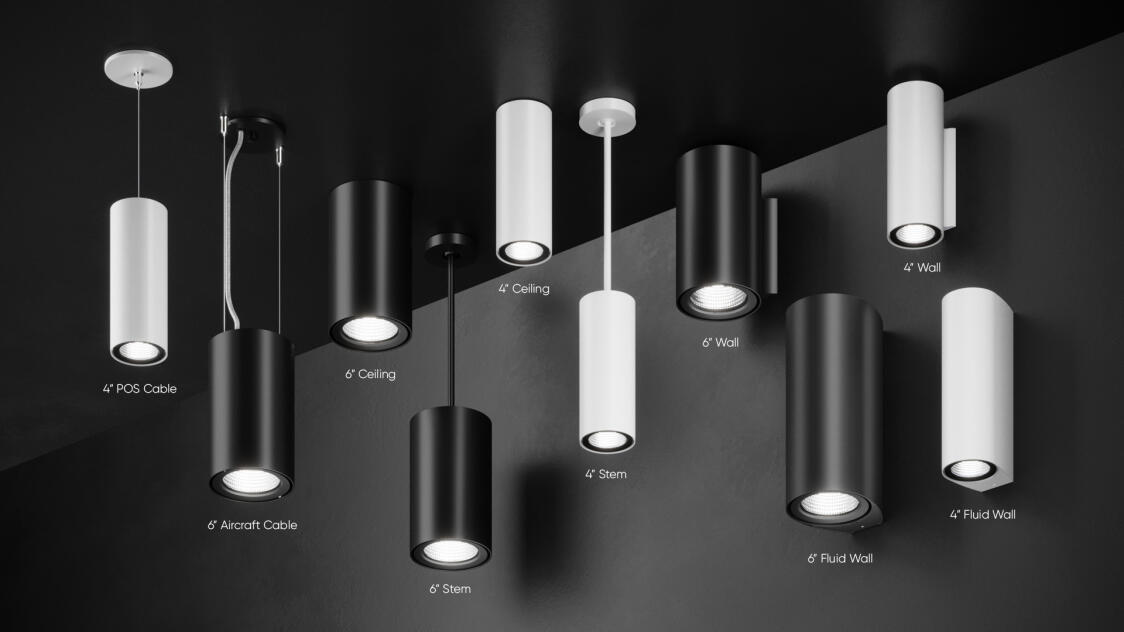

Cylinder™
