Framed™

IP65

WEB PIN™730

General Specification

Product Overview:

  • Low profile body projecting just 2.5” from the wall
  • IP65 / Wet Location
  • Robust construction in aluminum or stainless steel
  • High impact acrylic diffuser with silicon gasket

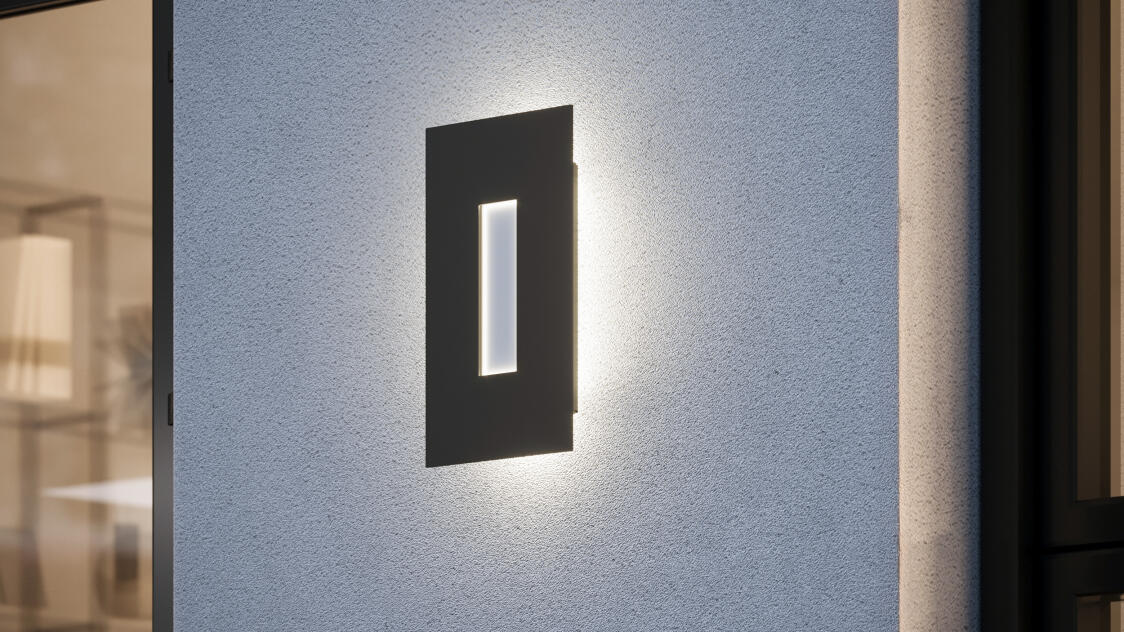

  • Omnidirectional halo light creates a floating effect
  • Illuminated front panel creates a subtle third dimensional feature
  • Available in four sizes, two colour temperatures and multiple fixture and front panel finishes

Housing: Robust aluminum housing.

Finish: Exterior grade, powder coated paint.

Gaskets: One piece silicone.

Reflector: Stainless Steel.

Diffuser: High impact acrylic with silicon gasket.

Drivers: HPF electronic, 120-277V (EU-240V).

Minimum Starting Temperature: -20°C.

Remote Emergency: Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The remote system includes the inverter module, NiCad batteries and a remote wall/ceiling LED charge indicator and test switch (NA only) Maximum distance between wall/ceiling plate and luminaire is 4.5m/15’. Test switch fits a single gang box (not supplied).

Mechanical: Mounts directly over a standard electrical junction box (by others - North America only).

Delivered Lumens: Delivered lumens & LPW based on 3000K (min 80 CRI).

Rating:  IP65 wet location

See Approvals
Ext-Wall (Framed) Ext-Wall (Framed)

Specify Luminaire

Code: Style: Power (LED): Delivered lms: LPW:
Type A 21W 1033 50
Type B 35W 1751 51
Type C 28W 1316 47
Type D 42W 2036 49

Specify CCT

Specify Dimming

Specify Fixture Finish

F39 & F40 have a one time set-up charge regardless of quantity.

Specify Center Panel Finish

F39 & F40 have a one time set-up charge regardless of quantity.

Specify Emergency

Note:  Integral emergency is NOT available in North America
